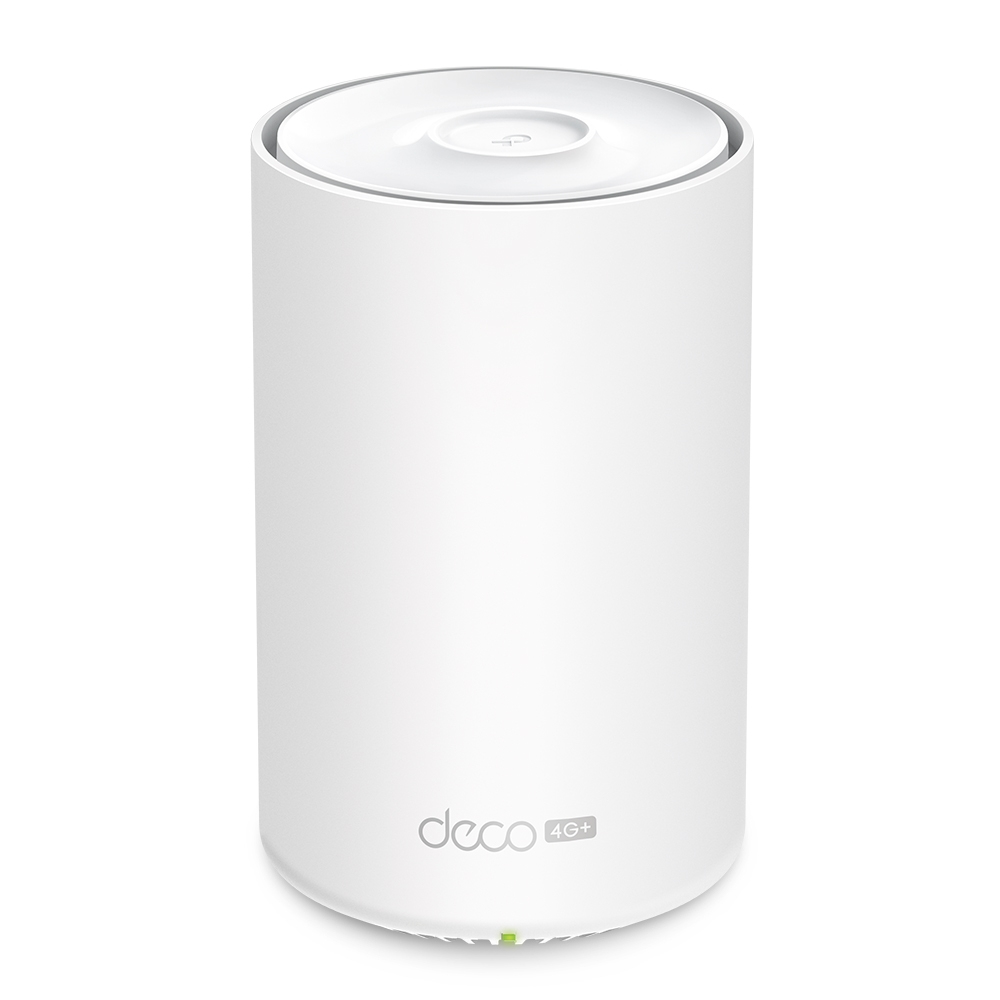

TP-Link Deco X20 4G+ AX1800 Whole Home Mesh System content_copy

Next-generation mesh WiFiEquipped with the latest Wi-Fi 6 technology, transmission speeds are rapidly increased, efficiency is improved and network congestion is minimized when using multiple devices. With the Deco X20, weak signal areas are completely eliminated. No more annoying searches for a stable connection. For greater coverage, simply add more deco units. The Decos work together to form a unified WiFi network. Your phone or tablet will always automatically connect to the Deco unit, which offers you the highest speed as you move around your home.

Highlights

• Fast dual-band transfer speeds up to 1202 Mbit/s (5 GHz) + 574 Mbit/s (2.4 GHz)
• Simultaneous data transfer to multiple devices thanks to OFDMA and MU-MIMO technology
• Seamless WLAN coverage with strong WLAN signals everywhere thanks to Wi-Fi 6.
• Almost no loading time, perfect for gaming, video chatting
• Unified, intelligent network with a WLAN name, uninterrupted WLAN despite movement
• Secure WPA3 encryption standard and TP-Link HomeCare™ Pro for a reliable WLAN connection and robust protection, including antivirus program and Quality of Service (QoS)
• Easy installation thanks to the Deco app

Product type

• Access point
• ear category (ElektroG): relevant, Category 6: small IT and telecommunications technology devices, small IT and telecommunications technology devices B2C

Data transmission

• WLAN standard: IEEE 802.11a - WiFi 2, IEEE 802.11ac - WiFi 5, IEEE 802.11ax - WiFi 6, IEEE 802.11b - WiFi 1, IEEE 802.11g - WiFi 3, IEEE 802.11n - WiFi 4

Basic features

• Color: White
• Height: 114 mm
• Length/Depth: 110 mm
• Width: 110 mm

Scope of delivery

• TP-Link Deco X20 4G+ AX1800
• RJ45 Ethernet cable
• Power supply
• Quick guide

Certificates
Certification	CE, RoHS
Design
Product colour	White
LED indicators	Power
Antenna type	Internal
Antennas quantity	4
Number of devices supported	150
Transmit power	CE: ≤20 dBm (2.4GHz), ≤23 dBm (5GHz)
Reset button
Features
Processor cores	4
Processor frequency	1.5 GHz
Cloud services supported	TP-Link ID
Supported WAN type	Dynamic IP/Static IP/PPPoE/L2TP/PPTP
Operating modes	3G/4G, Router, Access Point
Built-in processor
Quality of Service (QoS) support
Port forwarding
MU-MIMO technology
MIMO
Logistics data
Harmonized System (HS) code	85171800
Mobile network
Mobile network generation	3G, 4G
3G standards	DC-HSPA+, HSPA, UMTS
4G standard	TD-LTE & FDD-LTE
UMTS bands supported	850,900,2100 MHz
4G bands supported	700,800,850,900,1800,2100,2300,2500,2600 MHz
SIM card type	NanoSIM
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Packaging content
Number of products included	1 pc(s)
Number of units included	1 pc(s)
AC adapter included
Ethernet cable
Packaging data
Package width	241 mm
Package depth	213.5 mm
Package height	124 mm
Package weight	1.22 kg
Ports & interfaces

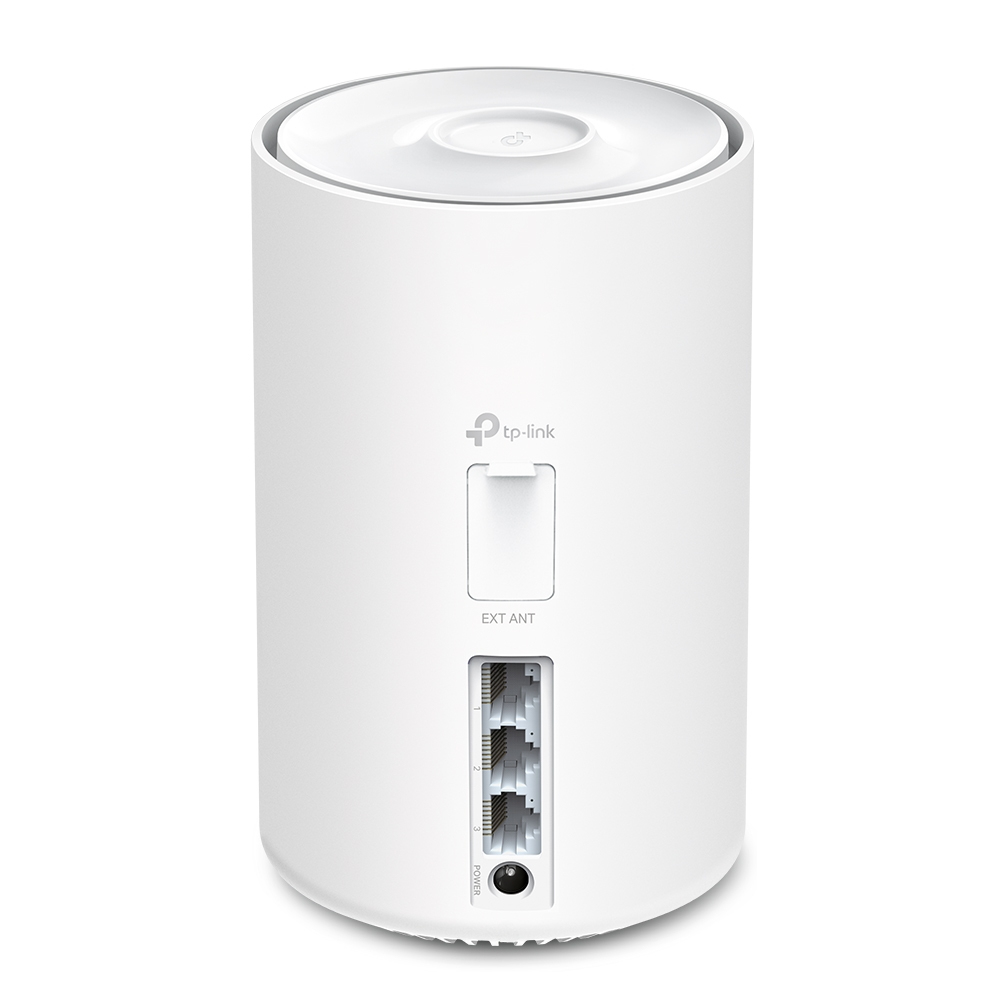

Ethernet LAN (RJ-45) ports	3
Ethernet WAN
DC-in jack
Power
AC input voltage	100 - 240 V
AC adapter input current	0.6 A
AC input frequency	50/60 Hz
AC adapter output voltage	12 V
AC adapter output current	1.5 A
Protocols
Supported network protocols (IPv6)	Y
Weight & dimensions
Width	105 mm
Depth	105 mm
Height	167 mm
Wireless LAN features
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN data transfer rate (first band)	574 Mbit/s
WLAN data transfer rate (second band)	1201 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Security algorithms	WPA, WPA-PSK, WPA3
Number of guest networks (5 GHz)	1
Number of guest networks (2.4 GHz)	1
Point-to-point protocol over Ethernet (PPPoE)
Dynamic IP
Static IP
Dynamic DNS (DDNS)
Guest access

---
