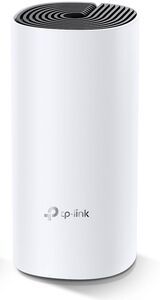

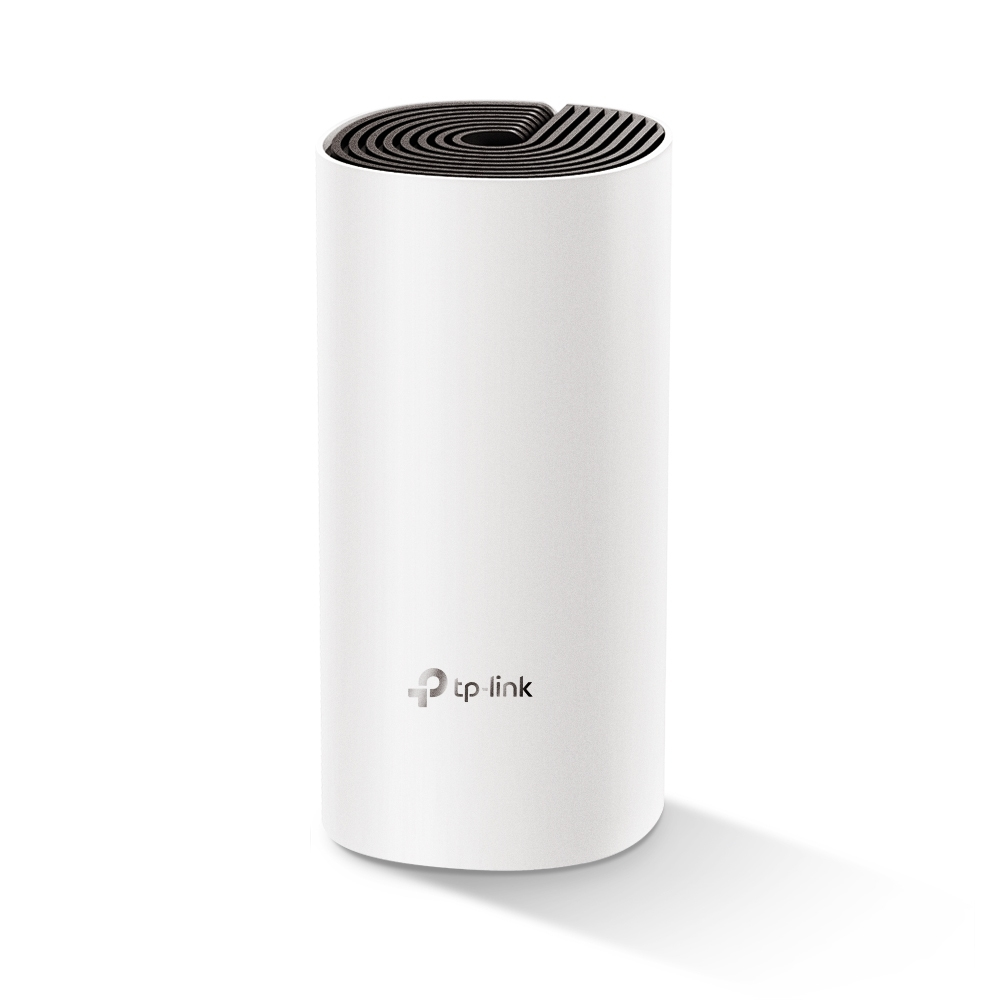

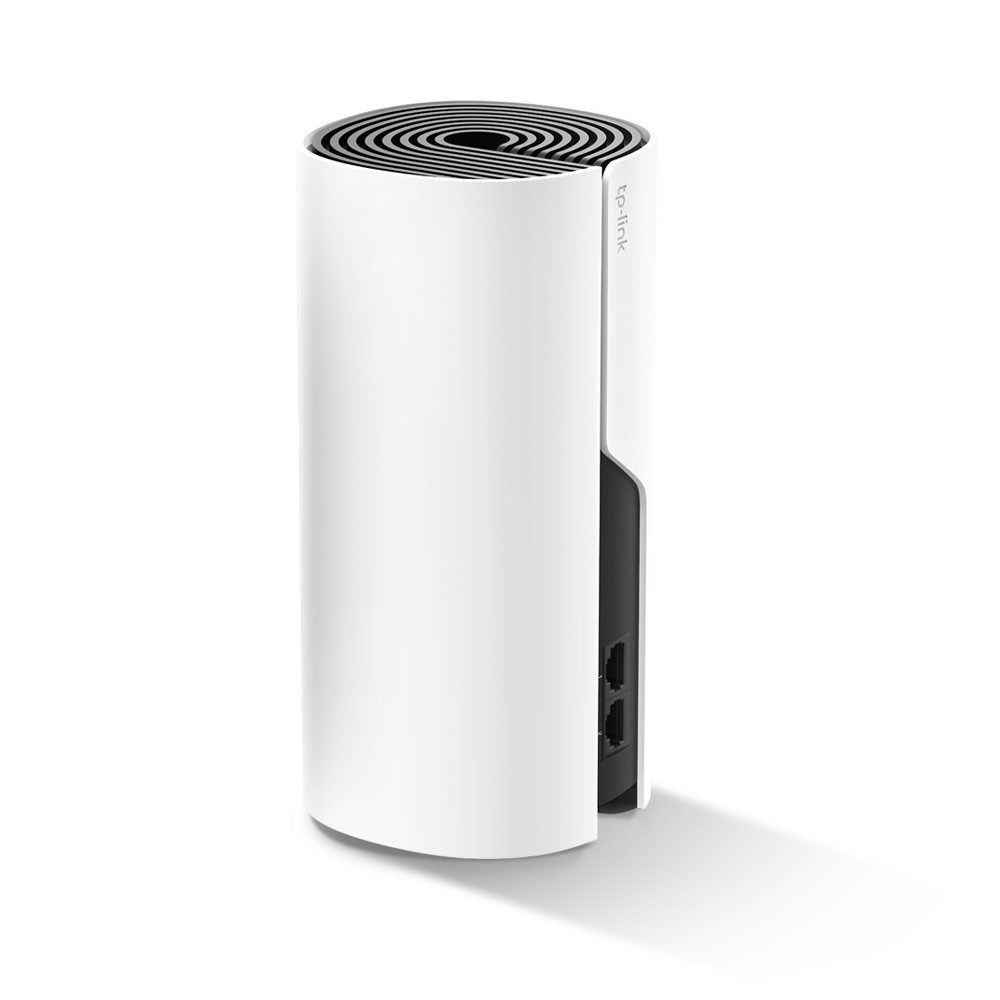

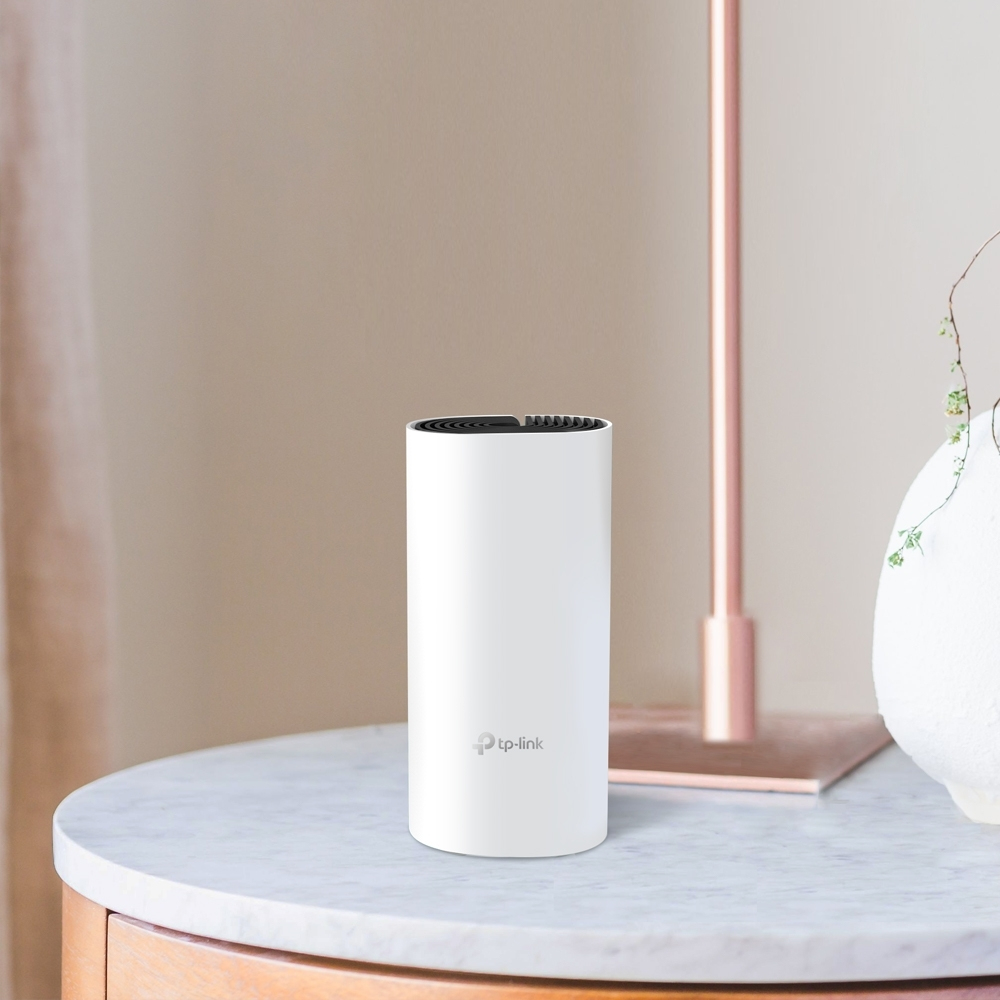

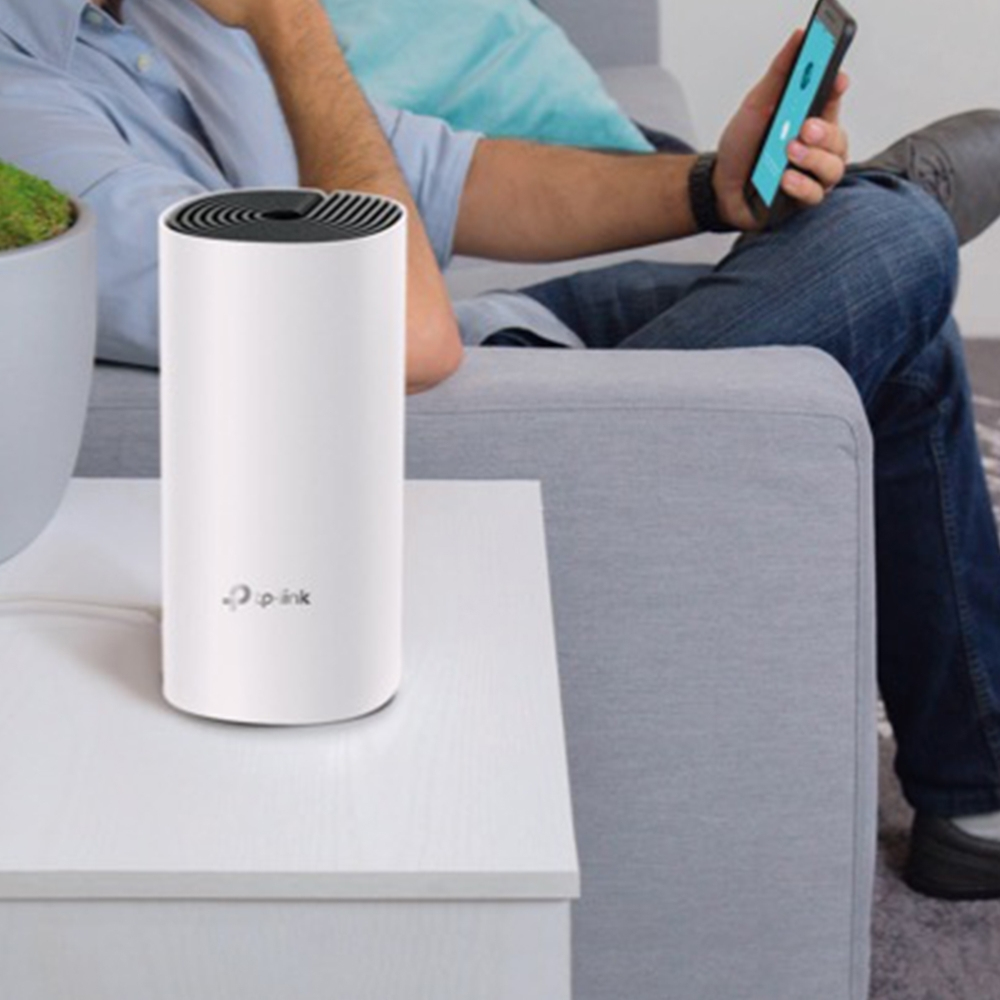

TP-Link DECO M4(1-PACK) Deco M4 (1er Pack) AC1200 Whole-Home WLAN Access Point content_copy

The Deco units work together to form a unified WiFi network. Your phone or tablet will always automatically connect to the Deco unit, which offers you the highest speed as you move around your home.
Thanks to 802.11ac Wi-Fi technology, which is three times faster than the speed of the previous generation, Deco can provide lag-free connections for more than 100 devices.
Thanks to its flexible multifunctionality, the Deco M4 can be used not only as a router, but also as an access point and repeater. Choose a mode according to your needs.

Highlights

• Complete Wi-Fi home network solution
• Deco Mesh technology - all devices in a unified home network work together under the same network name
• Fast and stable connection
• Optimizes data traffic even on busy networks
• Comprehensive parental controls enable a safe Wi-Fi experience for all family members
• Easy setup thanks to the Deco app

Product type

• Access point
• ear category (ElektroG): relevant, Category 6: small IT and telecommunications devices, Small IT and telecommunications devices B2C

Specifications

• Operating temperature max: 40 °C
• Operating temperature min: 0 °C
• Area of application: Indoor

Connections

• Connection: RJ45

Power supply

• Power supply: external

Antenna

• Antenna technology: MIMO
• Reception standard: WLAN
• Mounting type: table mounting, wall

Data transmission

• WLAN standard : IEEE 802.11a - WiFi 2, IEEE 802.11b - WiFi 1, IEEE 802.11g - WiFi 3, IEEE 802.11n - WiFi 4, IEEE 802.11ac - WiFi 5

Basic features

• Color: White
• Height: 190.5 mm
• Length/Depth : 90.7 mm
• Width: 90.7 mm

Scope of delivery

• TP-Link Deco M4 (pack of 1) AC1200 Whole-Home WLAN access point
• RJ45 Ethernet cable
• power supply
• quick start guide

Certificates
Compliance certificates	RoHS, CE
Certification	FCC, IC, NCC, BSMI, IDA, RCM, JPA, JRF, VCCI, KC
Design
Product type	Mesh router
Product colour	White
LED indicators	Power, Status
Antenna type	Internal
Antennas quantity	2
Reset button
Features
Firewall security	SPI
Mobile operating systems supported	Android 4.4, Android 5.0, Android 5.1, Android 6.0, Android 7.0, Android 7.1, Android 7.1.2, Android 8.0, Android 9.0, iOS 10.0, iOS 11.0, iOS 11.4, iOS 12, iOS 13, iOS 9.0, iOS 9.1, iOS 9.2, iOS 9.3
Quality of Service (QoS) support
Port forwarding
BeamForming
DHCP client
DHCP server
Parental control
Logistics data
Harmonized System (HS) code	85171800
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Packaging content
Number of products included	1 pc(s)
Number of units included	1 pc(s)
AC adapter included
Ethernet cable
Packaging data
Package width	225 mm
Package depth	241 mm
Package height	105 mm
Package weight	950 g
Ports & interfaces
Ethernet LAN (RJ-45) ports	2
DC-in jack
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
AC adapter output voltage	12 V
AC adapter output current	1.2 A
Sustainability
Sustainability compliance
Weight & dimensions
Width	90.7 mm
Depth	90.7 mm
Height	190 mm
Weight	360 g
Wireless LAN features
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	1167 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
WLAN data transfer rate (second band)	867 Mbit/s
Security algorithms	WPA-PSK, WPA2-PSK
Number of guest networks (5 GHz)	1
Number of guest networks (2.4 GHz)	1
Dynamic IP
Static IP
Dynamic DNS (DDNS)
Guest access

---
