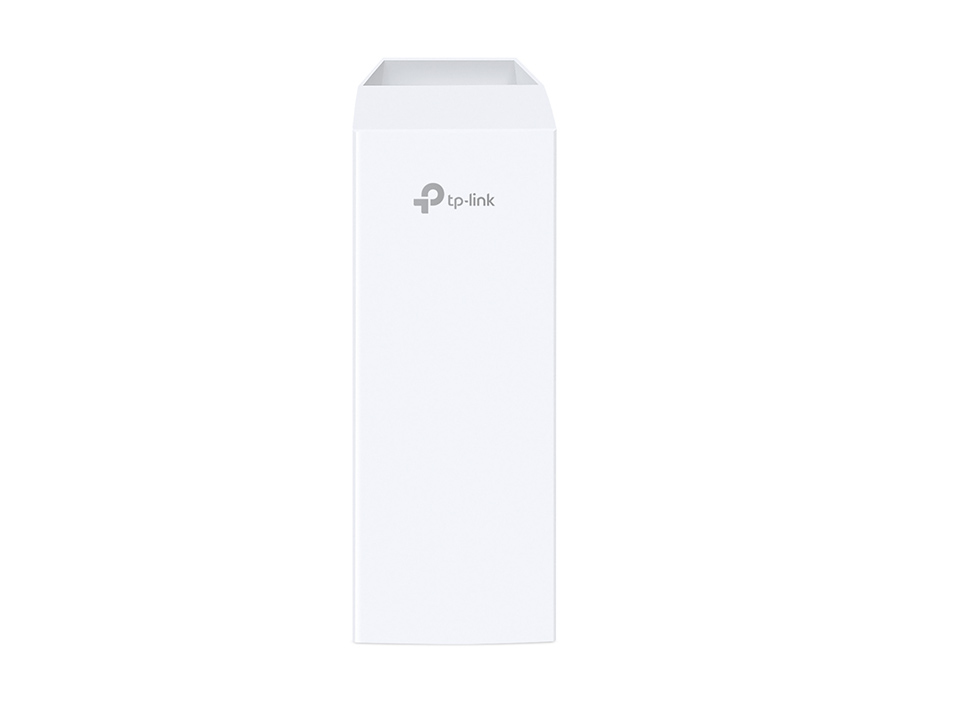

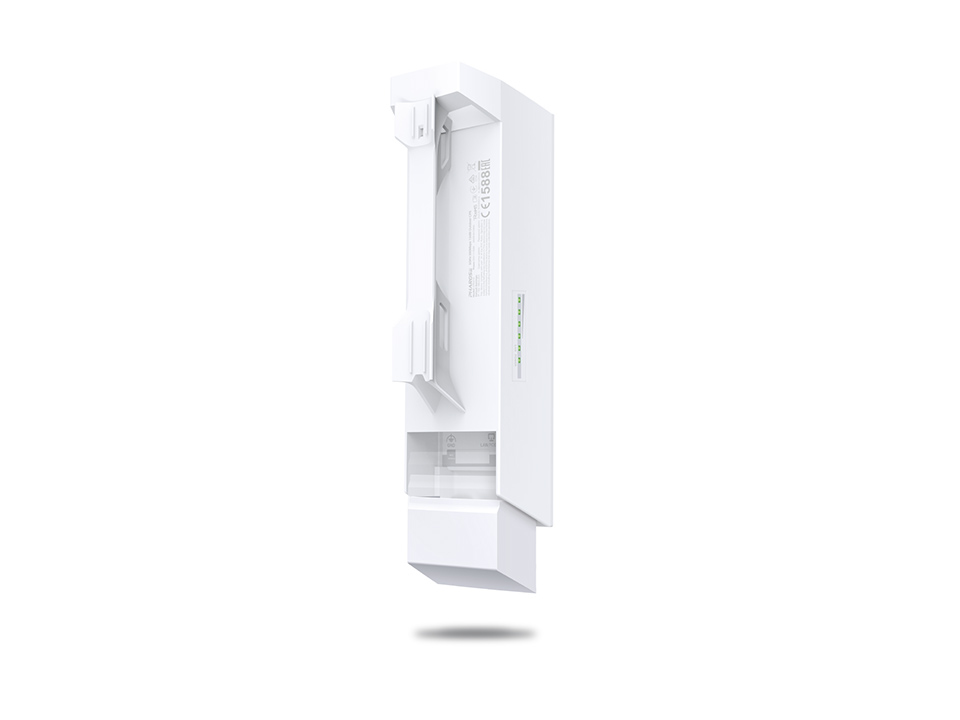

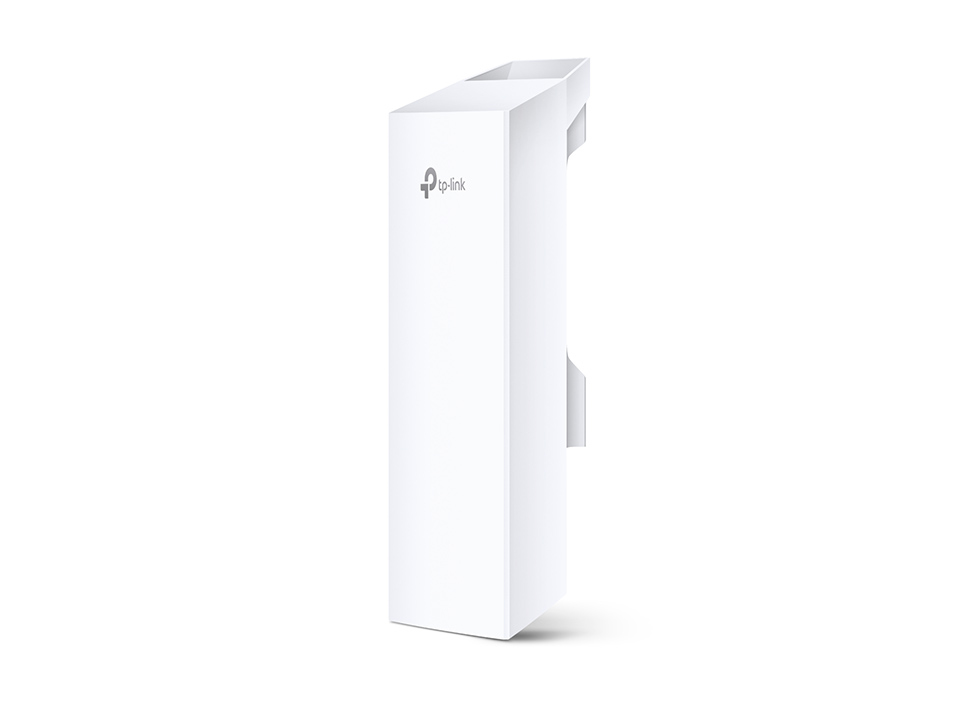

TP-LINK WLAN 300MBit Access Point 2,4GHz CPE210 content_copy

TP-LINK s 2.4GHz 300Mbit / s 9dBi outdoor Access Point CPE210 is the cost-effective alternative for wireless outdoor networks. With its central management application makes it ideal for point-to-point, point-to-multipoint and area-wide applications. Professional performance combined with user-friendly design make the CPE210 an ideal choice for business and private users.

Highlights

• 2 internal dual polarized 9dBi-directional antennas for 2 × 2 MIMO
• transmit power up to 500mW (27dBm) for large transmission distances
• Suitable for long-distance transmissions (further than 5km)
• TP-LINK s Pharos MAXtream-TDMA (Time-Division- Multiple Access) technique improves throughput, transmission capacity and latency, ideal for PTMP applications
• Centralized management system Pharos Control
• Operating modes: AP / Client / Repeater / AP-Router / AP Client Router (WISP Client)
• Supports passive PoE up to 60m and a remote reboot> antenna characteristics - db gain: 9 dB
• WIFI

Interfaces

• WIFI
• Wi-Fi IEEE 802.11b
• IEEE 802.11g wireless standard
• WLAN IEEE 802.11n standard

Data Transfer

• Up to 300 Mbit / s transfer rate

Memory

• 64 MB RAM> System Connections - Number of Ethernet ports 10/100 Mbit / s: 2

Basic Properties

• Color white
• Height: 224 mm
• Width: 79 mm
• Depth: 60 mm

Technical description

• Up to 300Mbps (40MHz, dynamic)
• Up to 144,4Mbps (20MHz, dynamic)
• Up to 72,2Mbps (10MHz, dynamic)
• Up to 36,1Mbps (5MHz,
dynamic)

Wi-Fi configuration options

• Pharos MAXtream- TDMA technology
• 802.11b / g / n
• channel width: 5, 10, 20 or 40MHz
• Automatic channel selection
• Transmission Power Control
• Dynamic Frequency Selection (DFS)
• WDS on / off
• Security: WPA / WPA2, WPA-PSK / WPA2-PSK (AES / TKIP), WEP with 64, 128 or 152 bits
• SSID broadcast controllable
• Multi-SSID with VLAN tagging (only in AP mode)
• configurable distance setting / ACK timeout
• MAC address filtering
• Ortungsintervall/RTS-Grenzwert/Fragmentierungsgrenzwert/DTIM-Intervall/AP-Isolierung/Short-GI/WiFi-Multimedia (WMM)

Delivery

• Outdoor Wireless Access Point
• Adapters Passive PoE (24V / 1A)
• cable ties for pole mounting
• voltage cables
• Installation Instructions

Antenna
Antenna type	Internal
Antenna direction type	Directional
Antenna gain level (max)	9 dBi
Polarization	Dual polarization
Certificates
Certification	CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark CE, FCC, RoHS
Design
Placement	Pole
Product colour	White
International Protection (IP) code	IPX5
LED indicators	Status
Reset button
Features
Maximum data transfer rate	300 Mbit/s
Frequency band	2.4 - 2.483 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum outdoor range	5000 m
2.4 GHz
5 GHz
6 GHz
Automatic channel selection
Automatic channel scanning
MIMO
VLAN support
Wireless isolation
Dynamic Frequency Selection (DFS)
Management features
Management platform	Pharos Control
Web-based management
Firmware upgradeable
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-30 - 70 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 95%
Packaging content
Quantity per pack	1 pc(s)
Cables included	AC
Mounting kit
Packaging data
Package width	132 mm
Package depth	270 mm
Package height	106 mm
Package weight	760 g
Performance
Processor model	Qualcomm Atheros
Processor frequency	560 MHz
Processor architecture	MIPS 74Kc
Flash memory	8 MB
Internal memory	64 MB
Built-in processor
Ports & interfaces
Ethernet LAN (RJ-45) ports	2
DC-in jack
Power
Power over Ethernet (PoE) type supported	Passive PoE
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Output voltage	24 V
Output current	0.25 A
Power over Ethernet (PoE)
Protocols
Universal Plug and Play (UPnP)
Security
Security algorithms	AES, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK
Service Set Identifier (SSID) features	SSID broadcast, SSID broadcast on/off
MAC address filtering
IGMP snooping
Auto Wireless Distribution System (WDS)
Weight & dimensions
Width	224 mm
Depth	79 mm
Height	60 mm

---
