TP-Link WLAN router Archer TXE75E (AXE5400/Tri-Band) content_copy

Archer TXE75E arms your PC with the newly opened 6 GHz band and unleashes the full potential of your WLAN 6E router. Enjoy unhindered streaming in the 6GHz band - exclusively for WiFi 6E devices. This prevents slowdowns and interference from older devices. Archer TXE75E takes your PC's Wi-Fi reception to the next level with the revolutionary combination of OFDMA and MU-MIMO. This ensures the efficiency of your PC's WiFi connection by allowing more devices to communicate with your router at the same time instead of waiting for data in turns.

Highlights

• Seamless streaming - Increase overall speeds up to 2402 Mbps (6 GHz) + 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
• Next-Gen WiFi 6E - Connect with the newly opened 6 GHz band for more bandwidth and faster speeds
• The latest Intel WiFi 6E chipset reduces latency and prevents dropouts
• Wider signal coverage - Multi-directional antennas with magnetized base are designed for optimal signal reception
• The latest Bluetooth technology 5.2 achieves faster speeds and broader coverage than ever before
• Improved security - WPA3 provides the latest security enhancements for personal password protection
• Backwards compatible - Full support for 802.11a/b/g/n/ac/ax standards

Product type

• Network component
• ear category (ElektroG): relevant, Category 5: Small devices < 50 cm (all pages), small devices B2C

Specifications

• Area of application: Indoor

Basic properties

• Color: Black, Red
• Height: 120.8 mm
• Length/Depth: 21.5 mm
• Width: 95.2 mm

Scope of delivery

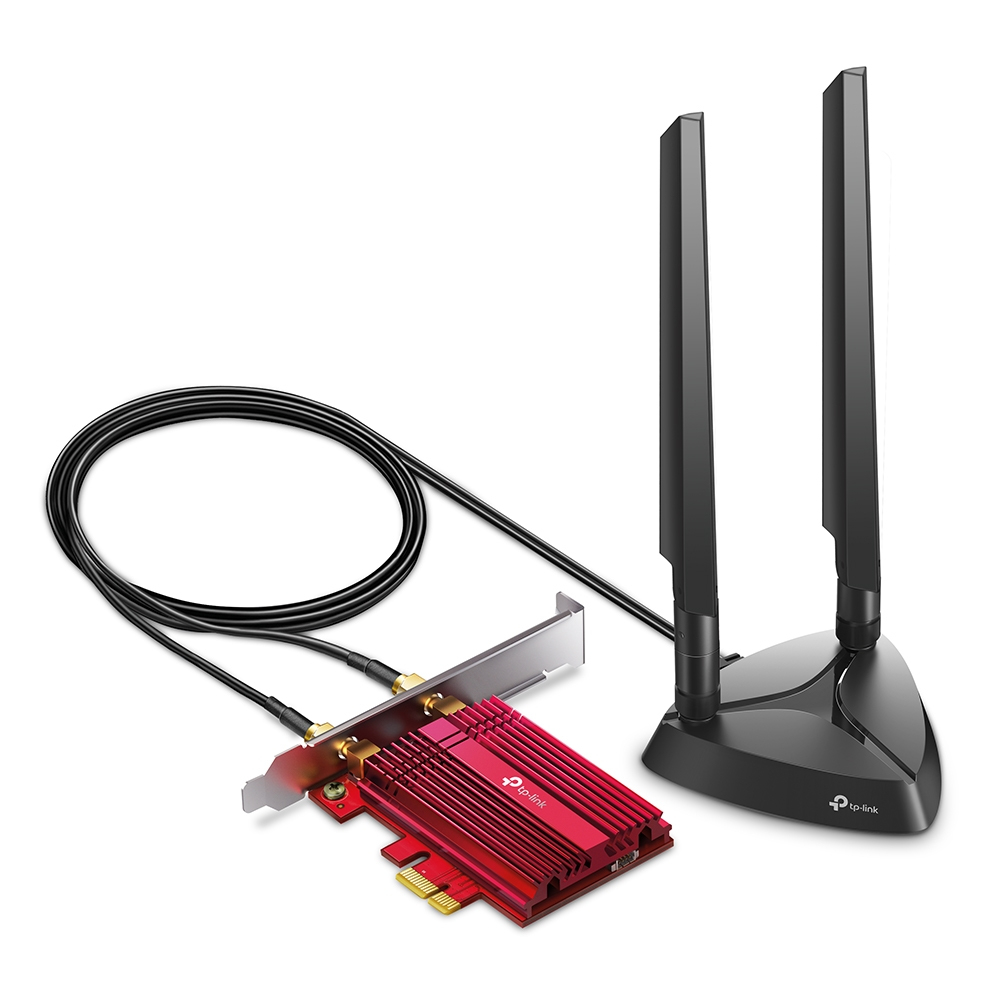

• TP-Link Archer TXE75E AXE5400
• Magnetized antenna base with RF cable (1 m)
• 2x high-performance antenna

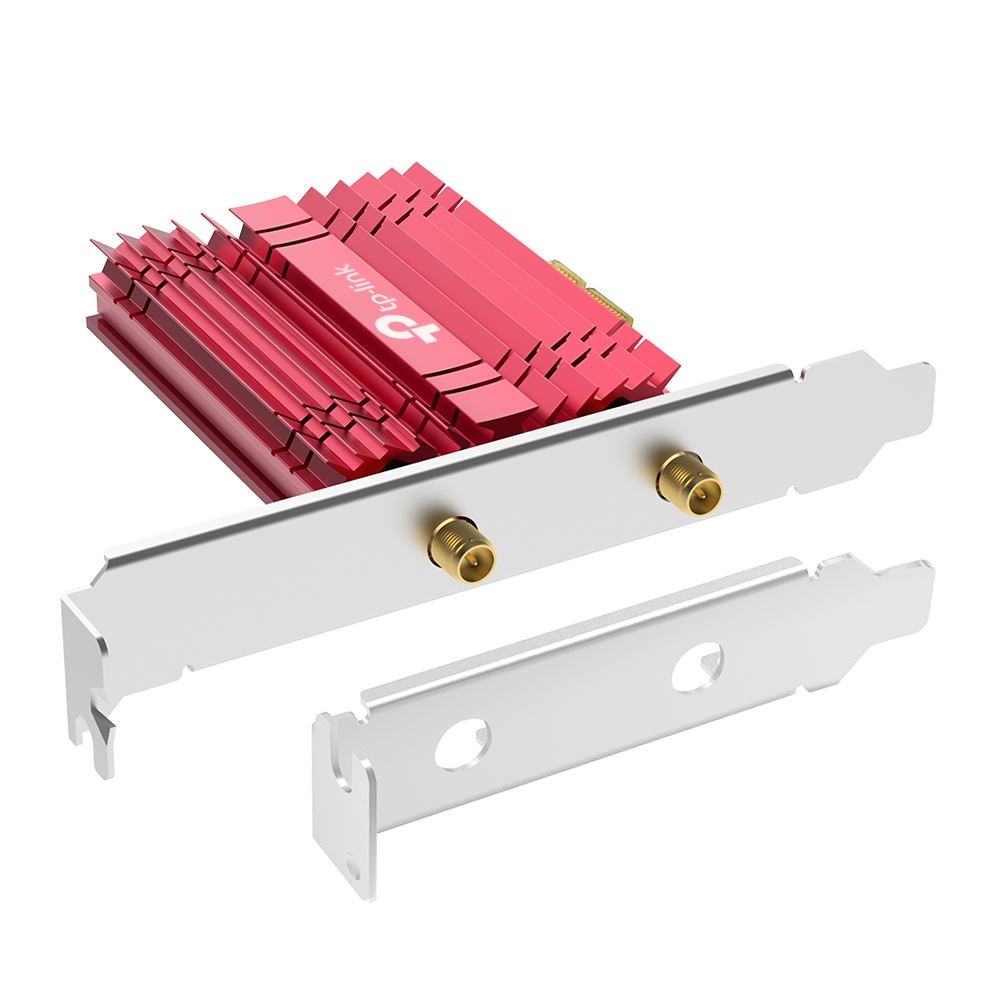

• Low-profile mount
• Bluetooth header cable
• Quick start guide

Design
Component for	PC
Product colour	Black, Red
Antenna design	External
Transmitting power (FCC)	5 GHz: 20dBm, 2.4 GHz: 20dBm, 6 GHz: 12dBm
Operating modes	Infrastructure mode
Internal
Antenna
Logistics data
Harmonized System (HS) code	85176990
Network
Maximum data transfer rate	5400 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
WLAN data transfer rates supported	11,54,300,1732,2402 Mbit/s
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3
Bluetooth version	5.2
Wi-Fi
Bluetooth
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Packaging content
Mounting brackets included
Resource CD
Bluetooth header cable
Quick installation guide
Packaging data
Package width	271.5 mm
Package depth	216.5 mm
Package height	48.5 mm
Package weight	480 g
Ports & interfaces
Connectivity technology	Wireless
Host interface	PCI Express
Interface	WLAN / Bluetooth
Sustainability
Sustainability compliance
System requirements
Windows operating systems supported	Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64, Windows 11 Enterprise x64, Windows 11 x64
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Weight & dimensions
Width	95.2 mm
Depth	120.8 mm
Height	21.5 mm

---
