TP-Link WL adapter Archer TX3000E (AX3000/Bluetooth adapter) content_copy

Wi-Fi 6 takes your network to another level. With ultra-fast speed, less charging time and uninterrupted connection, enjoy hassle-free Wi-Fi.
The combination of OFDMA and MU-MIMO technology enables greater inclusion of connected devices. OFDMA assigns you unused channels and thereby optimizes the connection.
The two high-gain multi-directional antennas ensure an even greater range and more stable connection. With the magnetic base you can easily place the antennas on the table and always find the best reception signal.

Highlights

• Stylish and reliable Wi-Fi 6 PCIe adapter
• WiFi 6 speeds up to 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz
• Lag-free WiFi connection with 75% less loading time
• Two multi -Directional antennas with magnetic base for optimal signal reception
• Fast Bluetooth 5.0 with greater coverage
• Advanced security for your WLAN connection thanks to the WPA3 encryption standard
• Elegant design
• The special heat sink in conjunction with gold-plated PCIe connectors is guaranteed to work stably and reliably, especially in hot operating environments
• Backwards compatible
• Also supports 802.11ac/a/b/g/n standard

product type

• network component
• ear category (ElektroG): relevant, category 5: small devices < 50 cm (all sides), small devices B2C

basic properties

• color: black, red
• Height: 21.5 mm
• Length/Depth: 120.8 mm
• Width: 95.2 mm

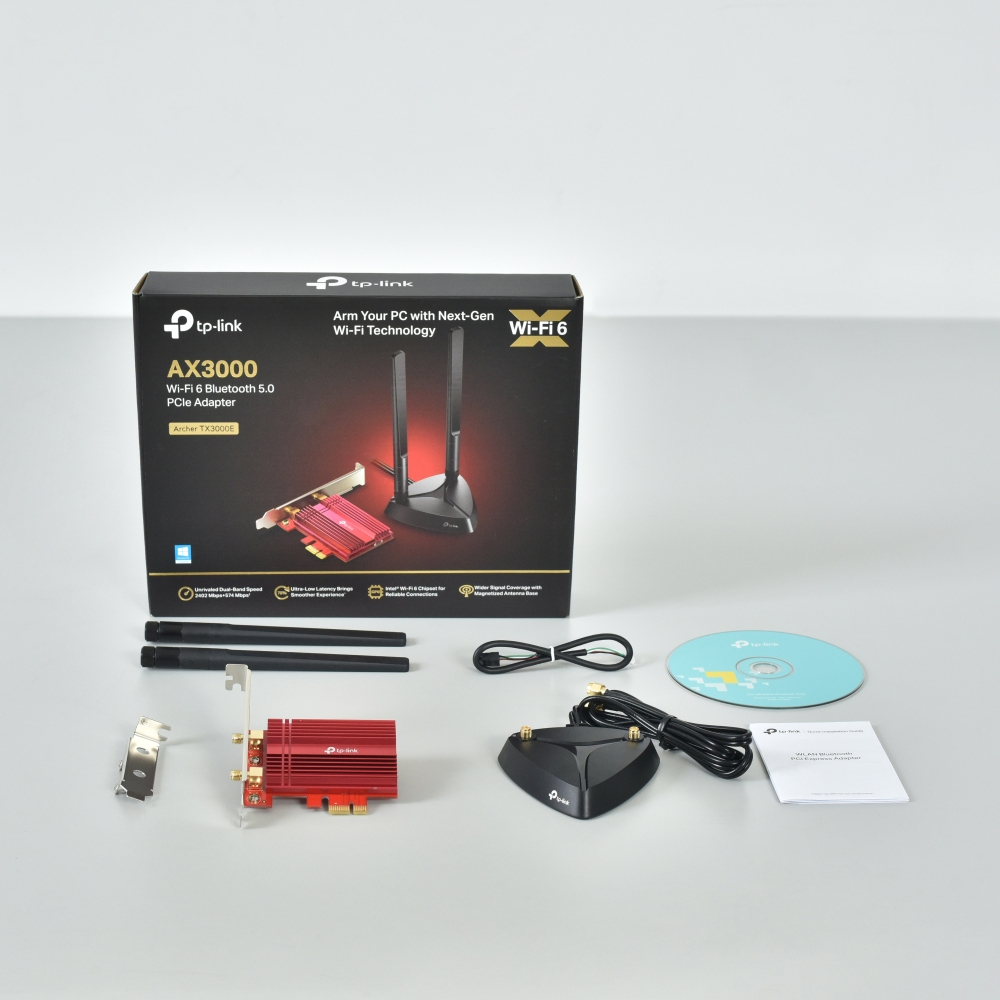

Scope of delivery

• TP-Link Archer TX3000E AX3000 Wi-Fi 6 Bluetooth 5.0 PCIe adapter
• Magnetic antenna base with cable (1 m)
• 2 x high gain -Antennas (5 dBi)
• Low-Profile Bracket
• Bluetooth Header Cable
• Quick Installation Guide
• Resource CD

Design
Component for	PC
Product colour	Black, Red
Antenna design	External
Transmitting power (CE)	23 dBm
Transmitting power (FCC)	27 dBm
Chipset	Intel Wi-Fi 6
Receiver sensitivity	5 GHz : 11ax HT160：-56.25dBm 11ax HT80: -59dBm 11ax HT40: -62.25dBm 11ax HT20: -65dBm 11ac HT160：-62dBm 11ac HT80: -65.5dBm 11ac HT40: -69.75dBm 11ac HT20: -73.75dBm 11n HT40: -74.5dBm 11n HT20: -77.5dBm 11a 54Mbps: -77.75dBm 11a 6Mbps: -94.5dBm 2.4GHz : 11ax HT40: -60.75dBm 11ax HT20: -63.75dBm 11n HT40: -73dBm 11n HT20: -76.25dBm 11g 54Mbps: -76.5dBm 11b 11Mbps: -89dBm
Operating modes	Infrastructure mode
Internal
Antenna
Logistics data
Harmonized System (HS) code	85176990
Network
Maximum data transfer rate	2402 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Frequency range	2.4 - 5 GHz
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN data transfer rates supported	54,300,574,1733,2402 Mbit/s
Modulation	16-QAM, 64-QAM, 256-QAM, CCK, DBPSK, DQPSK, OFDM
Security algorithms	64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3
Bluetooth version	5.0
Wi-Fi
Bluetooth
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Packaging content
Mounting brackets included
Resource CD
Bluetooth header cable
Quick installation guide
Packaging data
Package width	270 mm
Package depth	215 mm
Package height	47 mm
Package weight	480 g
Ports & interfaces
Connectivity technology	Wireless
Host interface	PCI Express
Interface	WLAN / Bluetooth
Sustainability
Sustainability compliance
System requirements
Windows operating systems supported	Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Weight & dimensions
Width	95.2 mm
Depth	120.8 mm
Height	21.5 mm

---
