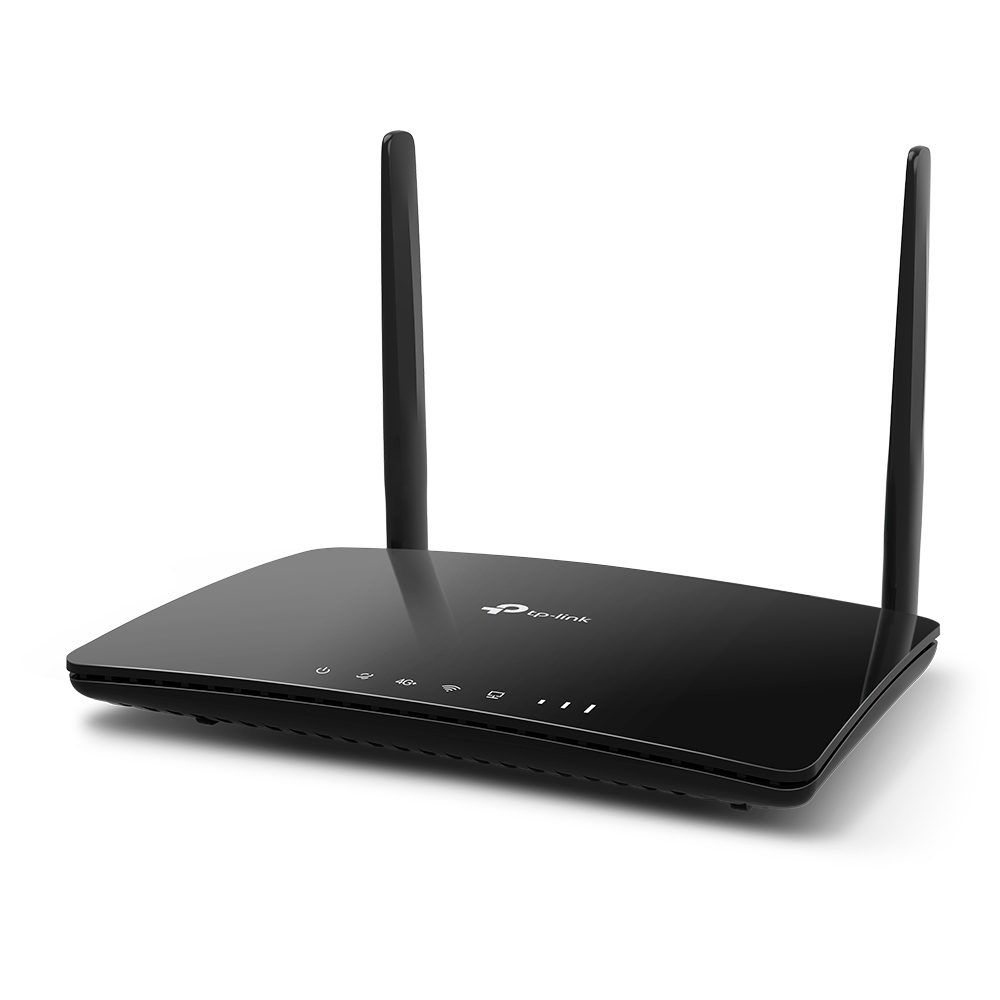

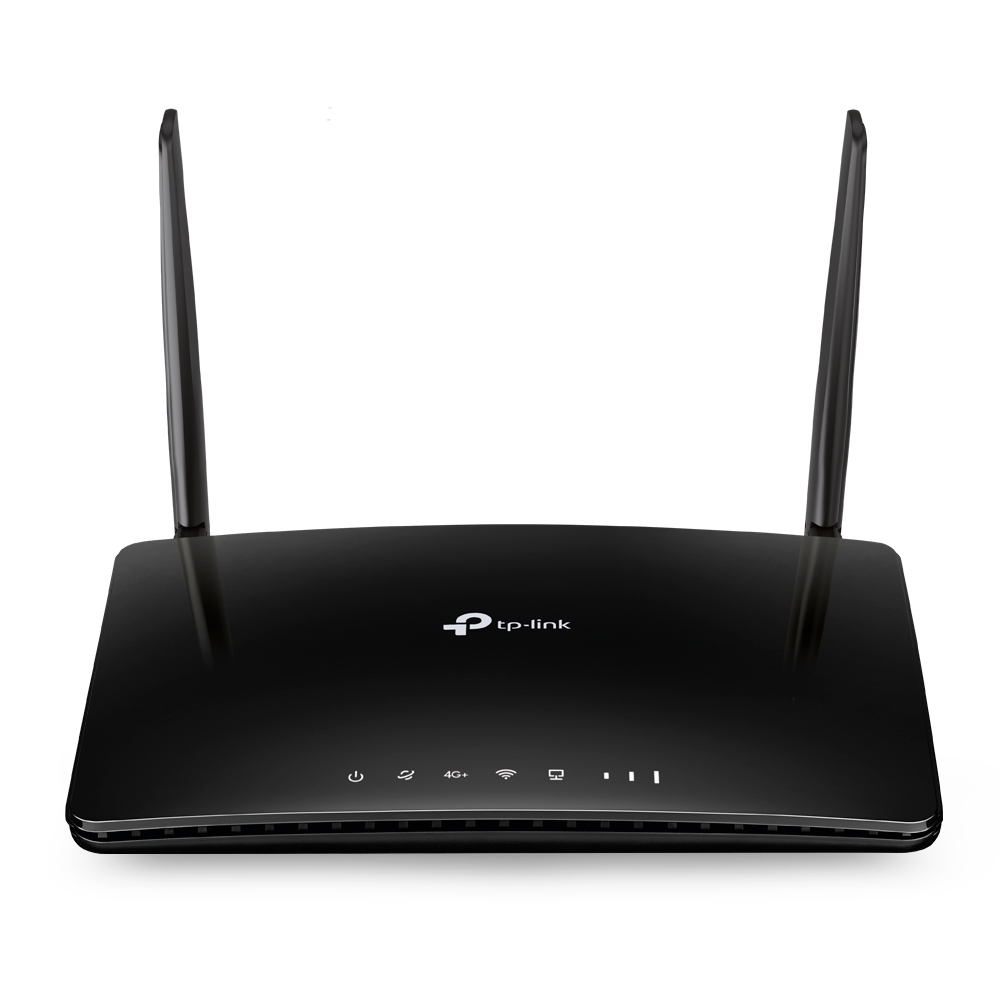

TP-Link ARCHER MR500 WL-Router (AC1200/4G-LTE Modem) content_copy

Fast WiFi wherever you need itAre you looking for a stable and flexible network connection? Archer MR500 offers both as a 4G+ LTE WiFi router. Compared to traditional WiFi routers, it integrates 4G+ and WiFi technology, which means MR500 works like a phone and only requires a nano SIM card for internet access. Experience stable WiFi and share it with your family and friends wherever you are.

Highlights

• Advanced 4G+ Router - supports 4G+ Cat6 to increase data speeds up to 300 Mbps
• Insert a Nano SIM card and get started - no configurations required
• MU-MIMO - simultaneous data streams increase WiFi -Throughput and network efficiency
• Works with TP-Link OneMesh products to create a flexible and cost-effective mesh network
• Enjoy stable and efficient connections to any device thanks to the two external detachable LTE antennas

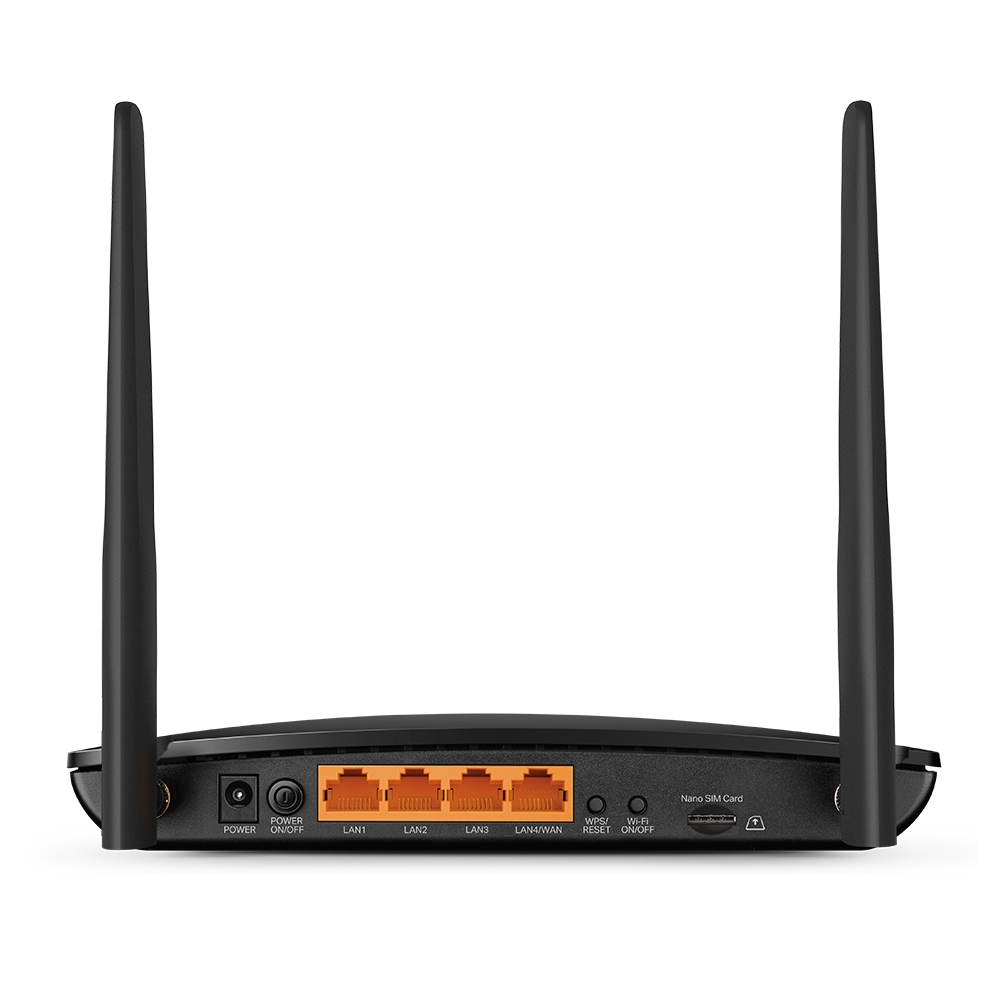

• 1x LAN/WAN and 3x LAN ports provide reliable wired connections for bandwidth-intensive devices such as gaming consoles and IPTVs
• WiFi router mode - Plug an Ethernet cable into the LAN/WAN port for flexible access as a backup option if you can't get a 4G connection
• Easy setup and management via the Tether app

Product type

• Stationary router
• ear category (ElektroG): relevant, Category 6: small IT and telecommunications technology devices, Small IT and telecommunications technology devices B2C

Specifications

• Area of application: Indoor

Connections

• Total number of copper ports: 4

Power supply

• Power supply: external

Data transmission

• WLAN standard: IEEE 802.11a - WiFi 2, IEEE 802.11b - WiFi 1, IEEE 802.11g - WiFi 3, IEEE 802.11n - WiFi 4 , IEEE 802.11ac - WiFi 5
• Mobile standards: 4G - LTE Advanced (LTE-A from CAT 6)
• UMTS band: B1 (2100), B3 (1800 DCS), B5 (850), B8 (900 GSM)
• LTE - Band: B1 (2100), B3 (1800+), B5 (850), B7 (2600), B8 (900), B20 (800 DD), B28 (700 APT), B38 (TD 2600), B40 (TD 2300), B41 (TD 2500)
• Security standard: WEP, WPA, WPA2
• WLAN frequency band: Dual band
• Bandwidth: 10/100/1000 MBit/s
• WPS

Basic properties

• Color: Black
• Height: 33.6 mm
• Length/Depth : 141 mm
• Width: 200 mm

Scope of delivery

• Router Archer MR500
• power supply
• RJ45 Ethernet cable
• Quick start guide

Antenna
Antenna design	External
Antennas quantity	2
Detachable antenna(s)
Certificates
Compliance certificates	RoHS
Certification	CE, RoHS
Design
Product colour	Black
Product type	Tabletop router
Features
Plug and Play
Firmware upgradeable
Management features
Wi-Fi Multimedia (WMM)/(WME)
Quality of Service (QoS) support
Wireless statistics
MU-MIMO technology
Mobile network
Mobile network generation	4G
3G standards	DC-HSPA+, HSPA, UMTS
4G standard	LTE-FDD
GSM bands supported	850,900,2100 MHz
SIM card type	NanoSIM
3G
4G
5G
Network
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Cable standard	Cat6
Number of guest networks (2.4 GHz)	1
Number of guest networks (5 GHz)	1
VPN server	PPTP VPN, OpenVPN
Ethernet LAN
Port forwarding
Dynamic DNS (DDNS)
Wireless radio
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	5 - 90 °C
Operating relative humidity (H-H)	10 - 90%
Packaging content
Cables included	LAN (RJ-45)
AC adapter included
Antenna included
Quick installation guide
Packaging data
Package width	307 mm
Package depth	223 mm
Package height	70 mm
Package weight	800 g
Package type	Box
Ports & interfaces
Ethernet LAN (RJ-45) ports	4
USB port
DC-in jack
Power
Power source type	DC
Protocols
Supported network protocols	IPv4, IPv6
DHCP client
DHCP server
Universal Plug and Play (UPnP)
Security
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise
Firewall
Guest access
Access Control List (ACL)
Schedule access
URL filtering
DMZ support
System requirements
Windows operating systems supported	Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP
Linux operating systems supported
Mac operating systems supported
WAN connection
WAN connection type	RJ-45
Ethernet WAN
DSL WAN
SIM card slot
3G/4G USB modem compatibility
Weight & dimensions
Width	202 mm
Depth	141 mm
Height	33.6 mm
Wireless LAN features
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

---
