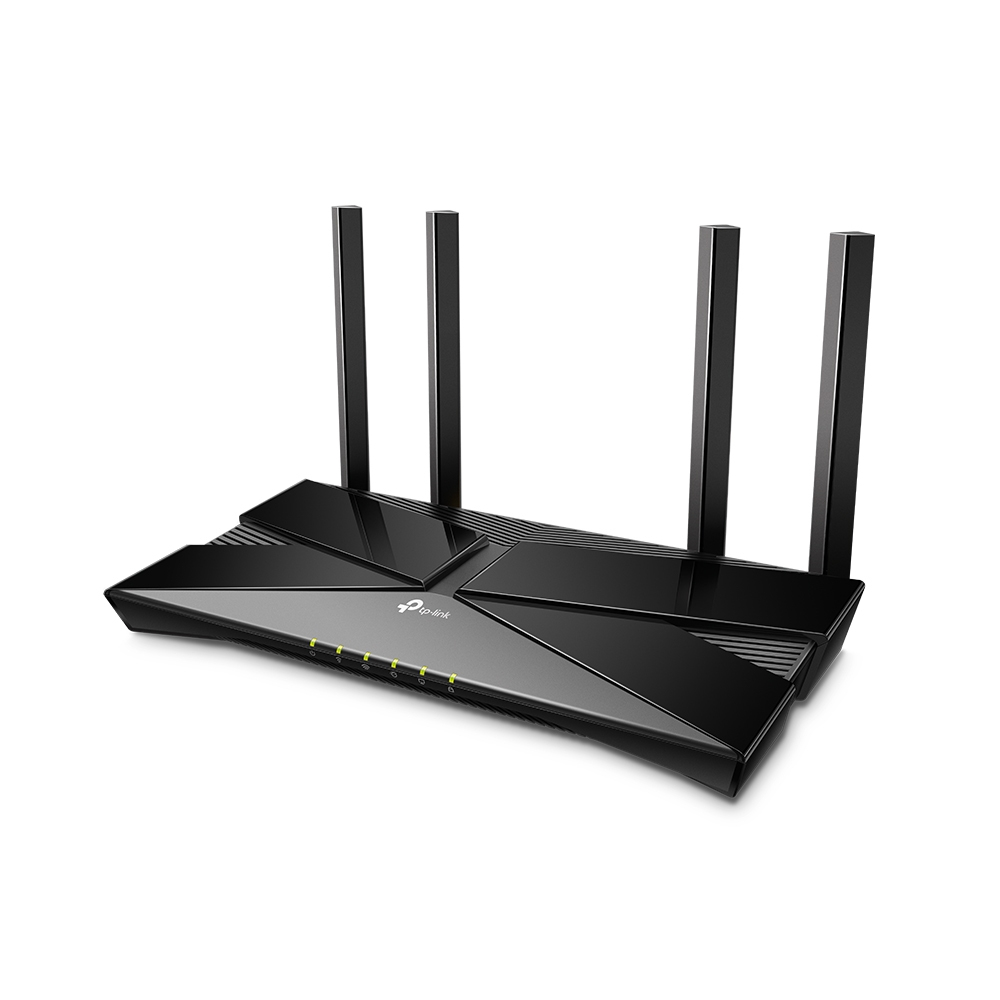

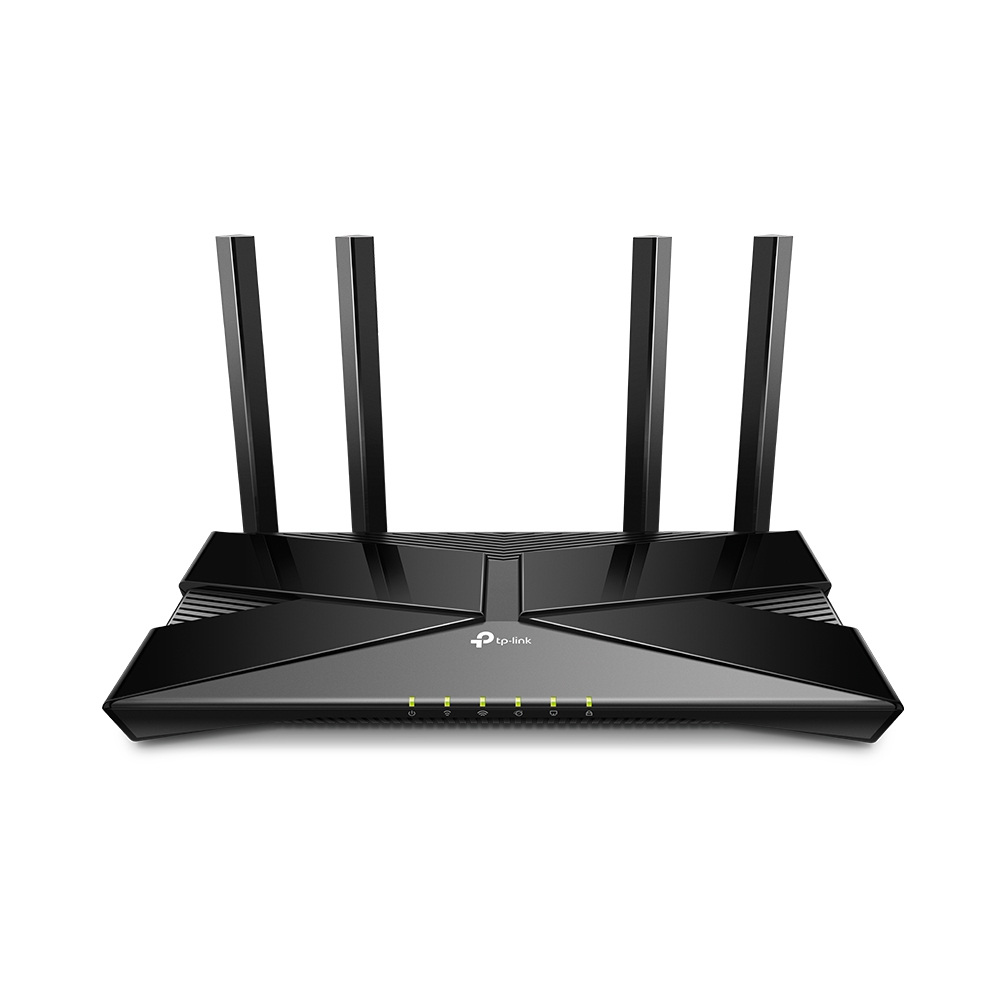

TP-Link WLAN router Archer AX10 (AX1500/Tri-Core) content_copy

Equipped with the latest 802.11ax Wi-Fi 6 technology, the Archer AX10 takes your WiFi network to a new level. With lightning speed and improved efficiency like never before.
Are you thinking about buying a Wi-Fi 6 router? With 1024-QAM, the Archer AX10 offers rapid WiFi speeds of up to 1 Gbit/s for connected cell phones and laptops. This means you can use all bandwidth-intensive applications without interruption.

Highlights

• Wi-Fi 6 technology —Next-generation WiFi with faster speed, larger capacity and less charging time
• Unparalleled WiFi 6 Gigabit speed —1,202 Mbps on 5 GHz, 300 Mbps on 2.4 GHz for smooth streaming and ultra-fast downloads
• Connection for even more devices —Simultaneous data transfer to multiple devices thanks to OFDMA and MU-MIMO
• Powerful processor —1.5 GHz triple-core CPU for stable connection and immediate response
• Extended WiFi coverage —Maximum range and targeted WiFi -Reception thanks to four external high-performance antennas with beamforming
• Full Gigabit ports —Wi-Fi access up to 1 Gbit/s
• Easy installation —Quick installation and management with Tether app
• Compatible with Alexa —Voice control for easy use of the router

Product type

• Stationary router
• ear category (ElektroG): relevant, Category 6: small IT and telecommunications devices, small IT and telecommunications devices B2C

Specifications

• Area of application: Indoor

Functions

• DHCP server
• VPN
• Parental controls

Power supply

• power supply: external

data transmission

• WLAN
• WLAN standard: IEEE 802.11a - WiFi 2, IEEE 802.11b - WiFi 1, IEEE 802.11g - WiFi 3, IEEE 802.11n - WiFi 4, IEEE 802.11ac - WiFi 5, IEEE 802.11 ax - WiFi 6
• Security standard: WPA, WPA2
• WLAN frequency band: dual band
• Bandwidth: 10/100/1000 MBit/s
• WPS

Basic features

• Color: Black
• Height: 38.6 mm
• Length/Depth: 135 mm
• Width: 260.2 mm

Scope of delivery

• Wireless Router Archer AX10
• Power supply
• RJ45 Ethernet cable
• Quick start guide

Antenna
Antenna design	External
Antennas quantity	4
Transmit power	CE: <20dBm(2.4 GHz), <23dBm(5.15 GHz~5.25 GHz); FCC:<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)
Certificates
Certification	FCC, CE, RoHS
Design
Product colour	Black
Product type	Tabletop router
On/off switch
Features
Processor frequency	1500 MHz
Processor cores	3
Internal memory	256 MB
Flash memory	16 MB
Built-in processor
Logistics data
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85176990
Country of origin	Malaysia
Management features
Reset button
WPS push button
Network
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	5 GHz: 11a 6Mbps:-97dBm, 11a 54Mbps:-79dBm 11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS11:-66dBm 11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS11:-63dBm 11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS11:-60dBm 11ax HE20_MCS0:-95dBm, 11ax HE20_MCS11:-63dBm 11ax HE40_MCS0:-92dBm, 11ax HE40_MCS11:-60dBm 11ax HE80_MCS0:-89dBm, 11ax HE80_MCS11:-58dBm 2.4 GHz: 11g 6Mbps:-91dBm, 11a 54Mbps:-74dBm 11n HT20_MCS0:-90dBm, 11n HT20_MCS7:-73dBm 11n HT40_MCS0:-88dBm, 11n HT40_MCS7:-70dBm
Ethernet LAN
Port forwarding
Dynamic DNS (DDNS)
Packaging content
Cables included	LAN (RJ-45)
Packaging content	1 x TP-Link Archer AX1500 Wi-Fi 6 Router, Black
AC adapter included
Quick installation guide
Packaging data
Package width	124 mm
Package depth	300 mm
Package height	38 mm
Package weight	780 g
Number of products included	1 pc(s)
Ports & interfaces

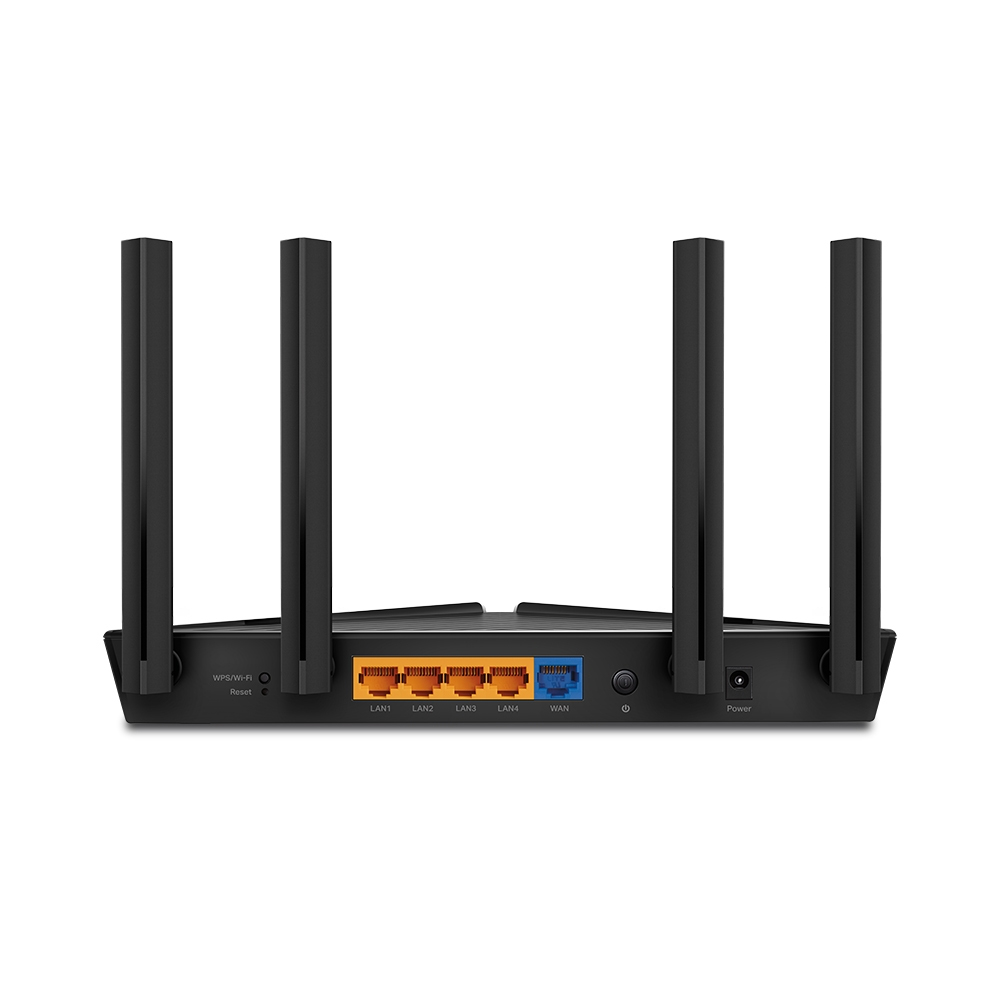

Ethernet LAN (RJ-45) ports	4
USB port
Memory card slot(s)
DC-in jack
Power
Power source type	AC
Output voltage	12 V
Output current	1 A
Protocols
Supported network protocols	IPv4, IPv6
DHCP client
DHCP server
Universal Plug and Play (UPnP)
Security
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Firewall security	SPI
Firewall
Guest access
DMZ support
System requirements
Browser supported	Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0
Windows operating systems supported	Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows XP
Linux operating systems supported
Mac operating systems supported
Mac compatibility
WAN connection
WAN connection type	RJ-45
Ethernet WAN
DSL WAN
SIM card slot
3G/4G USB modem compatibility
Weight & dimensions
Width	260 mm
Depth	126 mm
Height	33 mm
Weight	370 g
Wireless LAN features
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	1500 Mbit/s
Wi-Fi standards	Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax)
WLAN data transfer rate (first band)	300 Mbit/s
WLAN data transfer rate (second band)	1201 Mbit/s

---
