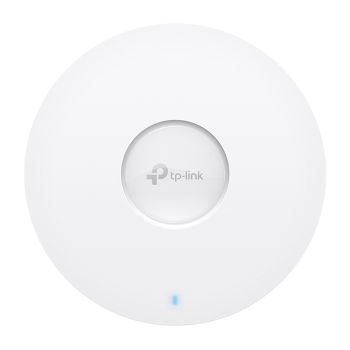

TP-Link AP9670
Omada Pro AX5400 Deckenmontage Dual-Band Wi-Fi 6 AP content_copy

What This Product Does

AP9670, the Omada Pro AX5400 Ceiling Mount WiFi 6 Access Point, provides overall 5378 Mbps speeds with WiFi 6 technologies, such as HE160, 1024 QAM, Long OFDM Symbol, and more.† A built-in 2.5G Ethernet port ensures high network throughput. PoE+ supported also provides flexible installations.

Integrated into the Omada Software Defined Networking (SDN) solution, AP9670 runs in an efficient management way. Centralized and remote management liberate managers and reduce maintenance costs.

Enterprise-Grade WiFi 6 Speed and Connectivity

• Blazing-Fast AX5400 Wi-Fi 6 Speeds
High-end business WiFi 6 with speeds up to 5378 Mbps brings 2.6-time speeds than WiFi 5. 1024 QAM ensures 25% more data encoded at one time. Long OFDM Symbol helps 11% faster WiFi speed. HE160 doubles the data at peak transmission times on a single stream.


• Higher Efficiency for More Devices
Wi-Fi 6 features such as OFDMA and MU-MIMO handle multiple clients across congested environments like typical office spaces, lodging, and hospitals. Enjoy faster speeds on more devices with less lag. Enjoy faster speeds on more devices with less lag.

Boosted Network Security and Efficiency

Customizable WIDS? and adaptive WIPS? assist in safeguarding critical data and network resources. Intelligent Anomaly Detection and Analysis guarantees 24/7 automatic network anomaly analysis to offer timely optimization advice. AP9670 also provides secure WiFi access along with multiple authentication options (SMS/Voucher/RADIUS) and abundant wireless security technologies, such as WPA3 for worry-free open public networks.

Auto Channel Selection and Power Adjustment provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network. Band Steering automatically moves dual band devices onto the wider 5GHz band for faster connections. Load Balance ensures large number

Produkttyp

• Accesspoint
• ear-Kategorie (ElektroG): relevant, Kategorie 6: kleine Geräte der IT- und TK-Technik, Kleine Geräte der Informations- und Telekommunikationstechnik, die in privaten Haushalten genutzt werden können

Spezifikationen

• Betriebstemperatur max: 40 °C
• Betriebstemperatur min: 0 °C

Versand

• WEEE: 85565951

Antenne

• Antennentechnologie: intern
• Gewinn: 5 dbi
• Montageart: Decke, Wand

Datenübertragung

• Bluetooth

Grundeigenschaften

• Farbe: Weiß
• Höhe: 64 mm
• Länge/Tiefe: 243 mm
• Breite: 243 mm

Lieferumfang

• TP-Link Omada Pro AP9670 WLAN Access Point 5400 Mbit/s Weiß Power over Ethernet (PoE)

Antenna
Antenna type	Internal
Antenna gain level (max)	5 dBi
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Design
Placement	Ceiling, Wall
Product colour	White
Reset button
Features
Maximum data transfer rate	5400 Mbit/s
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Maximum data transfer rate (5 GHz)	4804 Mbit/s
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Frequency band	2.4 - 5 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ad, IEEE 802.11ax, IEEE 802.11az, IEEE 802.11b, IEEE 802.11n
Number of users	250 user(s)
MIMO type	Multi User MIMO
2.4 GHz
5 GHz
6 GHz
Automatic channel selection
Automatic channel scanning
MIMO
Wi-Fi Multimedia (WMM)/(WME)
VLAN support
Rate limiting
Band steering
Airtime Fairness (ATF)
Quality of Service (QoS) support
BeamForming
Management features
Web-based management
Syslog
Operational conditions
Operating relative humidity (H-H)	-10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Packaging content
Quantity per pack	1 pc(s)
Mounting kit
Quick start guide
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
DC-in jack
Power
DC voltage range	12 V
Input current	1.5 A
Power over Ethernet (PoE)
Security
Security algorithms	WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise
Service Set Identifier (SSID) features	Multiple SSIDs
Number of SSID supported	16
MAC address filtering
Remote Authentication Dial-In User Service (RADIUS)
Access Control List (ACL)
Sustainability
Sustainability compliance
Weight & dimensions
Width	243 mm
Depth	243 mm
Height	64 mm

---
