Titan TTC-SC32(A)+ tube fan
|
68,44 EUR |
|
|
( 81,44 EUR incl. VAT ) ≈ £57.35 | ≈ $76.17 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: 4 pieces | |
| Lieske Part No.: | 22194603 |
|---|---|
| Mfg Part No: | TTC-SC32(A) |
| UPC/EAN: | 4260153572854 |
| Weight: | 0.825 kg |
Product information for Titan TTC-SC32(A)+:

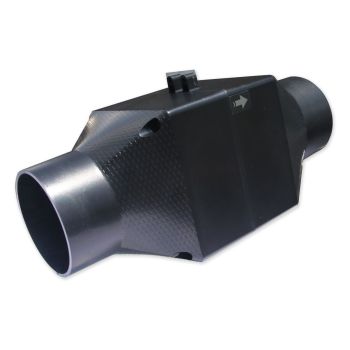

Titan TTC-SC32(A)+ tube fan
Tube fan to boost heating and cooling capacityDesigned for ventilation applications including RV HVAC systems, dryers, grow rooms, greenhouses or tents. It transports fresh air for heating/cooling purposes
Features intelligent speed control with manual control of 6 speed levels, automatic temperature control and timer setting
Automatic temperature control: From 20° C and below, the fans switch off automatically. Between 20° C and 45° C, the fan speed is regulated automatically depending on the temperature. Above 45° C, the fans run automatically at maximum speed.
IP55, waterproof fan design for all environments
The set includes two steel pipe clamps that secure the aluminium pipe to your fan or other pipe openings.
for Ø 60mm pipe
incl. rectifier
SpecificationsFan dimensions 80x80x25 (high pressure)
External dimensions incl. frame 86x86x205mm
Input voltage 7 VDC
Nominal voltage 12VDC
Operating voltage range 7~13.8VDC
Rated current 0.4A
Power consumption (Watt) 4.8W
Fan speed 1200 - 4200RPM
Airflow 20 - 59CFM
Static pressure 4.9 - 8.26mm H2O
Noise level 25 - 50 dBA
Bearing type double ball bearing
Service life 50,000 hours
Watertightness
IP55
Cable length 3M
Mounting kits incl.
Tube fan to boost heating and cooling capacityDesigned for ventilation applications including RV HVAC systems, dryers, grow rooms, greenhouses or tents. It transports fresh air for heating/cooling purposes
Features intelligent speed control with manual control of 6 speed levels, automatic temperature control and timer setting
Automatic temperature control: From 20° C and below, the fans switch off automatically. Between 20° C and 45° C, the fan speed is regulated automatically depending on the temperature. Above 45° C, the fans run automatically at maximum speed.
IP55, waterproof fan design for all environments
The set includes two steel pipe clamps that secure the aluminium pipe to your fan or other pipe openings.
for Ø 60mm pipe
incl. rectifier
SpecificationsFan dimensions 80x80x25 (high pressure)
External dimensions incl. frame 86x86x205mm
Input voltage 7 VDC
Nominal voltage 12VDC
Operating voltage range 7~13.8VDC
Rated current 0.4A
Power consumption (Watt) 4.8W
Fan speed 1200 - 4200RPM
Airflow 20 - 59CFM
Static pressure 4.9 - 8.26mm H2O
Noise level 25 - 50 dBA
Bearing type double ball bearing
Service life 50,000 hours
Watertightness
IP55
Cable length 3M
Mounting kits incl.
| Technical data | |
| Airflow | 965.35-2836.27m³/h |
| Bearing | Two ball |
| Fan dimensions (LxW) | 80x80mm |
| Packaging volume | 0.0010m³ |
| Power connection | Not specified |
| Width packaging | 0.135m |
| Operating time (approx.) | 50000h |
| Height packaging | 0.110m |
| Length packaging | 0.355m |
| Weight | 0.825kg |
| Rated current | 0.4A |
| Noise level | 25-50dB(A) |
| Power consumption | 4.8W |
| Cable length | 3m |
| Rated speed | 1200-4200rpm |
| Nominal voltage | 12V DC |
| Speedo signal | |
