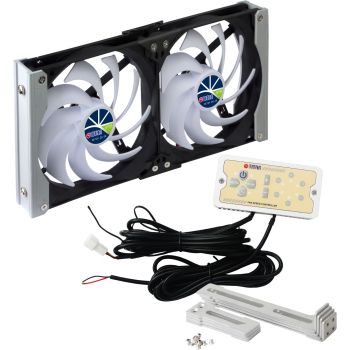

Titan TTC-SC20(A)/V2
+ Double Fan for Refrigerators 92x25mm IP55, Timer Rectifier content_copy

The TTC‑SC20(A)/V2+ is specially designed for use in motorhomes and caravans. With two 92 mm fans, it provides effective ventilation in critical areas, e.g. behind the refrigerator, behind interior panelling or in small storage spaces. The V2+ version features a modern control unit with integrated rectifier, which ensures a stable and reliable 12 V supply – a separate rectifier is no longer necessary.
The Titan double fan noticeably improves the cooling performance of the refrigerator, and energy savings of up to 40 % are possible with absorption refrigerators. Both automatic control of the fan speed by means of the temperature sensor supplied and manual control are possible. With temperature control (AUTO), the fans switch on automatically and also switch off again automatically when the temperature drops below 20°C. The fan speed depends on the ambient temperature. The timer function allows the fans to run on for a certain period of time (max. 4 hours); this is possible both in automatic mode with temperature-controlled fan speed and in manual mode at the previously selected speed level. After this run-on period, the fans then switch off automatically.
You can use this double fan in your motorhome, caravan, camper van or even in a truck. Ideal as a refrigerator fan or also for ventilation in the home cinema, audio/video cabinet, the home server, as network cooling and for much more. The double fan is pre-assembled in the aluminium mounting frame.Refrigerator or multifunctional double fan
with rectifier
Universal voltage: 12V
flexible and intelligent speed mode
automatic temperature control
below 20°C (68°F) the fans turn off automatically
above 45°C (113°F) the fans automatically rotate at maximum speed
6-step manual control to adapt to special needs
6-stage timer setting to extend the fan run-on time
Powerful, temperature-controlled double fan
Automatic control with high-quality speed controller in aluminium housing and temperature sensor or manual speed control - as required
2 quiet 9-blade Kukri fans 92x92x25mm for quiet operation
External dimensions incl. frame = 19.4x9.2x3.1cm (WxHxD)
Variable mounting rails are attached to the left and right sides of the frame.
dust-protected and protected against water jets according to IP 55, therefore also suitable for outdoor use
Scope of delivery: double fan, pre-assembled in aluminium frame, aluminium speed controller, fixing material
Speed controller: input voltage: 12V DC, output voltage: 7-13.8V DC, max. output current: 1A, current consumption: 0.05A, temperature measurement: 20-45°C
Kukri fan (2 pieces): Outer dimensions: 92x92x25mm, input voltage: 7V DC, rated voltage: 12V DC, operating voltage range: 7-13.8V DC, rated current: 0.48A, power consumption: 5.76W, fan speed: 500-2600 ± 10% rpm, airflow 40.4-106.2m³/h, noise level: 6.28dBA, bearing type: Z-bearing, life time (MTBF): 60000hrs.
Cable length: 1m
Mounting sets incl.

Technical data
Power connection	Wire +/-
Fan dimensions (LxW)	92x92x25mm
Rated speed	500-2600rpm
Operating time (approx.)	60000h
Noise level	6-28dB(A)
Height packaging	0.053m
Airflow	35-180m³/h
Bearing	Z axis
Weight	0.619kg
Length packaging	0.286m
Power consumption	5.76W
Fan blades	9
Width packaging	0.152m
Rated current	0.48A
Nominal voltage	12V DC
Speedo signal

---
