Titan TFD-12025H12ZP/KU(RB)
KUKRI-Series with PWM 120x120x25mm content_copy

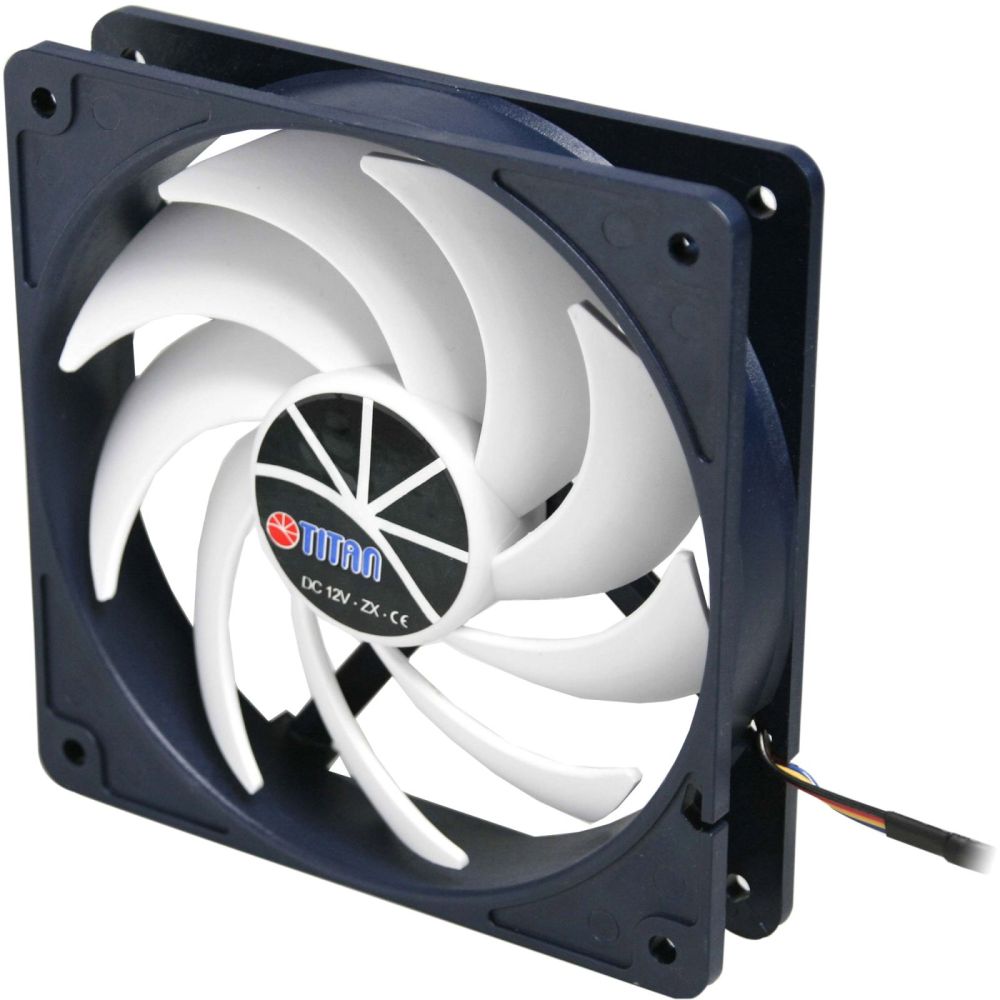

Due to the constant demand of users for better computer performance, energy consumption is also increasing, which in turn can lead to an increase in the heat problem. To prevent your computer from overheating, TITAN has launched the new KUKRI fans (TFD-12025 KUKRI series). The name comes from the legendary weapon of the Gurkha regiment or the Nepalese army, who were considered particularly brave on the battlefield. The 9 fan blades are designed to generate high air pressure to accelerate heat dissipation while maintaining a low noise level.Nine massive, kuki shaped fan blades generate excellent airflow to achieve high cooling performance
Super quiet 12cm fan ensures low noise level
The TITAN Z-bearing stands for a long service life
Easy mounting with vibration dampers to reduce noise and vibration
PWM control offers the best possible flexibility

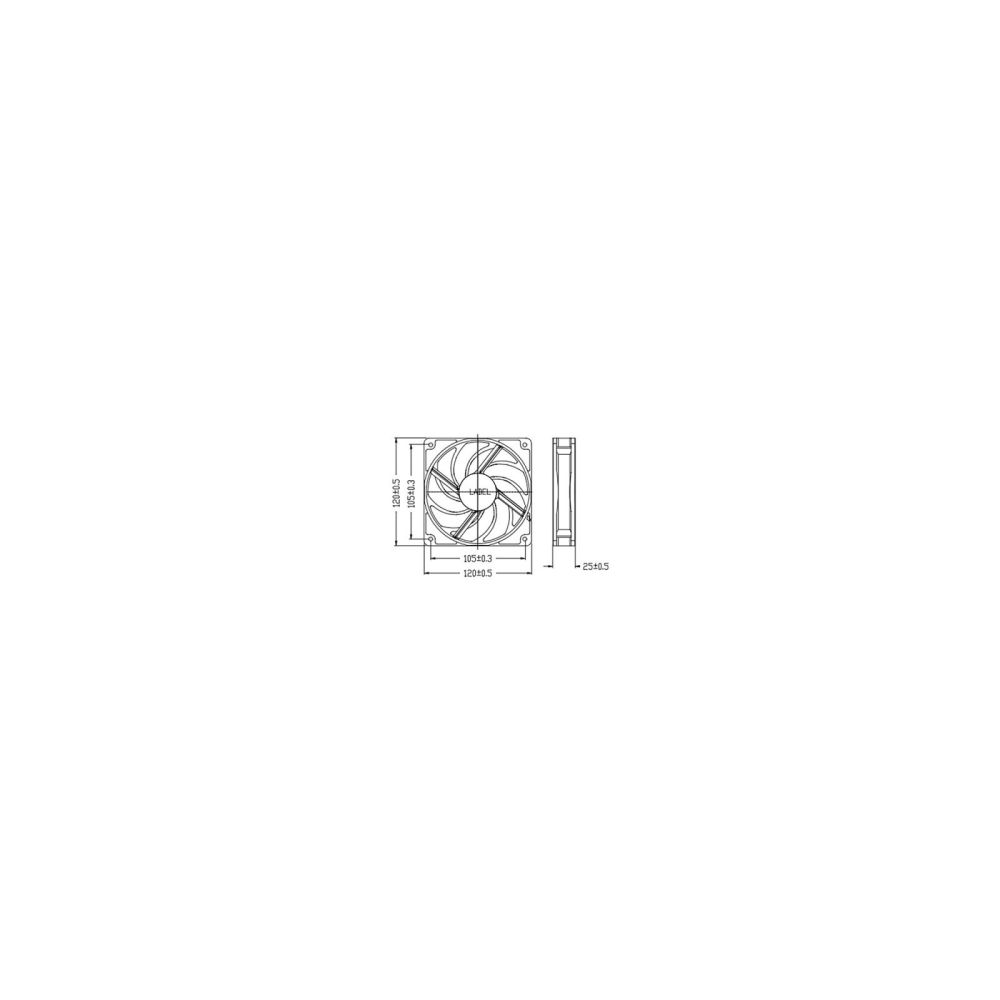

External dimensions: 120 x 120 x 25 mm
Rated voltage: 12V DC
Rated current: 0.32A
Power consumption: 3.84W
Fan speed: 800-2200±10% rpm
Airflow: 24.23-66.62cfm, approx. 41-112m³/h
Noise level: approx. 15-35 dBA
Bearing type: Z-bearing, service life: approx. 60000h
4-pin PWM mainboard connection

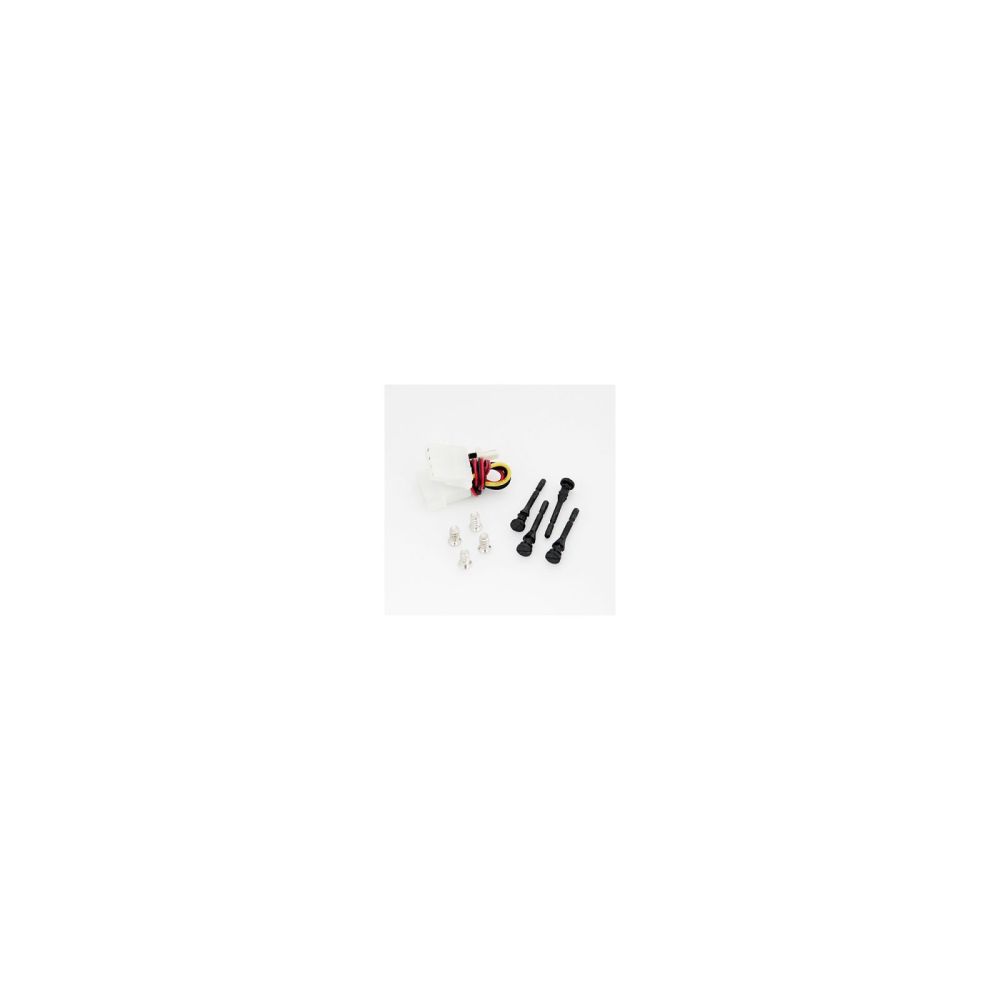

incl. screws, anti-vibration mounts, power adapter cable

Technical data
Height packaging	0.030m
Airflow	41-112m³/h
Width packaging	0.130m
Fan dimensions (LxW)	120x120mm
Power consumption	3.84W
Packaging volume	0.0005m³
Bearing	Z axis
Rated current	0.32A
Material	Plastic
Rated speed	800-2200rpm
Length packaging	0.140m
Fan blades	9
Hole distances	105mm
Weight	0.211kg
Noise level	15-35dB(A)
Mounting depth	25mm
Power connection	4 PIN
Illumination
PWM controlled
Temperature controlled
Speedo signal

---
