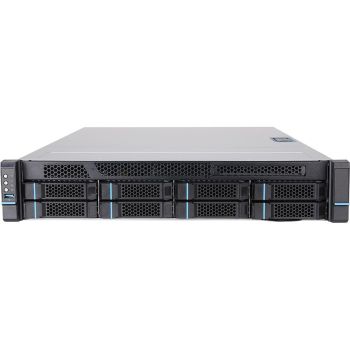

TERRA SERVER 3230 G6
|
-6% 8.368,92 EUR 8.941,32 EUR |
|
|
( 9.959,01 EUR incl. VAT ) ≈ £7,013.15 | ≈ $9,364.82 plus delivery charges: 235,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 812883 |
| Mfg Part No: | 1100419 |
| UPC/EAN: | 4039407090112 |
| Weight: | 27 kg |
Product information for Terra 1100419:
Xeon 6369P (24 MB cache, 8x 3.30 GHz)
Chenbro RM23808 2HE RACK, 800W PSU redundant
Incl. Rails
2x 32 GB DDR5 UB ECC RAM, 2x 1.9 TB SATA SSD (RAID 1)
Broadcom MegaRAID 9560-8i with 4 GB cache
(RAID 0/1/10/5/50/6/60)
(!) w/o DVD burner
2x 10 GbE LAN, 1x Mgmt LAN, TPM
Grafic onboard (VGA)
(!) w/o keyboard and mouse
(!) w/o operating system
Chenbro RM23808 2HE RACK, 800W PSU redundant
Incl. Rails
2x 32 GB DDR5 UB ECC RAM, 2x 1.9 TB SATA SSD (RAID 1)
Broadcom MegaRAID 9560-8i with 4 GB cache
(RAID 0/1/10/5/50/6/60)
(!) w/o DVD burner
2x 10 GbE LAN, 1x Mgmt LAN, TPM
Grafic onboard (VGA)
(!) w/o keyboard and mouse
(!) w/o operating system
| Design | |
| Chassis type | Rack |
| Cooling type | Active |
| Rack mounting | |
| Expansion slots | |
| PCI Express x8 (Gen 4.x) slots | 2 |
| PCI Express x8 (Gen 5.x) slots | 1 |
| Graphics | |
| On-board graphics card family | Aspeed |
| On-board graphics card model | Aspeed AST2600 |
| Maximum graphics card memory | 64 MB |
| On-board graphics card | |
| Memory | |
| Internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Maximum internal memory | 128 GB |
| ECC | |
| Network | |
| LAN controller | Intel X710-AT2 |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ethernet LAN | |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 10 - 75% |
| Other features | |
| Motherboard manufacturer | Asus P13R-E/10G-2T |
| Memory type | 4x DDR5 PC4400, UB ECC |
| Performance | |
| Remote administration | |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
| VGA (D-Sub) ports quantity | 1 |
| Power | |
| Power supply | 800 W |
| Number of main power supplies | 2 |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50/60 Hz |
| Redundant power supply (RPS) support | |
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® |
| Processor model | 6369P |
| Processor frequency | 3.3 GHz |
| Processor boost frequency | 5.7 GHz |
| Performance cores | 8 |
| Processor cores | 8 |
| Processor cache | 24 MB |
| Motherboard chipset | Intel C266 |
| Memory channels supported by processor | Dual |
| Number of processors installed | 1 |
| Maximum number of SMP processors | 1 |
| Processor socket | LGA 1700 |
| Software | |
| Compatible operating systems | Windows Server 2019¦ |
| Operating system installed | |
| Storage | |
| Total storage capacity | 3.84 TB |
| Number of SSDs installed | 2 |
| SSD capacity | 3.84 TB |
| SSD interface | SATA III |
| RAID levels | 1 |
| Supported RAID controllers | Broadcom MegaRAID 9560-8i |
| Number of 5.25" bays | 1 |
| Internal drive bays | 8x 3.5"/2.5" |
| RAID support | |
| Optical drive type | |
| Technical details | |
| Compliance certificates | CE |
| Weight & dimensions | |
| Width | 438 mm |
| Depth | 660 mm |
| Height | 87 mm |
