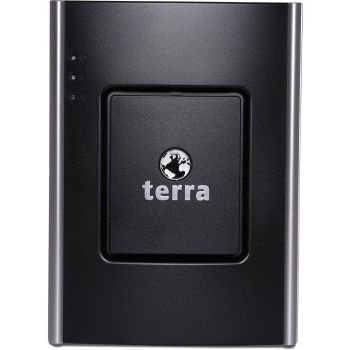

TERRA MINISERVER G6
|
4.958,41 EUR 5.012,91 EUR |
|
|
( 5.900,51 EUR incl. VAT ) ≈ £4,155.15 | ≈ $5,548.46 plus delivery charges: 148,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 812828 |
| Mfg Part No: | 1100376 |
| UPC/EAN: | 4039407083558 |
| Weight: | 12 kg |
Product information for Terra 1100376:
Xeon E-2434 (12 MB cache, 4x 3.40 GHz)
TERRA SR301P MINITOWER, 450 Watt power supply
1x 32 GB DDR5 UB ECC RAM, 2x 960 GB SATA SSD (RAID 1)
Broadcom MegaRAID 9550-8i with 4 GB cache (RAID 0/1/10)
(!) w/o DVD burner
2x 1 GbE LAN, 1x Mgmt LAN, TPM
Grafic onboard (VGA)
(!) w/o keyboard and mouse
Windows Server 2025 Essentials
(MUI - DE, EN, FR, NL, PL)
TERRA SR301P MINITOWER, 450 Watt power supply
1x 32 GB DDR5 UB ECC RAM, 2x 960 GB SATA SSD (RAID 1)
Broadcom MegaRAID 9550-8i with 4 GB cache (RAID 0/1/10)
(!) w/o DVD burner
2x 1 GbE LAN, 1x Mgmt LAN, TPM
Grafic onboard (VGA)
(!) w/o keyboard and mouse
Windows Server 2025 Essentials
(MUI - DE, EN, FR, NL, PL)
| Certificates | |
| Certification | CE, production according to ISO9001 in Germany |
| Design | |
| Chassis type | Mini Tower |
| Cooling type | Active |
| Graphics | |
| On-board graphics card family | Aspeed |
| On-board graphics card model | Aspeed AST2600 |
| Maximum graphics card memory | 64 MB |
| On-board graphics card | |
| Memory | |
| Internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| Memory slots | 2x DIMM |
| Maximum internal memory | 64 GB |
| ECC | |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Number of LAN controllers | 2 |
| Ethernet LAN | |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 10 - 75% |
| Other features | |
| Motherboard manufacturer | Asus P13R-I |
| Memory type | 2x DDR5 PC4800, UB ECC |
| Performance | |
| Remote administration | |
| Trusted Platform Module (TPM) | |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Total number of SATA connectors | 6 |
| Power | |
| Power supply | 450 W |
| Number of redundant power supplies supported | 1 |
| Number of redundant power supplies installed | 1 |
| Number of main power supplies | 1 |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50/60 Hz |
| Redundant power supply (RPS) support | |
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® |
| Processor model | E-2434 |
| Processor frequency | 3.4 GHz |
| Processor boost frequency | 5 GHz |
| Performance cores | 4 |
| Processor cores | 4 |
| Processor cache | 12 MB |
| Motherboard chipset | Intel C262 |
| Memory channels supported by processor | Dual |
| Number of processors installed | 1 |
| Maximum number of SMP processors | 1 |
| Processor socket | LGA 1700 |
| Intel® Optane™ Memory Ready | |
| Software | |
| Operating system installed | Windows Server 2025 Essentials |
| Compatible operating systems | Windows Server 2019¦ |
| Operating system language | Multilingual |
| Storage | |
| Total storage capacity | 1.92 TB |
| Supported HDD sizes | 2.5,3.5" |
| Number of SSDs installed | 2 |
| SSD capacity | 960 GB |
| SSD interface | SATA III |
| Supported SSD sizes | 2.5", 3.5" |
| RAID levels | 1 |
| Supported RAID controllers | Broadcom MegaRAID 9550-8i |
| Internal drive bays | 4x 3.5"/2.5" (HotSwap-fähig) ¦ 2x 2.5" (für Festeinbau von SSDs) |
| RAID support | |
| Hot-swap | |
| Optical drive type | |
| Technical details | |
| Compliance certificates | CE |
| Weight & dimensions | |
| Width | 200 mm |
| Depth | 340 mm |
| Height | 270 mm |
Questions & answers
What is the delivery time of TERRA MINISERVER G6?
The article TERRA MINISERVER G6 is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Terra 1100376 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you TERRA MINISERVER G6 always at the best possible price. We can give you a discount of 2% on TERRA MINISERVER G6 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
