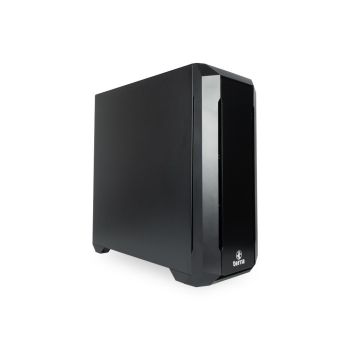

TERRA WORKSTATION 7570 BTO content_copy

General
Operating system: Windows 11 Pro for Workstations
Software
Pre-installed software: 1 month trial version for new Microsoft® 365 user
Processor
Processor family: Xeon
Processor cores: Hexa-Core (6 Core)
Processor socket: FCLGA4677 Socket
Number of processors: 1
Memory
Internal memory: 16 GB
Maximum internal memory: 2048 GB
Internal memory type: REG DDR5 ECC
Memory slots: 4
Memory form factor: DIMM 240-PIN
Storage
Total storage capacity: 1 TB
HDD interface: 4x SATA 6Gb/s ports
1x M.2 slot (PCIe 4.0 x4/ available with 11th Gen CPU only)
1x M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
RAID levels: RAID 0
RAID 1
RAID 5
RAID 10 RAID 1 RAID 5 RAID 10
SSD interface: PCIe 4.0
SSD capacity: 1 TB
HDD capacity: 1 x 1 TB - SSD
Storage media: SSD M.2
Performance
Series: Workstation
Audio output channels: 8-channel
Motherboard chipset: Intel W790
Design
Chassis type: Tower
Certification: ISO 9001, Assembled in Germany
Compatibility: SMBios (DMI), EnergyStar (Valid only for U.S.), EN60950, EN55022,EN55024, EN61000-3-2/3, 89/336/ECC
Keyboard form factor: Optional
Keyboard
Keyboard language: International
Device interface: USB
Technical details
Localization: International
Field of use: Adobe Illustrator
Autodesk 3ds Max
Expansion slots
Expansion slots: 1x PCIe 5.0/4.0/3.0 x16, 1x PCIe 4.0/3.0 x16 (supports x4 mode)
2x PCIe 3.0 x16 (supports x4 mode), 1x PCIe 3.0 x1
Weight & dimensions
Height: 59.7 cm
Width: 25.4 cm
Depth: 59.8 cm
Weight: 21.5 kg
Other features
Interface: 1x USB 3.2 Gen USB Type-C, 1x USB 3.2 Gen 2 Type-A, 2x USB 3.2 Gen1, 2x USB 2.0, 1x DP 1.4, 1x HDMI 2.1, 1x Realtek 2.5Gb Ethernet RJ45, 5x Audio jacks, 1x Optical S/PDIF out port
Compatible operating systems: Windows 10 (64-Bit)
Windows 11 (64-Bit)
Unsupported OS by WAG: Linux (64-Bit)
Motherboard manufacturer: Asus Pro WS W790-ACE
Cooling type: Active
Compliance industry standards: CE, ISO 9001, Assembled in Germany
Compatibility: PC2001, SMBios (DMI) 2.3, PCI 2.2,WFM 2.0, EnergyStar, EN60950, EN55022,EN55024, EN61000-3-2/3, 89/336/ECC
Special features: TPM 2.0
Secure Boot
Windows Autopilot-ready
Mouse
Mouse included: TERRA wheel mouse optical
Graphics
On-board graphics adapter memory: 2 GB
Graphics card: NVIDIA 16GB RTX 2000 ADA Professional Graphics (by PNY)
Graphics adapter ports: 4x DisplayPort 4x mDP
Power
Power source: ATX Netzteil 80 Plus Gold, 24-7 Dauerbetrieb geeignet
Energy efficiency (Workload 20 %/ 50 % / 100 %): 87 %/ 90 % / 87 %
Maximum input power: 650 Watt
AC adapter input voltage: AC 100/240 V ( 50/60 Hz )
Operational conditions
Operating temperature (T-T): 10 °C - 32 °C
Maximum operating temperature range (T-T): 32 °C
Recommended humidity operating range: 10 - 75% (non-condensing)
Network
Ethernet LAN: Netzwerkadapter - integriert
LAN controller: Realtek 2.5Gb Ethernet
Input device
Movement detection technology: Optical
Device interface: USB

Audio
Audio system	High Definition Audio
Design
Chassis type	Tower
Number of 5.25" bays	4
Product colour	Black
Expansion slots
Number of 3.5" bays	7
PCI Express x1 (Gen 3.x) slots	1
PCI Express x16 (Gen 3.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
Expansion slots	1x PCIe 5.0/4.0/3.0 x16, 1x PCIe 4.0/3.0 x16 (supports x4 mode) ¦ 2x PCIe 3.0 x16 (supports x4 mode), 1x PCIe 3.0 x1
Features
Motherboard manufacturer	Asus Pro WS W790-ACE
Graphics
Discrete graphics card model	NVIDIA RTX 2000 Ada
Discrete graphics card memory	16 GB
Number of discrete graphics cards	1
On-board graphics card model	Not available
Discrete graphics card
On-board graphics card
Memory
Internal memory	32 GB
Maximum internal memory	2 TB
Internal memory type	DDR5-SDRAM
Memory layout (slots x size)	2 x 16 GB
Memory slots	4x DIMM
Buffered memory type	Registered (buffered)
ECC
Network
Ethernet LAN data rates	100,1000 Mbit/s
Ethernet LAN
Operational conditions
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	10 - 75%
Other features
Locale	International repository
Packaging content
Mouse included
Manual
Performance
Market positioning	Business
Motherboard chipset	Intel W790
Product type	Workstation
Trusted Platform Module (TPM) version	2.0
Audio output channels	8.0 channels
Trusted Platform Module (TPM)
Ports & interfaces
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
DisplayPorts quantity	5
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Mini DisplayPorts quantity	4
Line-out
Line-in
S/PDIF out port
Power
Power supply	650 W
Power supply input voltage	100 - 240 V
Power supply input frequency	50/60 Hz
80 PLUS certification	80 PLUS Gold
Processor
Processor manufacturer	Intel
Processor family	Intel® Xeon®
Processor model	W3-2525
Processor cores	6
Performance cores	8
Performance-core Max Turbo Frequency	4.5 GHz
Performance-core base frequency	3.5 GHz
Processor cache	22.5 MB
Processor cache type	Smart Cache
Number of processors installed	1
Processor socket	LGA 4677 (Socket E)
Processor base power	175 W
Maximum turbo power	210 W
Software
Operating system architecture	64-bit
Operating system installed	Windows 11 Pro for Workstations
Compatible operating systems	Windows 10 (64-Bit) ¦ Windows 11 (64-Bit) ¦ Unsupported OS by WAG: Linux (64-Bit)
Storage
Total storage capacity	500 GB
Storage media	SSD
Optical drive type	DVD±RW
Number of storage drives installed	1
Number of storage drives supported	6
Total SSDs capacity	500 GB
Number of SSDs installed	1
SSD capacity	500 GB
SSD interface	PCI Express 4.0
SSD form factor	M.2
Storage options	4x SATA 6Gb/s ports ¦ 1x M.2 slot (PCIe 4.0 x4/ verfügbar nur bei Verwendung einer 11th Gen CPU) ¦ 1x M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
RAID levels	5, 1, 0, 10
RAID support
Weight & dimensions
Width	254 mm
Depth	598 mm
Height	597 mm
Weight	21.5 kg

---
