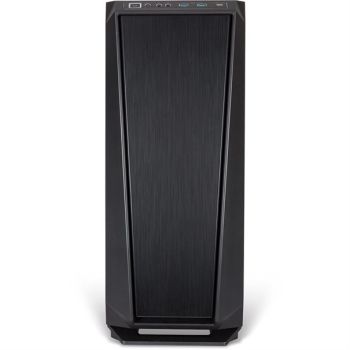

TERRA WORKSTATION 8000 CC BTO content_copy

General
Processor model: Intel Core i9 (14. Gen.) 14900KF / 36 MB Intel Smart Cache, bis zu 6.0 GHz mit Intel Turbo Boost Technology
Operating system: Windows 11 Pro
Software
Pre-installed software: 1 month trial version for new Microsoft® 365 user
Processor
Processor family: Core i9
Processor cores: 24-Core
Processor socket: FCLGA1700 Socket
Number of processors: 1
Memory
Internal memory: 16 GB
Maximum internal memory: 128 GB
Internal memory type: DDR5 SDRAM
Memory slots: 4
Memory form factor: DIMM 240-PIN
Storage
Total storage capacity: 500 GB
HDD interface: 4x SATA 6Gb/s ports
1x M.2 slot (PCIe 4.0 x4/ available with 11th Gen CPU only)
1x M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
RAID levels: RAID 0
RAID 1
RAID 5
RAID 10 RAID 1 RAID 5 RAID 10
SSD interface: PCIe 4.0
SSD capacity: 1 TB
HDD capacity: 1 x 1 TB - SSD
Storage media: SSD M.2
Performance
Series: Workstation
Audio output channels: 8-channel
Motherboard chipset: Intel Z790
Design
Chassis type: Tower
Certification: ISO 9001, Assembled in Germany
Compatibility: SMBios (DMI), EnergyStar (Valid only for U.S.), EN60950, EN55022,EN55024, EN61000-3-2/3, 89/336/ECC
Keyboard form factor: Optional
Keyboard
Keyboard language: International
Device interface: USB
Technical details
Localization: International
Field of use: Autodesk AutoCAD
Adobe Illustrator
Autodesk 3ds Max
Expansion slots
Expansion slots: 1x PCIe 5.0/4.0/3.0 x16, 1x PCIe 4.0/3.0 x16 (supports x4 mode)
2x PCIe 3.0 x16 (supports x4 mode), 1x PCIe 3.0 x1
Weight & dimensions
Height: 47 cm
Width: 22 cm
Depth: 49.2 cm
Weight: 21.5 kg
Other features
Interface: 1x USB 3.2 Gen USB Type-C, 1x USB 3.2 Gen 2 Type-A, 2x USB 3.2 Gen1, 2x USB 2.0, 1x DP 1.4, 1x HDMI 2.1, 1x Realtek 2.5Gb Ethernet RJ45, 5x Audio jacks, 1x Optical S/PDIF out port
Compatible operating systems: Windows 10 (64-Bit)
Windows 11 (64-Bit)
Unsupported OS by WAG: Linux (64-Bit)
Motherboard manufacturer: ASUS PRIME Z790-P WIFI
Cooling type: Active
Compliance industry standards: CE, ISO 9001, Assembled in Germany
Compatibility: PC2001, SMBios (DMI) 2.3, PCI 2.2,WFM 2.0, EnergyStar, EN60950, EN55022,EN55024, EN61000-3-2/3, 89/336/ECC
Special features: 2x USB 3.1 Gen1 Typ A + Audio in Front
Mouse
Mouse included: TERRA wheel mouse optical
Graphics
On-board graphics adapter memory: 12 GB
Graphics adapter ports: 4x DisplayPort 4x mDP
Power
Power source: ATX Netzteil 80 Plus Gold, 24-7 Dauerbetrieb geeignet
Energy efficiency (Workload 20 %/ 50 % / 100 %): 87 %/ 90 % / 87 %
Maximum input power: 650 Watt
AC adapter input voltage: AC 100/240 V ( 50/60 Hz )
Operational conditions
Operating temperature (T-T): 10 °C - 32 °C
Maximum operating temperature range (T-T): 32 °C
Recommended humidity operating range: 10 - 75% (non-condensing)
Network
Ethernet LAN: Netzwerkadapter - integriert
LAN controller: Realtek 2.5Gb Ethernet
Input device
Movement detection technology: Optical
Device interface: USB

Certificates
Compliance certificates	CE
Design
Chassis type	Tower
Placement supported	Vertical
Product colour	Black
Country of origin	Germany
Display
Display included
Expansion slots
PCI Express x1 (Gen 1.x) slots	1
PCI Express x16 (Gen 3.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
Graphics
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA RTX A2000
Discrete graphics card memory	6 GB
Discrete graphics memory type	GDDR6
Number of discrete graphics cards	1
Maximum on-board graphics card memory	2 GB
Graphics card DisplayPorts quantity	4
Discrete graphics card
On-board graphics card
Keyboard
Keyboard connectivity	Wired
Keyboard layout	QWERTY
Memory
Internal memory	16 GB
Maximum internal memory	128 GB
Internal memory type	DDR5-SDRAM
Memory slots	4x DIMM
Network
Ethernet LAN data rates	2500 Mbit/s
Ethernet LAN
Wi-Fi
Operational conditions
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	10 - 75%
Packaging content
Mouse connectivity	Wired
Input device model	TERRA wheel mouse optical
Mouse included
Mouse included on selected markets only
Keyboard included
Keyboard included on selected markets only
Performance
Market positioning	Everyday
Motherboard chipset	Intel Z790
Product type	Workstation
Ports & interfaces
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
DisplayPorts quantity	5
DisplayPort version	1.4
HDMI ports quantity	1
HDMI version	2.1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out
Line-in
Microphone in
S/PDIF out port
Power
Power supply	650 W
Power supply input voltage	100 - 240 V
Power supply input frequency	50 - 60 Hz
80 PLUS certification	80 PLUS Gold
Processor
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	12th gen Intel® Core™ i5
Processor model	i5-12600KF
Processor cores	10
Processor threads	16
Processor frequency	4.9 GHz
Performance cores	6
Efficient cores	4
Performance-core Max Turbo Frequency	4.9 GHz
Efficient-core Max Turbo Frequency	3.6 GHz
Performance-core base frequency	3.7 GHz
Efficient-core base frequency	2.8 GHz
Processor cache	20 MB
Processor cache type	Smart Cache
Bus type	DMI4
Number of processors installed	1
Processor base power	125 W
Maximum turbo power	150 W
Processor special features
CPU configuration (max)	1
Software
Operating system architecture	64-bit
Operating system installed	Windows 11 Pro
Storage
Total storage capacity	500 GB
Storage media	SSD
Optical drive type	DVD±RW
Number of storage drives installed	1
Total SSDs capacity	500 GB
Number of SSDs installed	1
SSD capacity	500 GB
SSD interface	M.2
Sustainability
Sustainability compliance
Weight & dimensions
Width	245 mm
Depth	617 mm
Height	598 mm
Weight	21.5 kg

---
