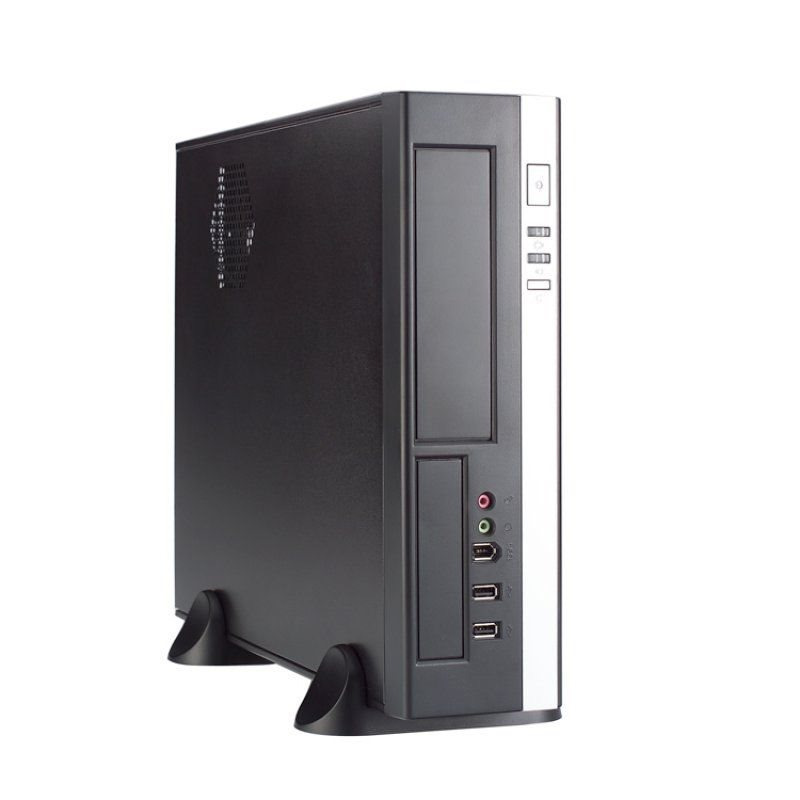

TERRA PC HOME 5200 content_copy

General
Processor model: CPU Intel Core Ultra 5 225
Operating system: Windows 11 Home
Software
Pre-installed software: 1 month trial version for new Microsoft® 365 user
Processor
Processor family: Intel® Core™ Ultra 5 Processor
Processor cores: Deka-Core (10 Cores)
Processor socket: FCLGA1851 Socket
Number of processors: 1
Memory
Internal memory: 16 GB
Memory layout (slots x size): 2 x 8 GB
Maximum internal memory: 256 GB
Memory clock speed: PC5600 MHz
Internal memory type: DDR5 SDRAM
Memory slots: 4 pieza(s)
Storage
Total storage capacity: 1 TB
HDD interface: 2x M.2 (Key M) 2280/2260/2242 PCIe 5.0 x4 mode, 4x SATA 6Gb/s ports, supports SATA Raid 0/1/5/10
RAID levels: RAID 0, 1, 5, 10 (No M.2 NVMe RAID support)
SSD interface: PCIe (NVMe)
SSD capacity: 1 TB
HDD capacity: 1 x 1 TB - SSD
Number of storage drives supported: 2
Storage media: SSD M.2
Performance
Series: Business - Slim Desktop
Noise level: 22,2 dB Idle-Mode
Audio output channels: 7.1 Channel Surround
Motherboard chipset: Intel® H610
Design
Chassis type: Small Form Factor
Certification: ISO 9001, Assembled in Germany
Compatibility: SMBios (DMI), EnergyStar 8.0), EN62368-1, EN55032, EN55035, EN61000-3-2/3, EN62623, 89/336/ECC
Keyboard form factor: TERRA Keyboard German Layout
Keyboard
Keyboard language: German
Connectivity technology: Wired
Device interface: USB
Technical details
Localization: German
Packaging content
Included Accessories: Manual, external psu, powercord EU, powercord UK, VESA mounting kit
Attention: German Keyboard
Expansion slots
Expansion slots: 1x PCIe 5.0 x16 slot
2x PCIe 4.0 x1 slots
Weight & dimensions
Height: 9.0 cm
Width: 32.6 cm
Depth: 33.2 cm
Weight: 6 kg
Other features
Number of drive bays: 1 front - 13.3 cm ( 13,3 cm ( 5,2 inch ) ) Slim-Format
2 internal - 6.35 cm ( 6,3 cm ( 2,5 inch ) )
Interface: Front: 2x USB 3.x, Line-Out, Mic-In
Back: 1x PS/2
1x HDMI, 2x DP
1x USB 3.2 Gen2 Type-A port (red), 2x USB 3.2 Gen1 ports, 3x USB 2.1/1.1 ports
1x RJ-45 port
3x audio jacks
Compatible operating systems: Windows 10, Windows 11
Motherboard manufacturer: Gigabyte B860M DS3H
Cooling type: TERRA Silent Cooler
Compliance industry standards: This appliance is classified as a Class B information technology equipment (ITE) and is intended primarily for use in residential and office environments. The CE mark confirms conformity with the following EU directives: (1) EMC Directive 2004/108/EC Electromagnetic Compatibility (2) Low Voltage Directive 2006/95/EC Electrical equipment designed for use within certain voltage limits.
Special features: Front: 2x USB 3.2 Gen 1, 1 x USB 3.2 Gen 1 Typ-C
Audio
TPM 2.0
Secure Boot
Windows Autopilot ready
Low-Profile Format PCIe
Mouse
Mouse included: Terra Mouse Corded
Graphics
On-board graphics adapter memory: Dynamisch GB
On-board graphics adapter maximum resolution: HDMI max. 4096x2160 @ 60Hz, DP max. 4096x2304 @ 60 Hz
Graphics card: Intel Graphics Intel UHD Graphics 730
Graphics adapter ports: 2x DP, 1x HDMI
Power
Power source: Power supply TFX-format 80 plus Bronce
Eligible for 24-7/ week
Energy efficiency 82%,85%,82%@115V, 82%,85%,82%@230V = 80 PLUS BRONZE @ 115V
Power consumption (standby): Ø 1.3 Watt (S3 Mode. Suspend to RAM. WOL aktiviert)
0.20 Watt Soft off (S5 Mode) W
Maximum input power: 400 W
Nominal power: Ø 30 Watt Long Idle-Mode
Ø116 kWh pro Jahr (Typical Energy Consumption)
Weitere Informationen zur Leistungsaufnahme siehe https://www.wortmann.de/green und/ oder in den Quicklinks zu diesem Produkt (sofern vorhanden)
AC adapter input voltage: AC 100/240 V ( 50/60 Hz )
Operational conditions
Intervalo de temperatura operativa: +23°C ±5°C
Maximum operating temperature range (T-T): 32 °C
Recommended humidity operating range: 10 - 80% (non-condensing)
Network
Ethernet LAN: RJ45
LAN controller: Intel I219V, WOL/PXE
Optical drive
Optical drive type: DVD-Writer
Input device
Movement detection technology: Optical
Device interface: USB

Audio
Audio system	High Definition Audio
Design
Chassis type	SFF
Expansion slots
Expansion slots	1x PCIe 5.0 x16 slot ¦ 2x PCIe 4.0 x1 slots
Features
Motherboard manufacturer	Gigabyte B860M DS3H
Graphics
On-board graphics card model	Intel® Graphics
Resolution description	HDMI max. 4096x2160 @ 60Hz, DP max. 4096x2304 @ 60 Hz
On-board graphics card
Keyboard
Keyboard language	German
Memory
Internal memory	16 GB
Maximum internal memory	256 GB
Internal memory type	DDR5-SDRAM
Memory layout (slots x size)	2 x 8 GB
Memory slots	4x DIMM
Memory clock speed	5600 MHz
Network
Ethernet LAN data rates	100,1000 Mbit/s
LAN controller	Intel I219V
Ethernet LAN
Operational conditions
Operating temperature (T-T)	18 - 28 °C
Operating relative humidity (H-H)	10 - 80%
Other features
Locale	German
Packaging content
Cables included	AC
Mouse included
Keyboard included
Performance
Market positioning	Business
Product type	PC
Trusted Platform Module (TPM) version	2.0
Audio output channels	7.1 channels
Sound pressure level	22.2 dB
Trusted Platform Module (TPM)
Ports & interfaces
DisplayPorts quantity	2
HDMI ports quantity	1
PS/2 ports quantity	1
Power
Power supply	400 W
Power supply input voltage	100 - 240 V
Power supply input frequency	50/60 Hz
Power consumption (standby)	1.3 W
Power consumption (off)	0.2 W
Power consumption (long idle)	30 W
80 PLUS certification	80 PLUS Bronze
Processor
Processor manufacturer	Intel
Processor family	Intel Core Ultra 5
Processor cores	10
Processor boost frequency	4.9 GHz
Processor cache	20 MB
Number of processors installed	1
Software
Operating system installed	Windows 11 Home
Compatible operating systems	Windows 10, Windows 11
Storage
Total storage capacity	1 TB
Storage media	SSD
Optical drive type	DVD±RW
Number of storage drives supported	2
SSD capacity	1 TB
SSD form factor	M.2
Storage options	2x M.2 (Key M) 2280/2260/2242 PCIe 5.0 x4 mode (1x 5.0 x4 mode / 1x 4.0 x4 mode) ¦ 4x SATA 6Gb/s ports, supports SATA Raid 0/1/5/10
RAID levels	5, 1, 0, 10
NVMe
RAID support
Weight & dimensions
Width	326 mm
Depth	332 mm
Height	90 mm
Weight	6 kg

---
