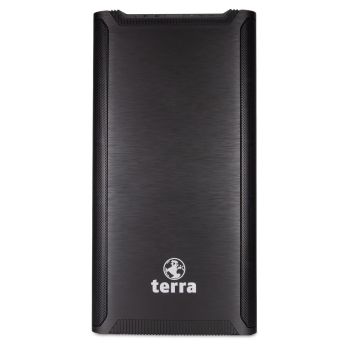

TERRA PC GAMER ELITE 2 content_copy

General
Processor model: Intel Core Ultra 5 245K / 14 Cores / 14 Threads / 26 MB Cache, bis zu 5.2 GHz
Processor
Processor family: Intel® Core™ Ultra 5 Processor
Processor cores: 14-Core
Processor socket: FCLGA1851 Socket
Number of processors: 1
Memory
Internal memory: 16 GB
Memory layout (slots x size): 1 x 16 GB
Maximum internal memory: 256 GB
Memory clock speed: PC5600 MHz
Internal memory type: DDR5 SDRAM
Memory slots: 4 pc(s)
Storage
Total storage capacity: 1 TB
HDD interface: 1x M.2 2280 PCIe 5.0 x4/x2, 1x M.2 2280 PCIe 4.0 x4/x2, 4x SATA 6Gb/s (RAID 0, 1, 5, 10 Support only for SATA)
RAID levels: RAID 0
RAID 1
RAID 5
RAID 10
SSD interface: PCIe 4.0
SSD capacity: 1 TB
HDD capacity: 1 x 1 TB - SSD
Storage media: SSD M.2
Performance
Series: Gamer
Product type: Personal-Computer
Audio output channels: 8-channel
Motherboard chipset: Intel B860 Express
Audio system: Realtek Audio CODEC High Definition Audio
Design
Chassis type: TERRA Pure Base 501 Black
Certification: ISO 9001, Assembled in Germany
Compatibility: SMBios (DMI), EnergyStar (Valid only for U.S.), EN62368-1, EN55032, EN55035, EN61000-3-2/3, EN62623, 89/336/ECC
Keyboard form factor: Cooler Master Desktop Gaming Devastator 3 black RGB
Keyboard
Device interface: USB
Technical details
Localization: International
Packaging content
Included Accessories: Quick Start Guide, Powercord EU
Keyboard language: German. Other languages selectable
Expansion slots
Expansion slots: 1x PCIe 5.0 x16 slot
2x PCIe 4.0 x1 slots
Weight & dimensions
Altura: 46.3 cm
Ancho: 23.1 cm
Profundidad: 45.0 cm
Weight: 11.5 kg
Other features
Number of drive bays: intern: 2x 8,9 cm ( 3,5 inch ) / 5x 6,3 cm ( 2,5 inch )
Interface: Front: 2x USB 3.2 Gen1 Type-A, 1x USB 3.2 Gen 2 Type C, Line-Out, Mic-In
Back: 1x PS/2
1x HDMI, 2x DP
1x USB 3.2 Gen2 Type-A port (red), 2x USB 3.2 Gen1 ports, 3x USB 2.1/1.1 ports
1x RJ-45 port
3x audio jacks
Compatible operating systems: Windows 10, Windows 11
Motherboard manufacturer: Gigabyte B860M DS3H
Cooling type: Noctua NH-U9S
Special features: TPM header
3x addressable RGB Gen2 LED strip headers, 1x RGB LED strip header
1x Q-Flash Plus button
1x Clear CMOS jumper
Graphics
On-board graphics adapter memory: 16 GB GDDR7
On-board graphics adapter maximum resolution: Max. 7680 x 4320
Graphics card: GIGA VGA RTX5060TI WINDFORCE-2-MAX-OC 16G 3xDP/HDMI
Graphics adapter ports: 3x Display Port
1x HDMI
Multi Monitor: Ja
Power
Power source: ATX 3.1 Netzteil 80 Plus Bronze, geeignet für Standardbetrieb max. 60 Stunden/Woche
Energieeffizienz (bei Auslastung 20 %/ 50 % / 100 %): 82 % / 86 % / 82 %
Maximum input power: 750 Watt W
AC adapter input voltage: 200/240 V (50 Hz)
Operational conditions
Intervalo de temperatura operativa: 5 °C - 35 °C
Recommended humidity operating range: 10 - 75% (non-condensing)
Network
Ethernet LAN: LAN adapter RJ45 integrated
LAN controller: 1x Realtek 2.5Gb RJ-45
Wi-Fi standards: Wi-Fi 7, Bluetooth 5.3
Data link protocols: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Optical drive
Optical drive type: Ohne optisches Laufwerk
Input device
Movement detection technology: Optical
Device interface: USB

Audio
Audio system	High Definition Audio
Design
Product colour	Black
Expansion slots
PCI Express x1 (Gen 4.x) slots	2
PCI Express x16 (Gen 5.x) slots	1
Expansion slots	1x PCIe 5.0 x16 slot ¦ 2x PCIe 4.0 x1 slots
Features
Motherboard manufacturer	Gigabyte B860M DS3H
Graphics
Discrete graphics card model	NVIDIA RTX 5060 Ti
Discrete graphics card memory	16 GB
Discrete graphics memory type	GDDR7
On-board graphics card model	Not available
Resolution description	Max. 7680 x 4320
Discrete graphics card
On-board graphics card
Keyboard
Keyboard language	German
Memory
Internal memory	16 GB
Maximum internal memory	256 GB
Internal memory type	DDR5-SDRAM
Memory layout (slots x size)	1 x 16 GB
Memory clock speed	5600 MHz
Network
Ethernet LAN data rates	100,1000,2500 Mbit/s
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Bluetooth version	5.3
Ethernet LAN
Wi-Fi
Bluetooth
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 75%
Other features
Locale	International repository
Packaging content
Cables included	AC
Mouse included
Keyboard included
Performance
Market positioning	Gaming
Product type	PC
Audio output channels	8.0 channels
Ports & interfaces
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
DisplayPorts quantity	3
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
PS/2 ports quantity	1
Line-out
Line-in
Power
Power supply	750 W
Power supply input voltage	200 - 240 V
Power supply input frequency	50 Hz
80 PLUS certification	80 PLUS Bronze
Processor
Processor manufacturer	Intel
Processor family	Intel Core Ultra 5
Processor generation	Intel Core Ultra (Series 2)
Processor model	245K
Processor cores	14
Processor threads	14
Processor boost frequency	5.2 GHz
Performance cores	6
Efficient cores	8
Performance-core Max Turbo Frequency	5.2 GHz
Efficient-core Max Turbo Frequency	4.6 GHz
Performance-core base frequency	4.2 GHz
Efficient-core base frequency	3.6 GHz
Processor cache	26 MB
Processor cache type	Smart Cache
Number of processors installed	1
Processor socket	LGA 1851 (Socket V1)
Processor base power	125 W
Maximum turbo power	159 W
Software
Operating system installed	Windows 11 Home
Compatible operating systems	Windows 10, Windows 11
Storage
Total storage capacity	1 TB
Storage media	SSD
SSD capacity	1 TB
SSD interface	PCI Express 4.0
SSD form factor	M.2
Storage options	1x M.2 2280 PCIe 5.0 x4/x2, 1x M.2 2280 PCIe 4.0 x4/x2, 4x SATA 6Gb/s (RAID 0, 1, 5, 10 Support only for SATA)
RAID levels	5, 1, 0, 10
Optical drive type
RAID support
Weight & dimensions
Width	231 mm
Depth	450 mm
Height	463 mm
Weight	11.5 kg

---
