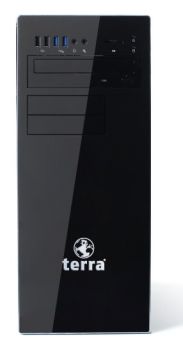

TERRA PC GAMER ELITE 1 content_copy

General
Processor model: CPU Intel Core Ultra 5 225
Operating system: Windows 11 Home
Processor
Processor family: Intel® Core™ Ultra 5 Processor
Processor cores: Deka-Core (10 Cores)
Processor socket: FCLGA1851 Socket
Number of processors: 1
Memory
Internal memory: 16 GB
Memory layout (slots x size): 1 x 16 GB
Maximum internal memory: 128 GB
Memory clock speed: PC5600 MHz
Internal memory type: DDR5 SDRAM
Memory slots: 4 pc(s)
Memory form factor: DIMM, 288-PIN
Storage
Total storage capacity: 1 TB
HDD interface: 2x M.2 (Key M) 2280/2260/2242 PCIe 5.0 x4 mode (1x 5.0 x4 mode / 1x 4.0 x4 mode)
4x SATA 6Gb/s ports, supports SATA Raid 0/1/5/10
RAID levels: RAID 0
RAID 1
RAID 5
RAID 10
Card reader integrated: SD/ SDHC/ SDXC
SSD interface: PCIe 4.0
SSD capacity: 1 TB
HDD capacity: 1 x 1 TB - SSD
Compatible memory cards: SD-Speicherkarte, SDHC-Speicherkarte
Storage media: SSD M.2
Performance
Series: Gamer
Product type: Personal-Computer
Noise level: 25.4 dB(A) im Operation Office-Mode ohne ODD-Zugriff
Audio output channels: 8-channel
Motherboard chipset: Intel B760
Design
Chassis type: Mid tower
Certification: ISO 9001, Assembled in Germany
Compatibility: SMBios (DMI), EnergyStar (Valid only for U.S.), EN62368-1, EN55032, EN55035, EN61000-3-2/3, EN62623, 89/336/ECC
Keyboard
Connectivity technology: Wired
Device interface: USB
Packaging content
Included Accessories: Quick Start Guide, Powercord EU
Expansion slots
Expansion slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (supports x4), 1x PCIe 4.0 x1
Weight & dimensions
Height: 44 cm
Width: 18 cm
Depth: 42 cm
Weight: 11 kg
Other features
Interface: Front: 2x USB A, Audio, back: 1x USB C, 1x USB A 3.2, 2x USB 2.0, 2x DP, 1x HDMI, 2x PS/2, 1x RJ-45, 3x Audio
Compatible operating systems: Windows 10, Windows 11
Motherboard manufacturer: ASUS Pro B860M-C-CSM 24/7 ready
Cooling type: TERRA Silent Heatpipe Cooler
Special features: 4x USB in Front
TPM 2.0
Secure Boot
Mouse
Mouse included: TERRA Wheel optical by Cherry
Graphics
On-board graphics adapter memory: 6 GB DDR6
On-board graphics adapter maximum resolution: Max. 7680 x 4320
Graphics card: GIGA VGA 6GB RTX3050 WINDFORCE OC-6GD 2xDP/2xHDMI
On-board graphics card model: Plug-in card
On-board graphics card: Plug-in-card PCI-Express
Graphics adapter ports: 2x Display Port
2x HDMI
Supports Quad-Monitoring
Power
Power source: ATX power supply. Meets 80-plus Bronce
Eligible for regular business use max. 60h/ week
Energy efficiency (Workload 10 %/ 20 %/ 50 % / 100 %): 82 %/ 82 % / 85 % / 82 %
Power consumption (standby): Ø 1.9 Watt (Sleep Mode S3, Suspend to RAM, WOL aktiviert)
0,25 Watt Soft off (S5 Mode)
Maximum input power: 650 W
Nominal power: Ø 39 Watt Idle-Mode
Ø 167 kWh a year (TEC = Typical Energy Consumption)
Further information regarding Energy consumption see www.wortmann.de/green and/ or Quicklinks for this product (if available)
AC adapter input voltage: AC 230V ( 50 Hz )
Operational conditions
Intervalo de temperatura operativa: 5 °C - 35 °C
Recommended humidity operating range: 10 - 75% (non-condensing)
Network
Ethernet LAN: RJ45
LAN controller: Intel I219V, WOL/PXE
Data link protocols: Ethernet
Fast Ethernet
Gigabit Ethernet
Optical drive
Optical drive type: Ohne optisches Laufwerk
Input device
Movement detection technology: Optical
Device interface: USB

Audio
Audio system	High Definition Audio
Certificates
Certification	Assemblierung nach ISO9001 in Deutschland Kompatibilität: SMBios (DMI), EnergyStar 8.0, EN62368-1, EN55032, EN55035, EN61000-3-2/3, EN62623, 89/336/ECC
Design
Chassis type	Midi Tower
Product colour	Black
Cooling type	Active
Display
Display included
Expansion slots
PCI Express x1 (Gen 4.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
Expansion slots	1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (supports x4), 1x PCIe 4.0 x1
Features
Motherboard manufacturer	ASUS Pro B860M-C-CSM 24/7 ready
Graphics
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA GeForce RTX 3050
Discrete graphics card memory	6 GB
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® Graphics
On-board graphics card model	Intel® Graphics
Maximum on-board graphics card memory	6 GB
Resolution description	Max. 7680 x 4320
CUDA cores	2304
Graphics card HDMI ports quantity	1
Graphics card DisplayPorts quantity	2
Discrete graphics card
On-board graphics card
CUDA
Keyboard
Keyboard connectivity	Wired
Keyboard language	German
Memory
Internal memory	16 GB
Maximum internal memory	128 GB
Internal memory type	DDR5-SDRAM
Memory layout (slots x size)	1 x 16 GB
Memory slots	4x DIMM
Memory clock speed	5600 MHz
Network
Ethernet LAN data rates	100,1000 Mbit/s
LAN controller	Intel I219V
Ethernet LAN
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
AI software frameworks supported by NPU	OpenVINO, Windows ML, DirectML, ONNX RT, WebNN
NPU performance up to	13 TOPs
Sparsity support
Windows Studio effects support
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	10 - 75 °C
Operating relative humidity (H-H)	10 - 75%
Other features
Motherboard	ASUS Pro B860M-C-CSM 24/7 ready
Locale	German
Packaging content
Mouse connectivity	Wired
Cables included	AC
Mouse included
Keyboard included
Manual
Performance
Market positioning	Gaming
Motherboard chipset	Intel B860
Product type	PC
Trusted Platform Module (TPM) version	2.0
Audio output channels	8.0 channels
Sound pressure level	25.9 dB
Trusted Platform Module (TPM)
Ports & interfaces
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
DisplayPorts quantity	2
HDMI ports quantity	2
Ethernet LAN (RJ-45) ports	1
PS/2 ports quantity	2
Number of rear USB ports	4
Number of front USB ports	4
Number of front audio ports	2
Number of rear audio ports	3
Power
Power supply	650 W
Power supply input voltage	230 V
Power supply input frequency	50 Hz
Power consumption (standby)	1.9 W
Power consumption (off)	0.25 W
80 PLUS certification	80 PLUS Bronze
Processor
Processor manufacturer	Intel
Processor family	Intel Core Ultra 5
Processor generation	Intel Core Ultra (Series 2)
Processor model	225
Processor cores	10
Processor threads	10
Processor boost frequency	4.9 GHz
Performance cores	6
Efficient cores	4
Performance-core Max Turbo Frequency	4.9 GHz
Efficient-core Max Turbo Frequency	4.4 GHz
Performance-core base frequency	3.3 GHz
Efficient-core base frequency	2.7 GHz
Processor cache	20 MB
Processor cache type	Smart Cache
Number of processors installed	1
Processor socket	LGA 1851 (Socket V1)
Processor base power	65 W
Maximum turbo power	121 W
Software
Operating system installed	Windows 11 Home
Compatible operating systems	Windows 10, Windows 11
Storage
Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
SSD interface	PCI Express 4.0
SSD form factor	M.2
Compatible memory cards	SD, SDHC, SDXC
Storage options	2x M.2 (Key M) 2280/2260/2242 PCIe 5.0 x4 mode (1x 5.0 x4 mode / 1x 4.0 x4 mode) ¦ 4x SATA 6Gb/s ports, supports SATA Raid 0/1/5/10
RAID levels	5, 1, 0, 10
Optical drive type
Card reader integrated
RAID support
Weight & dimensions
Width	180 mm
Depth	420 mm
Height	440 mm
Weight	11 kg

---
