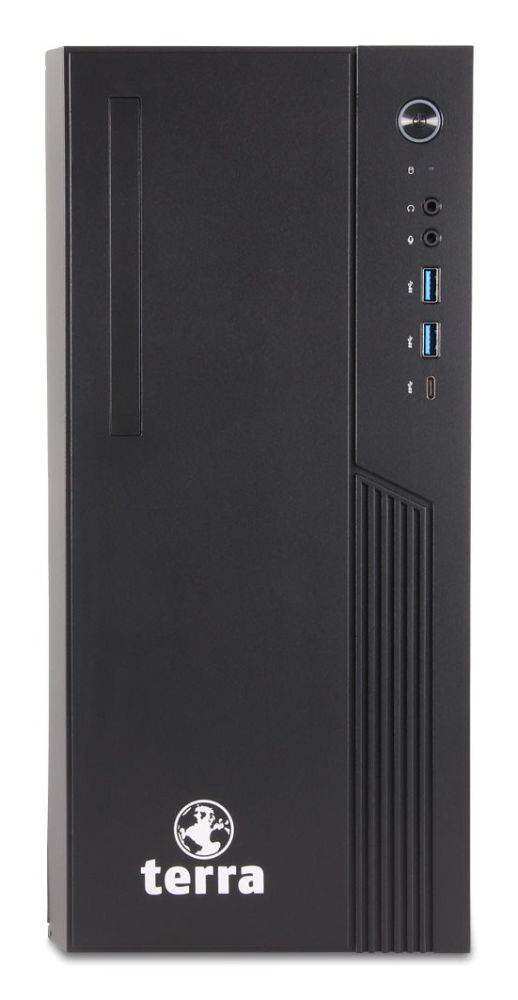

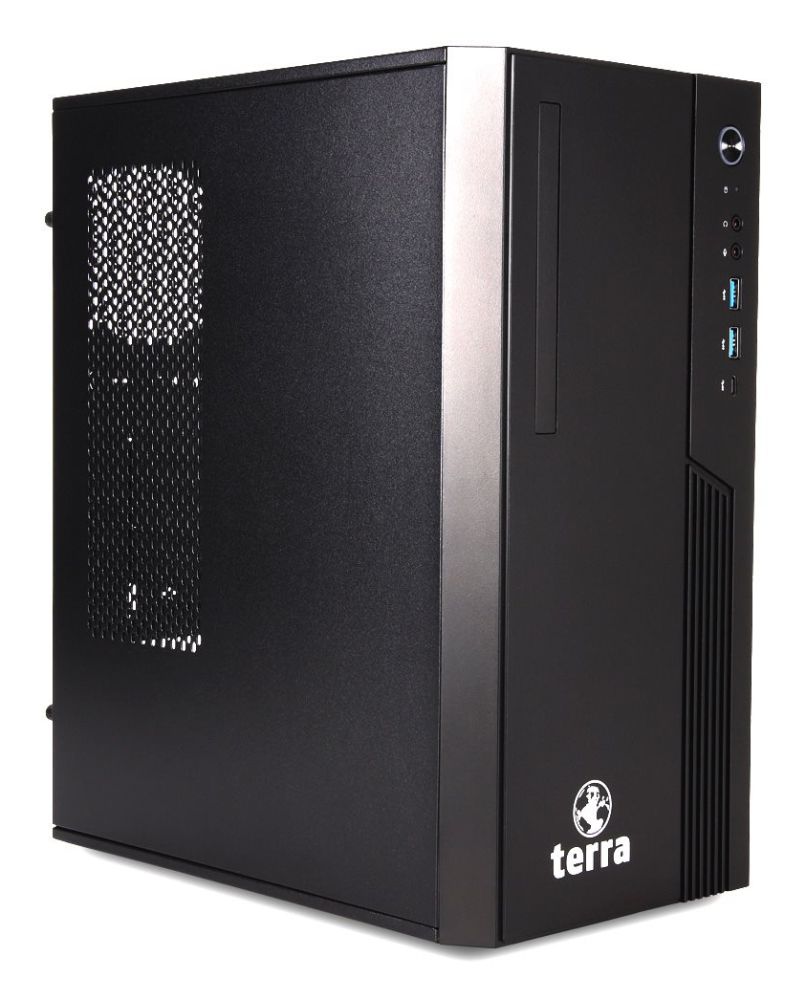

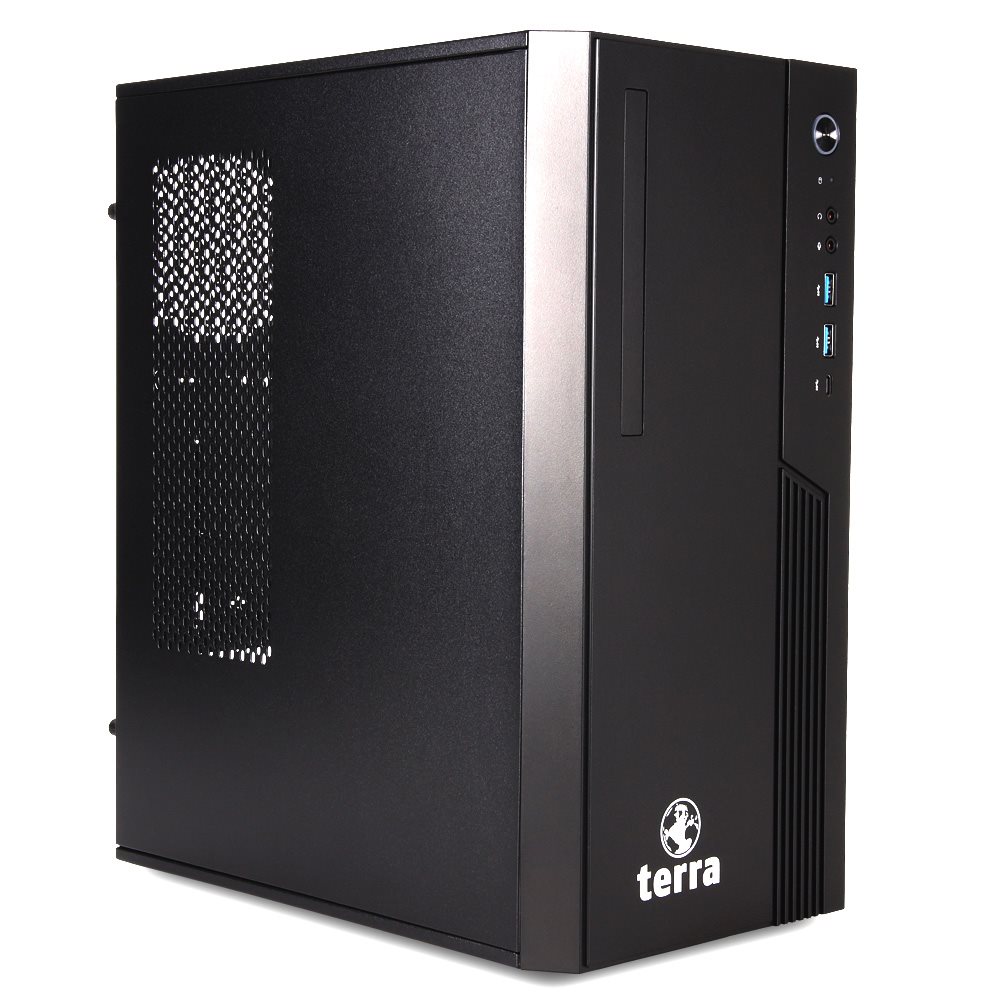

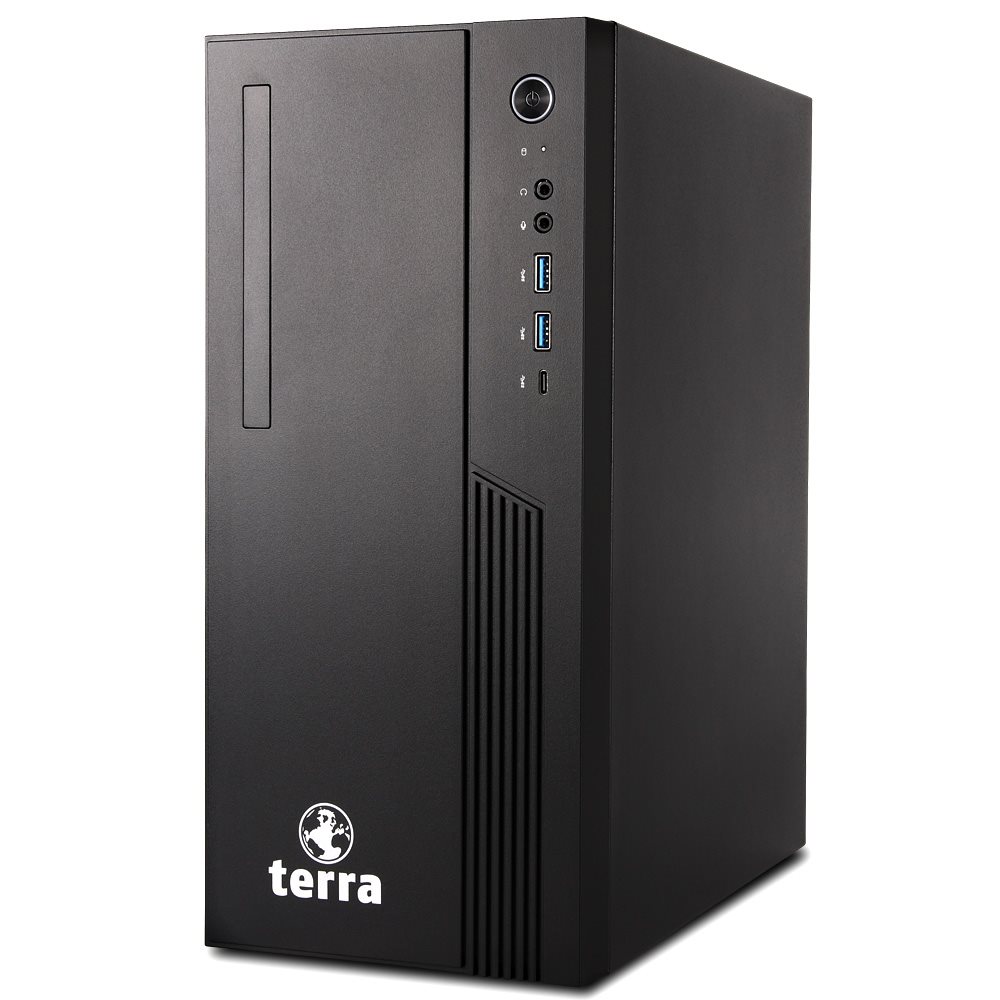

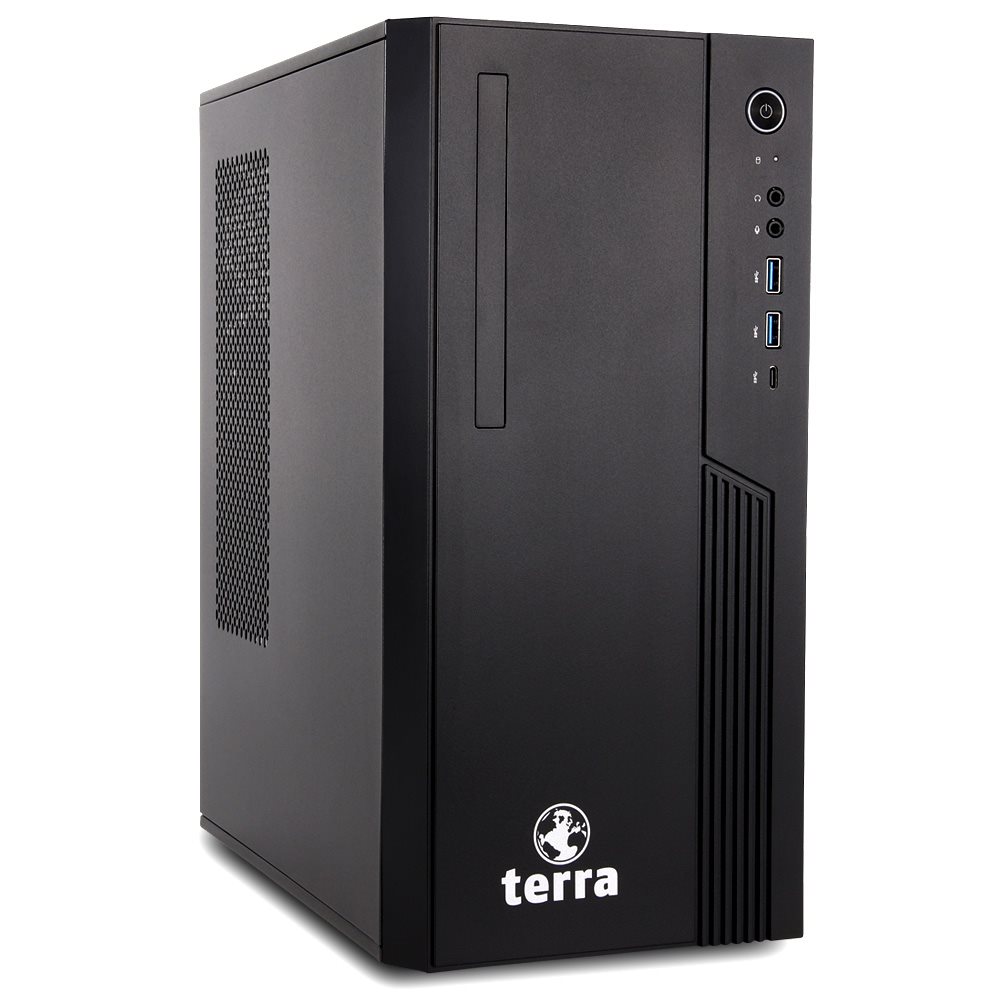

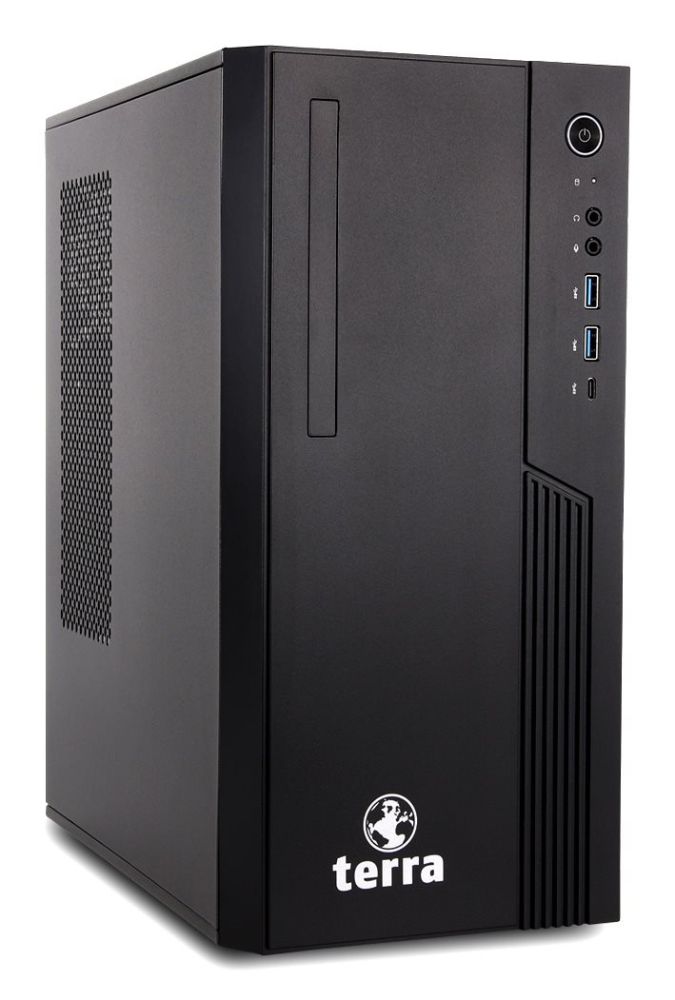

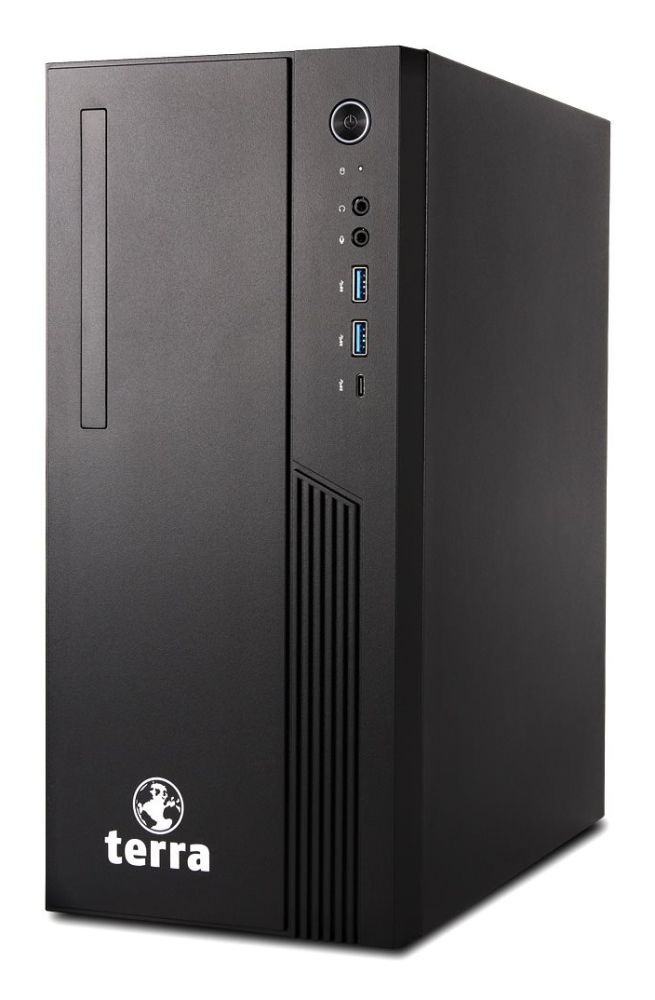

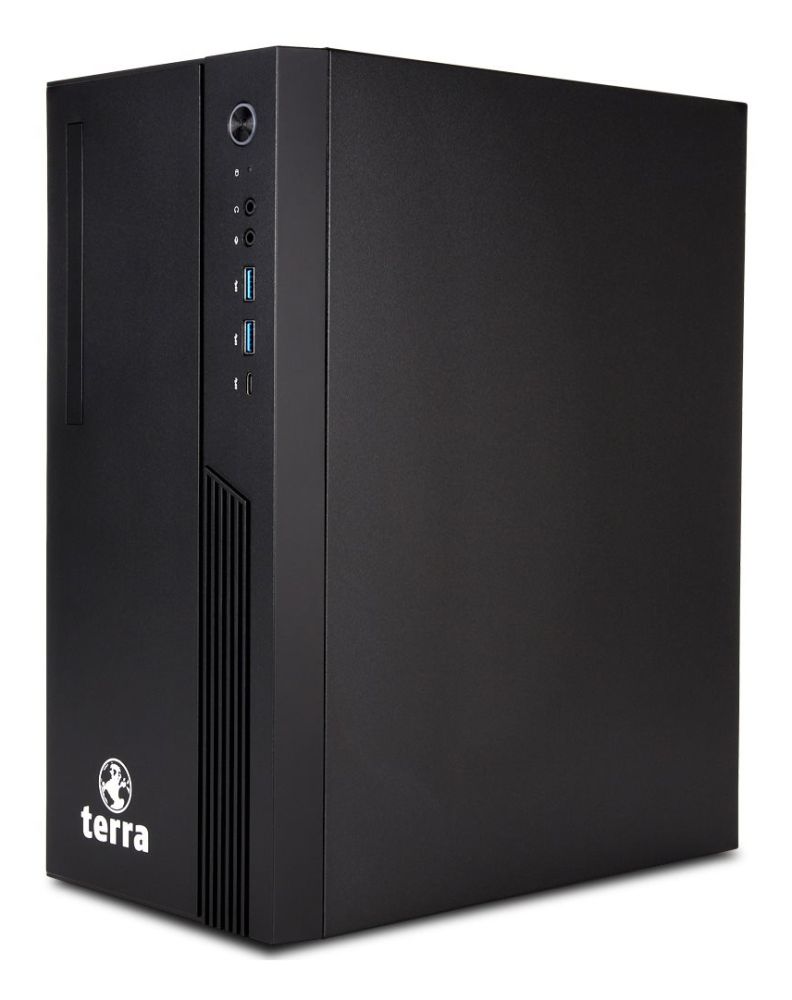

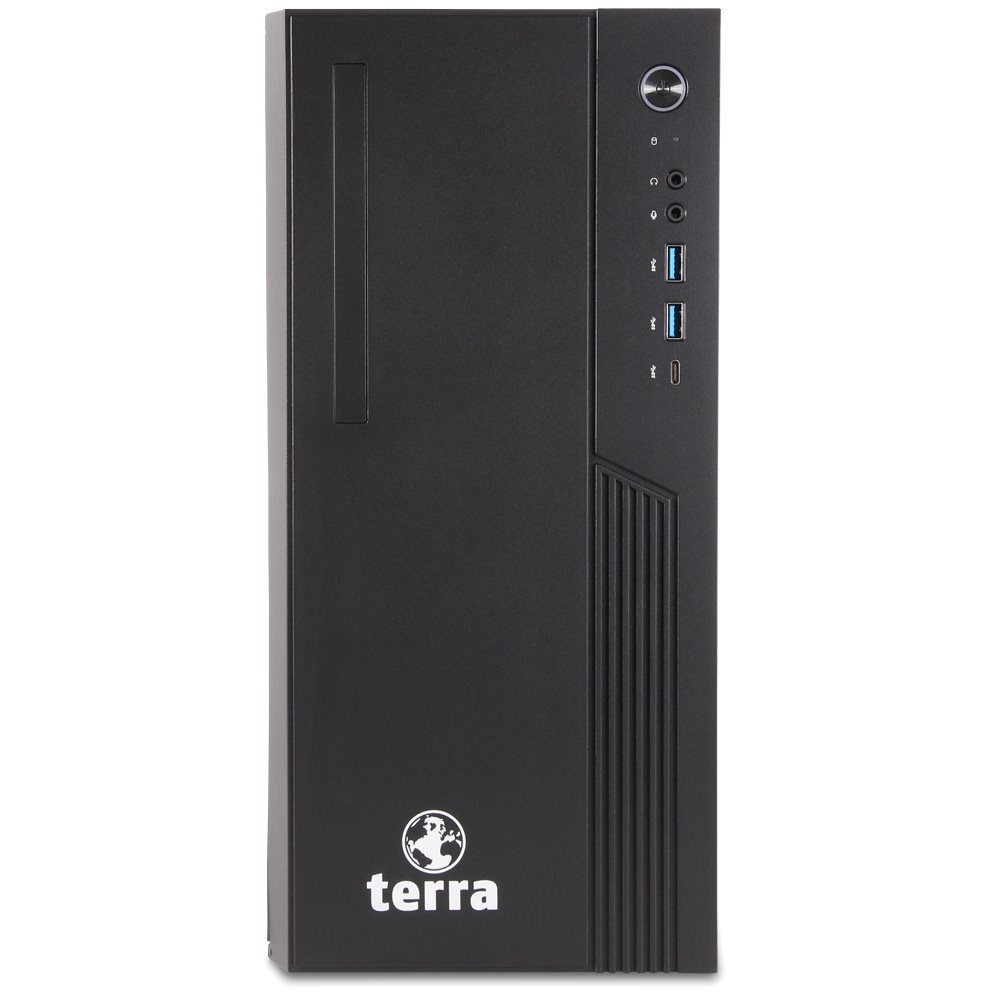

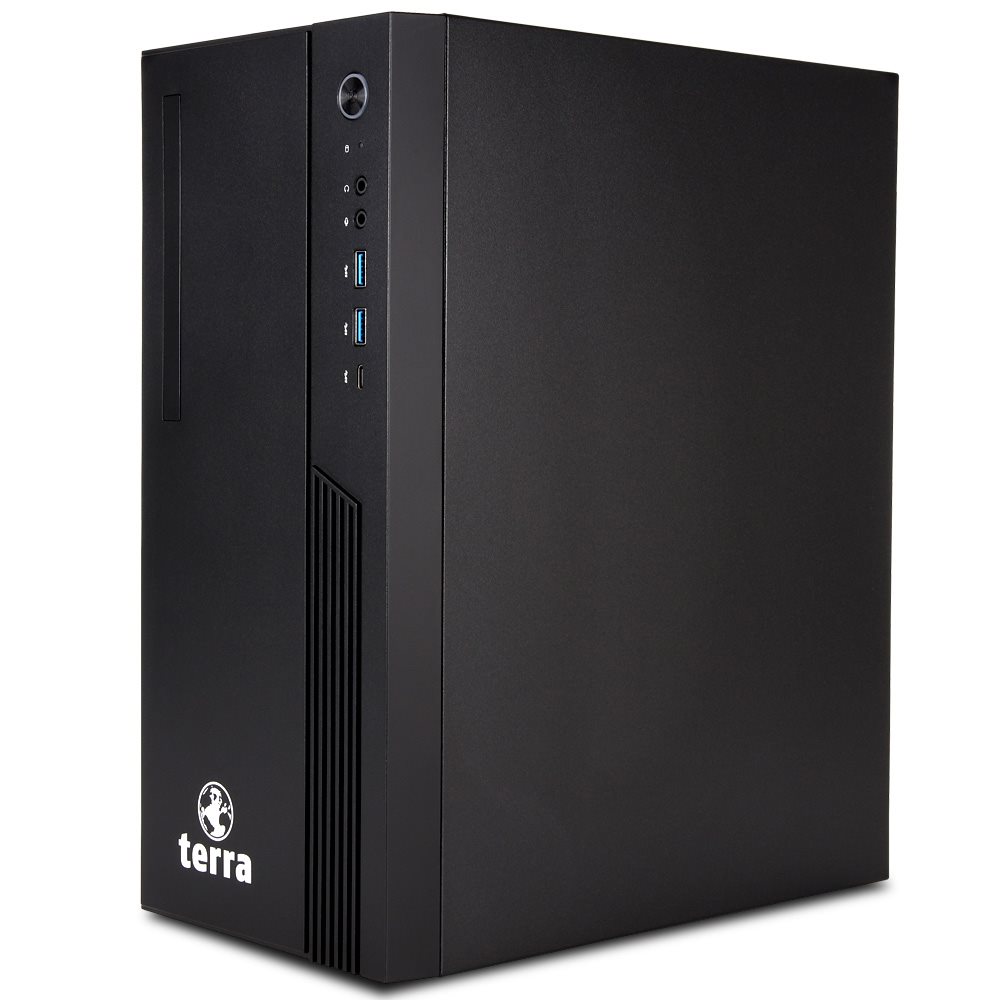

TERRA PC BUSINESS 4000 content_copy

General
Processor model: Intel Core i3 (14th. Gen.) 14100 / 4 Cores / 8 Threads / 12 MB Intel Smart Cache / bis zu 4.7GHz
Operating system: Windows 11 Pro
Software
Pre-installed software: 1 month trial version for new Microsoft® 365 user
Processor
Processor family: Core i3
Processor cores: Quad-Core
Processor socket: FCLGA1700 Socket
Number of processors: 1
Memory
Internal memory: 8 GB
Memory layout (slots x size): 1 x 8 GB
Maximum internal memory: 96 GB
Memory clock speed: PC5600 MHz
Internal memory type: DDR5
Memory slots: 2 pc(s)
Memory form factor: DIMM, 288-PIN
Storage
Total storage capacity: 500 GB
HDD interface: 1x M.2 PCIe 4.0 NVMe 2280, 4x SATA 6Gb/s
RAID levels: No Raid support
SSD interface: PCIe (NVMe)
SSD capacity: 500 GB
HDD capacity: 1 x 500 GB - SSD
Number of storage drives supported: 4x SATA-3 (6 Gb/s)
1x M.2 type 2242/ 2260/ 2280 (PCIe 4.0 x4 mode)
Storage media: SSD - M.2
Performance
Noise level: 22,7 dB (Idle-Mode)
Audio output channels: 7.1 Channel Surround
Motherboard chipset: Intel H610
Audio system: Realtek 7.1 Surround Sound High Definition Audio CODEC
Design
Chassis type: Micro tower
Certification: Assemblierung nach ISO9001 in Deutschland
Kompatibilität: SMBios (DMI), EnergyStar (Valid only for U.S.), EN62368-1, EN55032, EN55035, EN61000-3-2/3, EN62623, 89/336/ECC
Produkt entspricht den Kriterien des RAL UZ 78 (Blauer Engel)
Keyboard
Connectivity technology: Wired
Device interface: USB
PS/2
Technical details
Localization: German
Packaging content
Included Accessories: Quick Install Guide, Multi-country AC adapter (IEC plug types A, C, G & I), VESA mounting Kit
Expansion slots
Expansion slots: 1x PCIe 4.0 x16, 1x PCIe 3.0 x1
Weight & dimensions
Altura: 35.3 cm
Ancho: 16.8 cm
Profundidad: 30.5 cm
Peso: 5.2 kg
Other features
Number of drive bays: 1 front - 13.3 cm ( 13,3 cm ( 5,2 inch ) Ultra Slim )
1 internal - 8.9 cm ( 8,9 cm ( 3,5 inch )/ 6,3 cm ( 2,5 inch ) with adapter)
1 internal 6.4 cm (for 6,3 cm ( 2,5 inch ) SSD)
Interface: 1x USB 3.2 Gen2x1, 4x USB 2.0
1x DP, 1x HDMI, 1x VGA
1x Intel 1Gb Ethernet, 3x Audio jacks, 2x PS/2 (purple = Keyboard / green = Mouse)
Compatible operating systems: Windows 10, Windows 11
Motherboard manufacturer: ASUS Prime H610M-A
Cooling type: Active
Compliance industry standards: This appliance is classified as a Class B information technology equipment (ITE) and is intended primarily for use in residential and office environments. The CE mark confirms conformity with the following EU directives: (1) EMC Directive 2004/108/EC Electromagnetic Compatibility (2) Low Voltage Directive 2006/95/EC Electrical equipment designed for use within certain voltage limits.
Graphics
On-board graphics adapter memory: Dynamisch GB
On-board graphics adapter maximum resolution: DP max 4K@60Hz, HDMI max. 4K@60Hz, VGA max. 1920x1200
On-board graphics card model: Intel UHD Graphics 730
Graphics adapter ports: 1x DP, 1x HDMI, 1x VGA
Unterstützt Triple-Monitoring
Power
Power source: ATX power supply. Meets 80-plus Bronce
Eligible for regular business use max. 60h/ week
Energy efficiency (Workload 10 %/ 20 %/ 50 % / 100 %): 82 %/ 82 % / 85 % / 82 %
Power consumption (standby): Ø 1.7 Watt (S3 Mode, Suspend to RAM, WOL activated)
0,33 Watt Soft off (S5 Mode)
Maximum input power: 350 Watt
Nominal power: Ø 24 Watt Long Idle-Mode
Ø 92 kWh a year (TEC = Typical Energy Consumption)
Further information regarding Energy consumption see https://www.wortmann.de/green and/ or Quicklinks for this product (if available)
AC adapter input voltage: AC 230V ( 50 Hz )
Operational conditions
Operating temperature (T-T): 5 °C - 35 °C
Recommended humidity operating range: 10 - 75% (non-condensing)
Network
Ethernet LAN: Netzwerkadapter - integriert
LAN controller: Intel I219V, WOL/PXE
Optical drive
Optical drive type: DVD±RW
Input device
Movement detection technology: Optical
Device interface: USB
Notes
Additional Information: *The upgrade rollout plan is still being finalized but is scheduled to begin late in 2021 and continue into 2022. Specific timing will vary by device.

Audio
Audio system	High Definition Audio
Certificates
Certification	Assembled according to ISO 9001 in Germany. Compatibility: SMBios (DMI), Energy Star (Valid only for US), EN 62368-1, EN 55032, EN 55035, EN 61000-3-2/3, EN 62623, 89/336/ECC. Product meets the criteria of RAL UZ 78 (Blue Angel).
Design
Chassis type	Micro Tower
Product colour	Black
Cooling type	Active
Expansion slots
PCI Express x1 slots	1
PCI Express x16 (Gen 4.x) slots	1
Features
Motherboard manufacturer	ASUS Prime H610M-A
Graphics
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel UHD Graphics 730
Graphics card HDMI ports quantity	1
Graphics card DisplayPorts quantity	1
Discrete graphics card
On-board graphics card
Keyboard
Keyboard connectivity	Wired
Keyboard language	German
Memory
Internal memory	8 GB
Maximum internal memory	96 GB
Internal memory type	DDR5-SDRAM
Memory layout (slots x size)	1 x 8 GB
Memory clock speed	5600 MHz
Network
Ethernet LAN data rates	1000,10,100 Mbit/s
LAN controller	Intel I219V
Ethernet LAN
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 75%
Packaging content
Mouse connectivity	Wired
Cables included	AC
Mouse included
Keyboard included
Manual
Performance
Market positioning	Business
Motherboard chipset	Intel H610
Product type	PC
Audio output channels	7.1 channels
Sound pressure level	22.7 dB
Trusted Platform Module (TPM)
Ports & interfaces
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
DisplayPorts quantity	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
VGA (D-Sub) ports quantity	1
PS/2 ports quantity	2
Power
Power supply	350 W
Power supply input voltage	230 V
Power supply input frequency	50 Hz
Power consumption (typical)	24 W
Processor
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	Intel® Core™ i3 (14th gen)
Processor model	i3-14100
Processor cores	4
Processor threads	8
Processor boost frequency	4.7 GHz
Performance cores	4
Performance-core Max Turbo Frequency	4.7 GHz
Performance-core base frequency	3.5 GHz
Processor cache	12 MB
Processor cache type	Smart Cache
Number of processors installed	1
Processor socket	LGA 1700
Processor base power	60 W
Maximum turbo power	110 W
Software
Operating system installed	Windows 11 Pro
Compatible operating systems	Windows 10, Windows 11
Pre-installed software	1-month trial for new Microsoft® 365 customers
Storage
Total storage capacity	500 GB
Storage media	SSD
Optical drive type	DVD±RW
Number of storage drives installed	1
Total SSDs capacity	500 GB
Number of SSDs installed	1
SSD capacity	500 GB
SSD interface	PCI Express 4.0, M.2
Weight & dimensions
Width	168 mm
Depth	305 mm
Height	353 mm
Weight	5.2 kg

---
