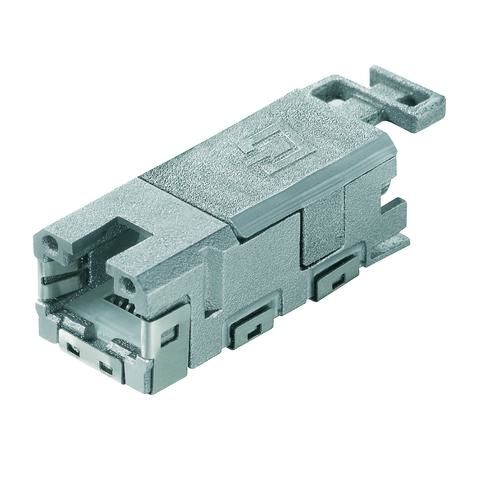

Telegärtner J80029A0000 Tele Gaertner socket, TP/RJ45, field assembly, CAT6A, STX, content_copy

AWG22-26 ------------------------ Cat.6 black for solid and stranded wire, * on order *, AWG22-26, STX IP20 RJ45 connector for field assembly ----------------------------------------------- --------- Technical Attributes Description STX IP20 RJ45 connector Cat.6 Solid / Stranded AWG22-26 notes with Farbcodierring black, field assembly Further technical information on the product descriptive RJ45 connector design in accor dance with ISO / IEC 60603 - 7-5 are in two versions. The 8-pin connector for Cat.6 cable of AWG22 stranded or solid wires AWG22 26-26 can be assembled in the field without tools to install or patch cables with a diameter up to 8.5 mm. It is equipped with a color-coded for EIA / TIA A / B and Profinet, providing a 360 ° shield contact. The rugged, small-sized die-cast zinc housing can be Provided in addition to marking with colored Kodierringen. Further More, the 8-pin connector is for Cat.6 cable with stranded conductor AWG24-27 and solid wires AWG24-27 program. It is assembled with a crimping tool and so Provides a shield and an easy assembly by Vorsortiereinsatz. acts The strain relief on the cable sheath, Malthus squeezing the veins is excluded. In addition, retrofit, 2-piece taper sleeves are available in different colors. Crimping tools for professional use are available on request. The multi-port capability for connection of the prefabricated cables in patch panels, switches, etc. on both plugs fully gegeben.Mechanische properties mating force <100 N Durability (mating cycles)> 750 material: Phosphor bronze material contacts: Contact plating 0.75 µ µ Au over Ni 2 material: zinc diecast housing plug material: use PA material: PA strain relief connection conditions copper conductor diameter: Solid wire 0.4 - 0.64 mm connection conditions copper conductor diameter: Stranded 0:48 - 0.76 mm wire diameter to 1.6 mm cable diameter 5.5 - 8.5 mm Material: shield - Crimping tool installation Electrical Properties Contact resistance <20 mOhm Insulation resistance> 500 MOhm Dielectric Strength: Contact Contact> 1,000 V Dielectric Strength: Contact screen> 1500 V Operating current at 50 ° C 1 A thermal and climatic characteristics Temperature range -40 ° C. .. 80 ° C
Type: 100007525
