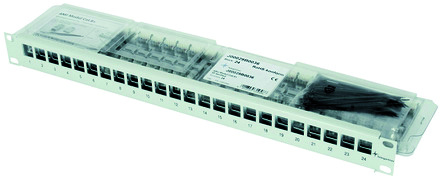

Telegärtner J02023K0027 19-inch module carrier 1 U with 24 AMJ modules Cat.6A Class EA ISO/IEC grey content_copy

The Telegärtner 48,3 cm ( 19 inch ) module carrier type 100007029 is a patch panel in format 1 U, finished in light grey RAL 7035, designed for structured cabling in distribution areas. It serves as a base for a consistent plug-in connection technology and enables individual design of network connections from floor distribution to end device connection points. The housing is made of sheet steel and powder-coated, resulting in a robust and durable surface. The front plate is printed with port numbering, facilitating identification of individual connections during operation.

Applications
This patch panel is suitable for use in industrial and commercial environments where reliable and high-performance network connections are required. It is particularly used in distribution and server rooms where structured and clear cabling is necessary. The integrated cable strain relief ensures proper cable routing and prevents unintended movement or stress on the connections.

Functions and Equipment in Detail
The device is standardly equipped with 24 AMJ modules K Cat.6A (ISO/IEC) T568A, enabling tool-free connection technology. These modules are compatible with RJ45, RJ11, and RJ12 connectors and offer a contact overbend protection performance of at least 750 insertion cycles. The optically monitored inspection of RJ45 contact heights ensures uniform and reliable contact quality. The modules are compliant for operation with 10 Gigabit-Ethernet (IEEE 802.3an) and support PoE+ according to IEEE 802.3at, enabling power supply of end devices via the network cable.

Technology Explained Simply
The transmission characteristics correspond to Category 6A according to IEC 60603-7-51 and were re-embedded tested according to IEC 60512-27-100. Link certification is performed according to Class EA (ISO/IEC) as per ISO/IEC 11801, confirming performance for high-speed applications. The integrated cable strain relief protects cables from mechanical stress and ensures proper routing. The potential connection is made via an included PE cable set, ensuring grounding of the device in the network.

Compatibility and Accessories
The patch panel is equipped with Keystone format cutouts, allowing individual fitting. Suitable accessories, such as labelling strips (article 100006145) in format 12x430 mm, can be used for marking connections. The modules are designed for use with RJ45/11/12 connectors, ensuring broad compatibility with common network devices.

Mounting and Installation
The device is designed for mounting in 48,3 cm ( 19 inch ) racks and occupies one unit height (1 U). The tool-free connection technology of the AMJ modules simplifies installation and maintenance. The integrated cable strain relief and included grounding set support safe and orderly installation in the distribution area.

Operational Advantages
The combination of robust housing, tool-free connection technology, and integrated cable strain relief ensures a reliable and maintenance-friendly network connection. Support for PoE+ enables power supply of end devices such as IP cameras or access points via the network cable, simplifying installation. Clear port numbering and the option for individual labelling increase clarity during operation.

General
Degree of protection	not specified
Colour	Light grey RAL 7035
Housing material	steel sheet powder-coated
Number of modules	24 piece
Module type	AMJ Modul K Cat.6A
Connection type	RJ45/RJ11/RJ12
Cable strain relief	Integrated
Potential connection	supplied PE conductor
Front plate	Printed with port numbering
Transmission standard	Cat.6A ISO/IEC
Link certification	Class EA ISO/IEC
Ethernet standard	10 Gigabit-Ethernet IEEE 802.3an
PoE support	PoE+ IEEE 802.3at
Contact bend protection	750 insertion cycles
Connection system	tool-free
Rack format	19" 1 HE

---
