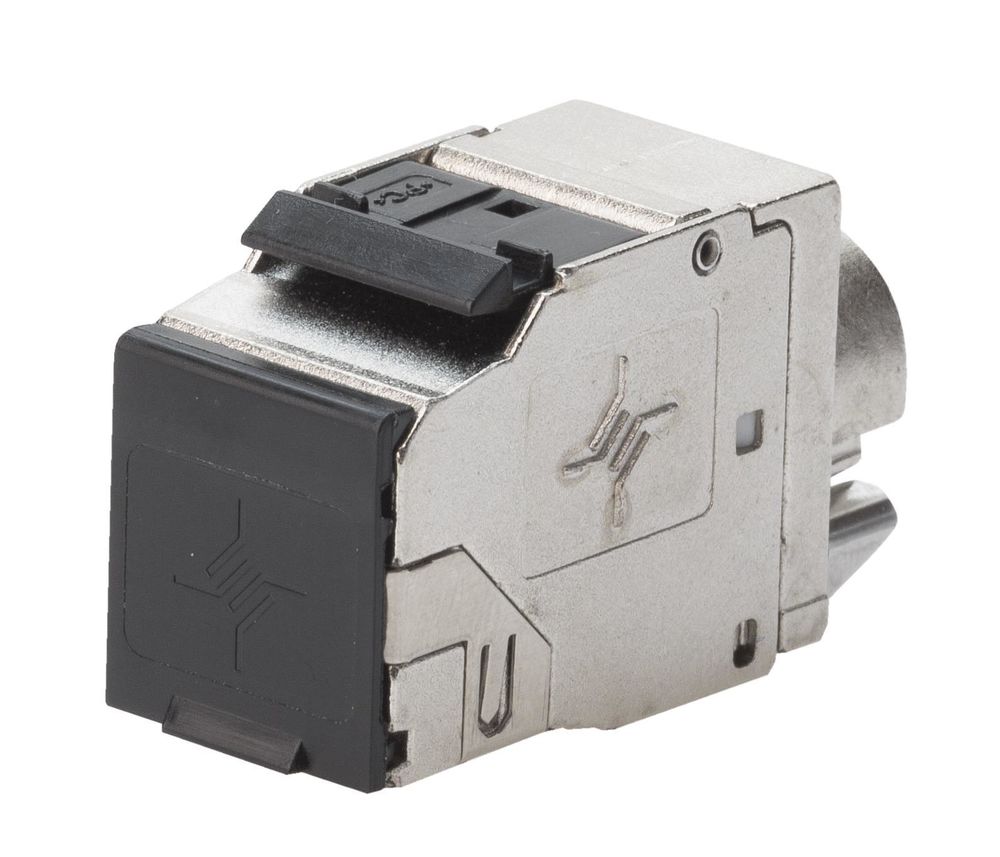

Telegärtner J00029A8000 TEGA AMJ module Cat.8.1 T568A/B
|
45,68 EUR |
|||||||||||
|
( 54,36 EUR incl. VAT ) ≈ £38.83 | ≈ $51.30 plus delivery charges: 53,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Sales unit: 2 pieces | |||||||||||
| Lieske Part No.: | 1893519 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | J00029A8000 | ||||||||||
| UPC/EAN: | 4018359491710 | ||||||||||
| Weight: | 0.123 kg | ||||||||||
| Type: | J00029A8000 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Telegärtner J00029A8000:
The trend towards ever higher transmission rates is increasing due to the rapidly increasing use of intelligent, mobile devices. The expansion of backbone networks and decentralized data centers is not just a logical step, but an absolute necessity. The latency times required for future applications, such as in the area of transport infrastructure and road users, mean that data rates of ten gigabits per second, which the 10GBASE-T Ethernet variant offers, are no longer sufficient in many cases. The Institute of Electrical and Electronics Engineers (IEEE) responded to this and developed the Ethernet variants 25GBASE-T with 25 Gbit/s and 40GBASE-T with 40 Gbit/s over twisted pair cables. Due to the high requirements for the attenuation budget, the maximum length of the transmission path is only 30 meters, which is why the two new Ethernet variants are mainly suitable for data centers, server rooms and for connecting switches to each other.
Performance characteristics:
Category 8.1/Class I according to ISO/IEC 11801-01,
connector according to IEC 60603-7 series RJ45 8P8C,
25/40GBase-T according to IEEE 802.3bq, backwards compatible with
Class
EA according to ISO/IEC 11801-1 (Permanent Link up to 90 m and Channel up to 100 m),
service life = 750 mating cycles,
shielding housing material: zinc die-cast nickel-plated,
cable outer diameter: 6 - 10 mm,
temperature range: -40°C to 70°C,
Power over Ethernet plus (PoE+) according to IEEE 802.3at,
Cu conductor diameter: solid wire 0.54 - 0.64 mm (AWG23 - 22/1) wire diameter: 1.0 - 1.6 mm,
IP20
Notes: RJ45 connection module with fully metal cable clamp, ideal for the assembly of installation cables Cat.8.1/Cat.8.2
Fire protection class: Not relevant
Burning droplets: Not relevant
Smoke development: Not relevant
Acid development: Not relevant
Short name: AMJ module Cat.8.1 T568A/B
The item price shown refers to 2 pieces Telegärtner J00029A8000
Performance characteristics:
Category 8.1/Class I according to ISO/IEC 11801-01,
connector according to IEC 60603-7 series RJ45 8P8C,
25/40GBase-T according to IEEE 802.3bq, backwards compatible with
Class
EA according to ISO/IEC 11801-1 (Permanent Link up to 90 m and Channel up to 100 m),
service life = 750 mating cycles,
shielding housing material: zinc die-cast nickel-plated,
cable outer diameter: 6 - 10 mm,
temperature range: -40°C to 70°C,
Power over Ethernet plus (PoE+) according to IEEE 802.3at,
Cu conductor diameter: solid wire 0.54 - 0.64 mm (AWG23 - 22/1) wire diameter: 1.0 - 1.6 mm,
IP20
Notes: RJ45 connection module with fully metal cable clamp, ideal for the assembly of installation cables Cat.8.1/Cat.8.2
Fire protection class: Not relevant
Burning droplets: Not relevant
Smoke development: Not relevant
Acid development: Not relevant
Short name: AMJ module Cat.8.1 T568A/B
The item price shown refers to 2 pieces Telegärtner J00029A8000
Questions & answers
What is the delivery time of Telegärtner J00029A8000 TEGA AMJ module Cat.8.1 T568A/B?
The article Telegärtner J00029A8000 TEGA AMJ module Cat.8.1 T568A/B is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Telegärtner J00029A8000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Telegärtner J00029A8000 TEGA AMJ module Cat.8.1 T568A/B always at the best possible price. We can give you a discount of 2% on Telegärtner J00029A8000 TEGA AMJ module Cat.8.1 T568A/B if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 10 pieces of Telegärtner J00029A8000 TEGA AMJ module Cat.8.1 T568A/B we can offer you a price of 44,65 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
How many units does the article contain?
Telegärtner J00029A8000 TEGA AMJ module Cat.8.1 T568A/B is offered by us in a sales unit of 2 pieces If you need a larger quantity, you can contact us at any time. We will make a special offer for you
