Telegärtner connector, TP / RJ45, Field-assembly, CAT6A, MFP8-IE, T568B, 5,5-10mm cable diameter, content_copy

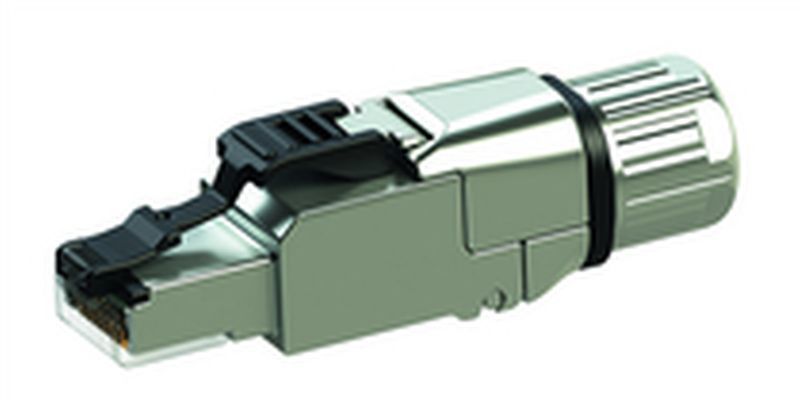

The Telegärtner J00026A5003 is a field-terminatable, shielded RJ45 connector of Category 6A, designed as MFP8 IE T568B. It is intended for connecting network cables in structured cabling applications and is designed for use in professional network infrastructures. The connector allows direct termination on-site without prior manufacturing, thus saving time and material costs. It is specifically designed for cables with a diameter of 5.0 to 10.0 mm and supports both solid and stranded conductors in cross-sections AWG 26/1 to 24/1 and AWG 27/7 to 24/7.

Applications
This connector is suitable for use in networks requiring high bandwidth and signal integrity, such as in office buildings, industrial facilities, or corporate IT infrastructures. Category 6A enables data transmission rates up to 10 Gbit/s over distances up to 100 meters. The shielded design (MFP8 IE) protects data transmission from electromagnetic interference, which is particularly beneficial in environments with high electromagnetic noise, such as near machinery or electrical equipment.

Features and Specifications in Detail
The connector features a robust zinc die-cast enclosure, which withstands mechanical stress and wear during daily operation. The 3-stage cable strain relief ensures secure and stable cable fixation within the connector, guaranteeing a reliable mechanical connection. An integrated 4-chamber wire manager enables organized and error-free assignment of individual conductors according to the T568B wiring standard. The punch-down contacts are designed for use with both solid and stranded conductors, allowing flexible application with different cable types. A pre-installed protective cap shields the contacts from contamination and damage until installation.

Technology Explained Simply
The designation MFP8 IE T568B describes the specific form factor and contact wiring. MFP8 refers to a shielded RJ45 connector with integrated shield connection, while IE indicates integrated grounding. The T568B wiring standard is a common specification for conductor assignment in network cables, widely used in many countries, especially in Germany. Category 6A ensures high transmission performance with minimal signal distortion, which is crucial for stable and fast network connections. Field-terminatability means the connector can be wired directly at the installation site, eliminating the need for pre-terminated cables.

Compatibility and Accessories
The connector is compatible with cables in cross-sections AWG 26/1 to 24/1 and AWG 27/7 to 24/7. As an accessory, a replacement wire manager (Type: Connector, TP/RJ45, field-terminatable, replacement wire manager, MFP8, T568B) is available for use in case of damage or loss of the integrated wire manager. This accessory is specifically designed for use with the Telegärtner J00026A5003.

Installation and Mounting
Installation involves inserting the cable into the connector, where the 3-stage cable strain relief securely holds the cable. The cable is then terminated using the 4-chamber wire manager, with conductors assigned according to the T568B standard. The punch-down contacts ensure a secure electrical connection. The pre-installed protective cap should be removed before installation. No special tools are required for mounting, although careful wiring is necessary to avoid errors.

Operational Advantages
The connector offers high mechanical stability thanks to the zinc die-cast enclosure and 3-stage cable strain relief. The shielded design reduces interference and ensures reliable data transmission. Field-terminatability enables flexible and cost-efficient cabling on-site. The pre-installed protective cap protects the contacts until installation, extending the connector’s lifespan. Compatibility with various cable types increases application flexibility.
