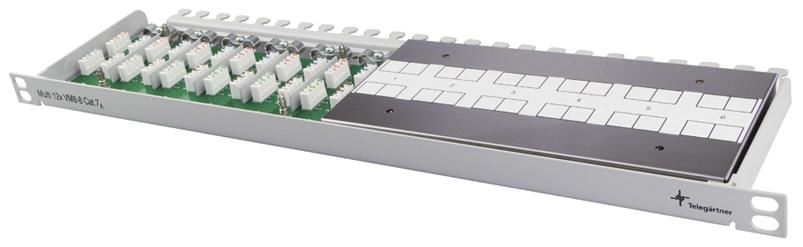

Telegärtner 100023276 Telegaertner 19 'interconnect module 12xVM8-8 J00060A0072
|
301,45 EUR |
|||||||||||
|
( 358,73 EUR incl. VAT ) ≈ £255.33 | ≈ $337.62 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |||||||||||
| In Stock: 2 pieces | |||||||||||
| Lieske Part No.: | 792762 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 100023276 | ||||||||||
| UPC/EAN: | 4018359289454 | ||||||||||
| Weight: | 1.606 kg | ||||||||||
| Type: | 100023276 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Telegärtner 100023276:
Connection modules are designed for the direct, permanent connection of two cables. Typical applications include extending cables when distributors or junction boxes are moved, and repairing damaged cables.
It is much easier, faster and more cost-effective to professionally extend or repair existing cables than to lay and connect new cables, especially if fire barriers have to be opened and closed again. Operational interruptions are also reduced to a minimum.
Telegärtner connection modules ensure that the full performance of the cabling route is maintained up to and including Class FA (ISO/IEC) and 1000 MHz. With their excellent transmission values, compact dimensions and robust construction, they are suitable for cabling in office buildings, apartments, industrial areas as well as for technical building equipment and building automation.
Performance features:
Class FA (ISO/IEC) (1000 MHz),
suitable for 10 Gigabit Ethernet 10GBASE-T in accordance with IEEE 802.3,
suitable for Power over Ethernet Plus PoE+ in accordance with IEEE 802.3at,
for shielded and unshielded cables,
IDC insulation displacement contacts suitable for solid conductors AWG26/1 to AWG22/1,
wire diameter 0.7 to 1.6 mm,
wire pairs can be routed to the terminal while retaining the twisted pair, can
be reconnected up to fifty times,
insulation displacement contacts on a common circuit board,
grounding option directly on the circuit board with M4 screw,
color coding T568A and T568B,
temperature range -40 °C to +70 °C,
EMC-safe in accordance with DIN EN 61000-6-1 and DIN EN 61000-6-2,
1/2 HE -19' Insert housing made of sheet steel, powder-coated light grey similar to RAL 7035,
alternative wall mounting through pre-punched holes in the base plate,
up to 12 incoming and 12 outgoing cables,
cable feed and exit from the rear,
SAP article name CU-CM Multi VM8-8 C7A AWG26-22
Notes: 19' 1/2 HE multi-connection module for 12 shielded or unshielded installation cables
Fire protection class: Not relevant
Burning droplets: Not relevant
Smoke development: Not relevant
Acid development: Not relevant
Color: light grey RAL 7035
Short name: Multi 12x VM 8-8 Cat.7A (ISO/IEC)
It is much easier, faster and more cost-effective to professionally extend or repair existing cables than to lay and connect new cables, especially if fire barriers have to be opened and closed again. Operational interruptions are also reduced to a minimum.
Telegärtner connection modules ensure that the full performance of the cabling route is maintained up to and including Class FA (ISO/IEC) and 1000 MHz. With their excellent transmission values, compact dimensions and robust construction, they are suitable for cabling in office buildings, apartments, industrial areas as well as for technical building equipment and building automation.
Performance features:
Class FA (ISO/IEC) (1000 MHz),
suitable for 10 Gigabit Ethernet 10GBASE-T in accordance with IEEE 802.3,
suitable for Power over Ethernet Plus PoE+ in accordance with IEEE 802.3at,
for shielded and unshielded cables,
IDC insulation displacement contacts suitable for solid conductors AWG26/1 to AWG22/1,
wire diameter 0.7 to 1.6 mm,
wire pairs can be routed to the terminal while retaining the twisted pair, can
be reconnected up to fifty times,
insulation displacement contacts on a common circuit board,
grounding option directly on the circuit board with M4 screw,
color coding T568A and T568B,
temperature range -40 °C to +70 °C,
EMC-safe in accordance with DIN EN 61000-6-1 and DIN EN 61000-6-2,
1/2 HE -19' Insert housing made of sheet steel, powder-coated light grey similar to RAL 7035,
alternative wall mounting through pre-punched holes in the base plate,
up to 12 incoming and 12 outgoing cables,
cable feed and exit from the rear,
SAP article name CU-CM Multi VM8-8 C7A AWG26-22
Notes: 19' 1/2 HE multi-connection module for 12 shielded or unshielded installation cables
Fire protection class: Not relevant
Burning droplets: Not relevant
Smoke development: Not relevant
Acid development: Not relevant
Color: light grey RAL 7035
Short name: Multi 12x VM 8-8 Cat.7A (ISO/IEC)
