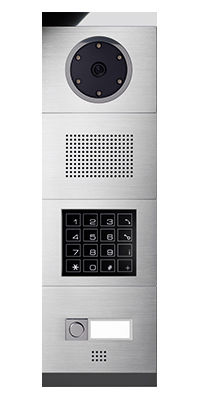

Telecom Behnke BT 50-621 Speakerphone
|
on request |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| Lieske Part No.: | 509503 |
|---|---|
| Mfg Part No: | BT 50-621 |
| Weight: | 0.5 kg |
Further Door Phones from Telecom BehnkeFurther products in category Door Phones
All products of Telecom Behnke
Product information for Telecom Behnke BT 50-621:
50-4910
Module frame, size 4
• Installation option for four modules
• vertical
• Material: aluminum (black anodized)
• Material thickness: 3.5 mm
• Dimensions (H x W x D): 388 x 118 x 3.5 mm
• Decorative strips made of Order polished stainless steel separately!
50-2001
Module touch dial pad
• Touch dial block with 16 buttons (capacitive)
• Keypad illuminated
• Free dialing possible
• 99 speed dial destinations
• Code lock function (door opener function)
• 1 additional direct call button
• Front panel: stainless steel (matt brushed)
• Material thickness: 1.5 mm
• Dimensions ( H x W): 90 x 120 mm
50-3112
Microphone module, 1 button
• Microphone + a call button with labeling field (middle)
• Labeling field illuminated
• Call button shiny polished
• Front panel: made of stainless steel (matt brushed)
• Material thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
50-1100
module speaker, size 3
• Speaker size 3 (large)
• Front panel: stainless steel (matt brushed)
• Material thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
50-2903
Module camera (analog)
• Camera (analog), image in color
• LED lighting ring (white)
• Incl. anti-twist protection for correct module installation
• Front panel: stainless steel (matt brushed)
• Material thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
• Power supply required
Technical data camera
• 1/10,2 cm ( 4 inch ) Sony CCD chip
• Horizontal resolution 480 TVL
• Video standard PAL, FBAS (1Vss)
• Integrated lens, focal length 2.5 mm
• Minimum illumination 1.5 lux / F 1.4
• Electronic shutter control (ESC)
• Automatic backlight function (BLC)
• Automatic gain control (AGC)
• Camera angle 80°, fixed
50-9400
Two clip mounts
• Two clip mounts (shiny polished ) for attaching to the module frame with industrial Velcro
• Material: stainless steel (shiny polished)
20-0043
Electronics compact (a/b), size 4
• Basic electronics size 4 for door stations with integrated electronics
• Connection of up to 8 call buttons, 1 keypad, 1 loudspeaker, 1 microphone
• With 2 switching relays, 1 alarm input, 1 video output (for Behnke camera)
• Large housing (possibility to install an electronic expansion such as voice announcement, real-time clock, display )
• Dimensions (H x W x D): 378 x 108 x 72 mm
Electronics: • Connection: analogue telephone network (main connection) or a/b interface of a telephone system (extension)
• Full duplex operation
• Power supply via a/b interface
• 1 watt additional amplifier integrated (15 V = power supply required)
• Volume can be controlled electronically
• Integrated heating (15 V = power supply required)
• 2 potential-free contacts with various switching functions included (e.g. door opener function)
• Collective call function / redial
• Programmable via telephone with tone dialing (MFV) or buttons on the circuit board
• Door opener function from the inside via MFV suffix dialing
• Connection of various Behnke camera modules possible
Module frame, size 4
• Installation option for four modules
• vertical
• Material: aluminum (black anodized)
• Material thickness: 3.5 mm
• Dimensions (H x W x D): 388 x 118 x 3.5 mm
• Decorative strips made of Order polished stainless steel separately!
50-2001
Module touch dial pad
• Touch dial block with 16 buttons (capacitive)
• Keypad illuminated
• Free dialing possible
• 99 speed dial destinations
• Code lock function (door opener function)
• 1 additional direct call button
• Front panel: stainless steel (matt brushed)
• Material thickness: 1.5 mm
• Dimensions ( H x W): 90 x 120 mm
50-3112
Microphone module, 1 button
• Microphone + a call button with labeling field (middle)
• Labeling field illuminated
• Call button shiny polished
• Front panel: made of stainless steel (matt brushed)
• Material thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
50-1100
module speaker, size 3
• Speaker size 3 (large)
• Front panel: stainless steel (matt brushed)
• Material thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
50-2903
Module camera (analog)
• Camera (analog), image in color
• LED lighting ring (white)
• Incl. anti-twist protection for correct module installation
• Front panel: stainless steel (matt brushed)
• Material thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
• Power supply required
Technical data camera
• 1/10,2 cm ( 4 inch ) Sony CCD chip
• Horizontal resolution 480 TVL
• Video standard PAL, FBAS (1Vss)
• Integrated lens, focal length 2.5 mm
• Minimum illumination 1.5 lux / F 1.4
• Electronic shutter control (ESC)
• Automatic backlight function (BLC)
• Automatic gain control (AGC)
• Camera angle 80°, fixed
50-9400
Two clip mounts
• Two clip mounts (shiny polished ) for attaching to the module frame with industrial Velcro
• Material: stainless steel (shiny polished)
20-0043
Electronics compact (a/b), size 4
• Basic electronics size 4 for door stations with integrated electronics
• Connection of up to 8 call buttons, 1 keypad, 1 loudspeaker, 1 microphone
• With 2 switching relays, 1 alarm input, 1 video output (for Behnke camera)
• Large housing (possibility to install an electronic expansion such as voice announcement, real-time clock, display )
• Dimensions (H x W x D): 378 x 108 x 72 mm
Electronics: • Connection: analogue telephone network (main connection) or a/b interface of a telephone system (extension)
• Full duplex operation
• Power supply via a/b interface
• 1 watt additional amplifier integrated (15 V = power supply required)
• Volume can be controlled electronically
• Integrated heating (15 V = power supply required)
• 2 potential-free contacts with various switching functions included (e.g. door opener function)
• Collective call function / redial
• Programmable via telephone with tone dialing (MFV) or buttons on the circuit board
• Door opener function from the inside via MFV suffix dialing
• Connection of various Behnke camera modules possible
