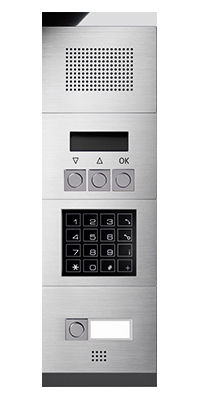

Telecom Behnke BT 50-571 Speakerphone
|
on request |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| Lieske Part No.: | 637342 |
|---|---|
| Mfg Part No: | BT 50-571 |
| Weight: | 0.5 kg |
Further Door Phones from Telecom BehnkeFurther products in category Door Phones
All products of Telecom Behnke
Product information for Telecom Behnke BT 50-571:
50-2006
Module LC display
• LC display (green) 4 lines of 20 characters each
• Telephone book function (max. 199 entries)
• Two buttons for navigation
• One button for selecting and calling the respective participant
• Time-controlled message or information texts
• Connection cable approx. 50 cm
• Incl. anti-twist protection for correct module installation
• Front panel: stainless steel (matt brushed)
• Material thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
• Operating temperature: -20° C up to +50° C
• Electronics extension required!!
50-4910
Module frame, size 4
• Installation option for four modules
• vertical
• Material: aluminum (black anodized)
• Material thickness: 3.5 mm
• Dimensions (H x W x D): 388 x 118 x 3.5 mm
• Decorative strips made of Order polished stainless steel separately!
50-2001
Module touch dial pad
• Touch dial block with 16 buttons (capacitive)
• Keypad illuminated
• Free dialing possible
• 99 speed dial destinations
• Code lock function (door opener function)
• 1 additional direct call button
• Front panel: stainless steel (matt brushed)
• Material thickness: 1.5 mm
• Dimensions ( H x W): 90 x 120 mm
50-3112
Microphone module, 1 button
• Microphone + a call button with labeling field (middle)
• Labeling field illuminated
• Call button shiny polished
• Front panel: made of stainless steel (matt brushed)
• Material thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
50-1100
module speaker, size 3
• Speaker size 3 (large)
• Front panel: stainless steel (matt brushed)
• Material thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
20-0061
Electronics extension
• Electronics to expand the functionality of basic electronics (a/b)
• To be plugged onto the basic electronics (large housing required!)
• Voice announcements: e.g. B. Welcome and information announcements when a call is triggered
• Time functions: e.g. B. Schedule for different phone number dialing or door opener functions
• Display control: required to operate the display modules (a/b connection technology) including RS232 interface for configuring texts and phone book entries on the display
• ATTENTION: Power supply required!
50-9400
Two clip sockets
• Two clip sockets (shiny polished) for attaching to the module frame with industrial Velcro
• Material: stainless steel (shiny polished)
20-0043
Electronics compact (a/b), size 4
• Basic electronics size 4 for door stations with integrated electronics
• Connection of up to 8 call buttons, 1 touchpad, 1 loudspeaker, 1 microphone
• With 2 switching relays, 1 alarm input, 1 video output (for Behnke camera)
• Large housing (possibility to install an electronic expansion such as voice announcement, real-time clock, display)
• Dimensions (H x W x D): 378 x 108 x 72 mm
Electronics:• Connection: analogue telephone network (main connection) or a/b interface of a telephone system (extension)
• Full duplex operation
• Power supply via a/b interface
• 1 Watt additional amplifier integrated (15 V = power supply required)
• Volume can be controlled electronically
• Integrated heating (15 V = power supply required)
• 2 potential-free contacts with various switching functions included (e.g. door opener function)
• Collective call function / redial
• Programmable via telephone with tone dialing (MFV) or buttons on the circuit board
• Door opener function from the inside via MFV suffix
• Connection of various Behnke camera modules possible
Module LC display
• LC display (green) 4 lines of 20 characters each
• Telephone book function (max. 199 entries)
• Two buttons for navigation
• One button for selecting and calling the respective participant
• Time-controlled message or information texts
• Connection cable approx. 50 cm
• Incl. anti-twist protection for correct module installation
• Front panel: stainless steel (matt brushed)
• Material thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
• Operating temperature: -20° C up to +50° C
• Electronics extension required!!
50-4910
Module frame, size 4
• Installation option for four modules
• vertical
• Material: aluminum (black anodized)
• Material thickness: 3.5 mm
• Dimensions (H x W x D): 388 x 118 x 3.5 mm
• Decorative strips made of Order polished stainless steel separately!
50-2001
Module touch dial pad
• Touch dial block with 16 buttons (capacitive)
• Keypad illuminated
• Free dialing possible
• 99 speed dial destinations
• Code lock function (door opener function)
• 1 additional direct call button
• Front panel: stainless steel (matt brushed)
• Material thickness: 1.5 mm
• Dimensions ( H x W): 90 x 120 mm
50-3112
Microphone module, 1 button
• Microphone + a call button with labeling field (middle)
• Labeling field illuminated
• Call button shiny polished
• Front panel: made of stainless steel (matt brushed)
• Material thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
50-1100
module speaker, size 3
• Speaker size 3 (large)
• Front panel: stainless steel (matt brushed)
• Material thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
20-0061
Electronics extension
• Electronics to expand the functionality of basic electronics (a/b)
• To be plugged onto the basic electronics (large housing required!)
• Voice announcements: e.g. B. Welcome and information announcements when a call is triggered
• Time functions: e.g. B. Schedule for different phone number dialing or door opener functions
• Display control: required to operate the display modules (a/b connection technology) including RS232 interface for configuring texts and phone book entries on the display
• ATTENTION: Power supply required!
50-9400
Two clip sockets
• Two clip sockets (shiny polished) for attaching to the module frame with industrial Velcro
• Material: stainless steel (shiny polished)
20-0043
Electronics compact (a/b), size 4
• Basic electronics size 4 for door stations with integrated electronics
• Connection of up to 8 call buttons, 1 touchpad, 1 loudspeaker, 1 microphone
• With 2 switching relays, 1 alarm input, 1 video output (for Behnke camera)
• Large housing (possibility to install an electronic expansion such as voice announcement, real-time clock, display)
• Dimensions (H x W x D): 378 x 108 x 72 mm
Electronics:• Connection: analogue telephone network (main connection) or a/b interface of a telephone system (extension)
• Full duplex operation
• Power supply via a/b interface
• 1 Watt additional amplifier integrated (15 V = power supply required)
• Volume can be controlled electronically
• Integrated heating (15 V = power supply required)
• 2 potential-free contacts with various switching functions included (e.g. door opener function)
• Collective call function / redial
• Programmable via telephone with tone dialing (MFV) or buttons on the circuit board
• Door opener function from the inside via MFV suffix
• Connection of various Behnke camera modules possible
