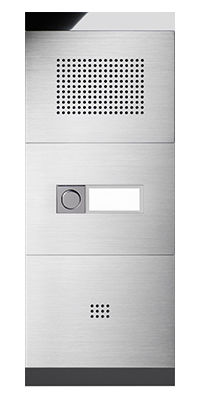

Telecom Behnke BT 50-111 Speakerphone
|
892,24 EUR |
|||||||||||
|
( 1.061,77 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 786004 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | BT 50-111 | ||||||||||
| Weight: | 0.5 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Further Door Phones from Telecom BehnkeFurther products in category Door Phones
All products of Telecom Behnke
Product information for Telecom Behnke BT 50-111:
20-0001
Electronics compact (a/b), size 3
• Basic electronics size 3 for door stations with integrated electronics
• Connection of up to 8 call buttons, 1 touchpad, 1 loudspeaker, 1 microphone
• With 2 switching relays, 1 alarm input, 1 video output (for Behnke camera)
• Large housing (possibility of installing an electronic expansion such as voice announcement, real-time clock, display)
• Dimensions (H x W x D): 288 x 108 x 72 mm
Electronics: • Connection: analogue telephone network (main connection) or a/b interface of a telephone system (extension)
• Full duplex operation
• Power supply via a/b interface
• 1 watt additional amplifier integrated (15 V = power supply required)
• Volume electronically adjustable
• Integrated heater (15 V = power supply required)
• 2 Potential-free contacts with various switching functions included (e.g. door opener function)
• Collective call function / redial
• Programmable via telephone with tone dialing (MFV) or buttons on the circuit board
• Door opener function from the inside via MFV suffix
• Connection of various Behnke camera modules possible
50- 2018
Module 1 button
• One call button with labeling field (middle)
• Illuminated labeling field
• Shiny polished call button
• Front panel: stainless steel (matt brushed)
• Material thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
50-3100
module microphone
• Microphone
• Front panel: stainless steel (matt brushed)
• Material thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
50-1100
module speaker, size 3
• Speaker size 3 (large)
• Front panel: stainless steel (matt brushed)
• Material thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
50-9400
Two clip sockets
• Two clip sockets (polished) for attaching to the module frame with industrial Velcro
• Material: stainless steel (glossy polished)
50-4903
Module frame, size 3
• Installation option for three modules
• vertical
• Material: aluminum (black anodized)
• Material thickness: 3.5 mm
• Dimensions (H x W x D): 298 x 118 x 3.5 mm
• Decorative strips made of shiny polished stainless steel separately order!
Electronics compact (a/b), size 3
• Basic electronics size 3 for door stations with integrated electronics
• Connection of up to 8 call buttons, 1 touchpad, 1 loudspeaker, 1 microphone
• With 2 switching relays, 1 alarm input, 1 video output (for Behnke camera)
• Large housing (possibility of installing an electronic expansion such as voice announcement, real-time clock, display)
• Dimensions (H x W x D): 288 x 108 x 72 mm
Electronics: • Connection: analogue telephone network (main connection) or a/b interface of a telephone system (extension)
• Full duplex operation
• Power supply via a/b interface
• 1 watt additional amplifier integrated (15 V = power supply required)
• Volume electronically adjustable
• Integrated heater (15 V = power supply required)
• 2 Potential-free contacts with various switching functions included (e.g. door opener function)
• Collective call function / redial
• Programmable via telephone with tone dialing (MFV) or buttons on the circuit board
• Door opener function from the inside via MFV suffix
• Connection of various Behnke camera modules possible
50- 2018
Module 1 button
• One call button with labeling field (middle)
• Illuminated labeling field
• Shiny polished call button
• Front panel: stainless steel (matt brushed)
• Material thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
50-3100
module microphone
• Microphone
• Front panel: stainless steel (matt brushed)
• Material thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
50-1100
module speaker, size 3
• Speaker size 3 (large)
• Front panel: stainless steel (matt brushed)
• Material thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
50-9400
Two clip sockets
• Two clip sockets (polished) for attaching to the module frame with industrial Velcro
• Material: stainless steel (glossy polished)
50-4903
Module frame, size 3
• Installation option for three modules
• vertical
• Material: aluminum (black anodized)
• Material thickness: 3.5 mm
• Dimensions (H x W x D): 298 x 118 x 3.5 mm
• Decorative strips made of shiny polished stainless steel separately order!
