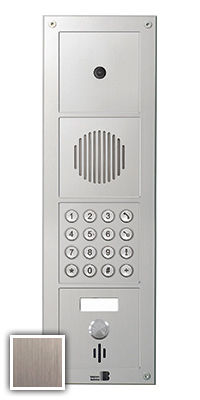

Telecom Behnke BT 21-621-IP Speakerphone
|
2.175,25 EUR |
|||||||||||
|
( 2.588,55 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 843597 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | BT 21-621-IP | ||||||||||
| Weight: | 0.5 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Further Door Phones from Telecom BehnkeFurther products in category Door Phones
All products of Telecom Behnke
Product information for Telecom Behnke BT 21-621-IP:
21-2906-IP
Module Camera (IP)
• IP camera
• Incl. anti-twist protection for correct module installation
• Front panel: aluminum in V2A design
• Material thickness: 4 mm
• Dimensions (H x W): 90 x 90 mm
Technical Data Camera
equipment
• Power supply via PoE
• LED lighting ring (white)
• Digital PTZ
• ONVIF Compatible for use with video surveillance systems from different manufacturers
Optics
• 1/10,2 cm ( 4 inch ) CMOS sensor
• Focal length 2.8 mm, F2.8
• Horizontal image angle 118°
• Vertical image angle 66°
• Illumination 1.5 - 100000 lux, F2.8, 0 lux with LED lighting switched on
• Shutter speed 1/8000s to 1/6s
video
• Motion JPEG, H.264 compression
• Resolution HDTP 1080p 1920 x 1080 to 320 x 240 pixels
• 25 frames / s in all resolutions and compression types
Network
• IPv4/ v6, HTTP, HTTPS *, SSL / TLS *, QoS Layer 3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1 / v2c / v3(MIB- II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS.
• Password protected web interface
• HTTPS encryption
* This product contains software provided by the OpenSSL
Project for use was developed in the OpenSSL Toolkit
(www.openssl.org).
21-4403
frame, size 4
• Installation option for four modules
• vertical
• Incl. anti-twist protection for correct module installation
• Front panel: aluminum in V2A design
• Material thickness: 4 mm
• Dimensions (H x W): 390 x 120 mm
20 -0001A-IP
Electronics compact (SIP), size 3
• Basic electronics size 3 for door stations with integrated electronics
• Connection of up to 8 call buttons, 1 touchpad, 1 display, 1 loudspeaker, 1 microphone
• 2 switching relays (max. switching capacity: 2 A / 30VDC, 0.5 A / 40VAC): 1 make contact, 1 changeover contact
• 1 alarm input (input voltage 10 V= to max. 15 V=)
• RJ45 port for 100baseTEthernet, alternatively via screw terminal (EIA / TIA 568 A)
• additional RJ45 port for connecting additional IP devices, e.g. B. IP camera (no screw terminals)
• Large housing (possibility of installing an electronics extension)
• Dimensions (H x W x D): 288 x 108 x 72 mm
Electronics: • Voice connection via Voice over IP (VoIP) according to the SIP standard via the connected Ethernet LAN using a SIP-capable telephone system, a SIP provider or direct dialing of an IP address
• Configuration and software updates via web browser
• Power supply: Power over Ethernet (PoE) according to IEEE 802.3af
• Integrated PoE switch (VLAN support) for connecting another PoE-capable device with a maximum power consumption of 7 W
• Full duplex operation (integrated acoustic echo suppression)
• Collective call function / redial
• Status / remote control messages for integration with third-party software
• 9 voice announcements, each storable for up to 40 seconds
• 16 MB shared flash memory for telephone book and voice announcements
• Configuration can be saved in a file
Technical data
network
• MAC address (IEEE 802.3)
• IPv4 - Internet Protocol Version 4 (RFC 791)
• ARP – Address Resolution Protocol
• DNS – A record (RFC 1706)
• DHCP Client – Dynamic Host Configuration Protocol (RFC 2131)
• TCP – Transmission Control Protocol (RFC 93)
• UDP – User Datagram Protocol (RFC 768)
• RTP – Real Time Protocol (RFC 1889) (RFC 1890)
• RTCP – Real Time Control Protocol (RFC 1889)
• DiffServ (RFC 2475), Type of Service (RFC 791, RFC 1349)
• SNTP – Simple Network Time Protocol (RFC 2030)
• SIPv2 – Session Initiation Protocol Version 2 (RFC 3261, 3262,3263, 3264)
• SIP in NAT networks (STUN)
• Autoprovisioning via DHCP Option 66 or via configured server
• Backup SIP server configurable
• Firmware update via web interface
• Integrated POE switch with support for tagged VLANs
Voice codecs
• G.711 (A-law, µ-law)
• G726 (32 kbps)
• G.721
• DTMF in-band and out -of-Band (RFC 2833), SIP info
• Full duplex, echo suppression (AEC)
• Speaker volume configurable in 10 levels
• Microphone sensitivity configurable in 10 levels
Electrical characteristics
• Power supply via Power over Ethernet (PoE) according to IEEE802.3af
• Max . Power consumption: 12 W
• SIP station: 5 W
• Device on PORT2: max. 7 W
• Max. switching capacity of the relays: 2 A / 30VDC, 0.5 A /40VAC
• Input voltage alarm input: 10 V to max. 15 V
• Operating temperature: -20° C to +50° C
21-1100-IP
module loudspeaker, size 3
• Loudspeaker size 3 (large)
• Incl. anti-twist protection for correct module installation
• Front panel: aluminum in V2A design
• Material thickness: 4 mm
• Dimensions (H x W): 90 x 90 mm
21-3112
Microphone module, 1 button
• Microphone with a call button and labeling field (middle)
• Incl. anti-twist protection for correct Module installation
• Front panel: aluminum in V2A design
• Material thickness: 4 mm
• Dimensions (H x W): 90 x 90 mm
21-2001
Module touch selection block
• Touch selection block with 16 buttons (unlit)
• Free dialing possible
• 99 speed dial destinations
• Code lock function (Door opener function)
• 1 additional direct call button
• Incl. anti-twist protection for correct module installation
• Front panel: aluminum in V2A design
• Material thickness: 4 mm
• Dimensions (H x W): 90 x 90 mm
20-4908
Additional counterplate, size 1
• Counterplate size 1 as a U-shape to add a module installation location to the electronics housing
• Material: stainless steel
Module Camera (IP)
• IP camera
• Incl. anti-twist protection for correct module installation
• Front panel: aluminum in V2A design
• Material thickness: 4 mm
• Dimensions (H x W): 90 x 90 mm
Technical Data Camera
equipment
• Power supply via PoE
• LED lighting ring (white)
• Digital PTZ
• ONVIF Compatible for use with video surveillance systems from different manufacturers
Optics
• 1/10,2 cm ( 4 inch ) CMOS sensor
• Focal length 2.8 mm, F2.8
• Horizontal image angle 118°
• Vertical image angle 66°
• Illumination 1.5 - 100000 lux, F2.8, 0 lux with LED lighting switched on
• Shutter speed 1/8000s to 1/6s
video
• Motion JPEG, H.264 compression
• Resolution HDTP 1080p 1920 x 1080 to 320 x 240 pixels
• 25 frames / s in all resolutions and compression types
Network
• IPv4/ v6, HTTP, HTTPS *, SSL / TLS *, QoS Layer 3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1 / v2c / v3(MIB- II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS.
• Password protected web interface
• HTTPS encryption
* This product contains software provided by the OpenSSL
Project for use was developed in the OpenSSL Toolkit
(www.openssl.org).
21-4403
frame, size 4
• Installation option for four modules
• vertical
• Incl. anti-twist protection for correct module installation
• Front panel: aluminum in V2A design
• Material thickness: 4 mm
• Dimensions (H x W): 390 x 120 mm
20 -0001A-IP
Electronics compact (SIP), size 3
• Basic electronics size 3 for door stations with integrated electronics
• Connection of up to 8 call buttons, 1 touchpad, 1 display, 1 loudspeaker, 1 microphone
• 2 switching relays (max. switching capacity: 2 A / 30VDC, 0.5 A / 40VAC): 1 make contact, 1 changeover contact
• 1 alarm input (input voltage 10 V= to max. 15 V=)
• RJ45 port for 100baseTEthernet, alternatively via screw terminal (EIA / TIA 568 A)
• additional RJ45 port for connecting additional IP devices, e.g. B. IP camera (no screw terminals)
• Large housing (possibility of installing an electronics extension)
• Dimensions (H x W x D): 288 x 108 x 72 mm
Electronics: • Voice connection via Voice over IP (VoIP) according to the SIP standard via the connected Ethernet LAN using a SIP-capable telephone system, a SIP provider or direct dialing of an IP address
• Configuration and software updates via web browser
• Power supply: Power over Ethernet (PoE) according to IEEE 802.3af
• Integrated PoE switch (VLAN support) for connecting another PoE-capable device with a maximum power consumption of 7 W
• Full duplex operation (integrated acoustic echo suppression)
• Collective call function / redial
• Status / remote control messages for integration with third-party software
• 9 voice announcements, each storable for up to 40 seconds
• 16 MB shared flash memory for telephone book and voice announcements
• Configuration can be saved in a file
Technical data
network
• MAC address (IEEE 802.3)
• IPv4 - Internet Protocol Version 4 (RFC 791)
• ARP – Address Resolution Protocol
• DNS – A record (RFC 1706)
• DHCP Client – Dynamic Host Configuration Protocol (RFC 2131)
• TCP – Transmission Control Protocol (RFC 93)
• UDP – User Datagram Protocol (RFC 768)
• RTP – Real Time Protocol (RFC 1889) (RFC 1890)
• RTCP – Real Time Control Protocol (RFC 1889)
• DiffServ (RFC 2475), Type of Service (RFC 791, RFC 1349)
• SNTP – Simple Network Time Protocol (RFC 2030)
• SIPv2 – Session Initiation Protocol Version 2 (RFC 3261, 3262,3263, 3264)
• SIP in NAT networks (STUN)
• Autoprovisioning via DHCP Option 66 or via configured server
• Backup SIP server configurable
• Firmware update via web interface
• Integrated POE switch with support for tagged VLANs
Voice codecs
• G.711 (A-law, µ-law)
• G726 (32 kbps)
• G.721
• DTMF in-band and out -of-Band (RFC 2833), SIP info
• Full duplex, echo suppression (AEC)
• Speaker volume configurable in 10 levels
• Microphone sensitivity configurable in 10 levels
Electrical characteristics
• Power supply via Power over Ethernet (PoE) according to IEEE802.3af
• Max . Power consumption: 12 W
• SIP station: 5 W
• Device on PORT2: max. 7 W
• Max. switching capacity of the relays: 2 A / 30VDC, 0.5 A /40VAC
• Input voltage alarm input: 10 V to max. 15 V
• Operating temperature: -20° C to +50° C
21-1100-IP
module loudspeaker, size 3
• Loudspeaker size 3 (large)
• Incl. anti-twist protection for correct module installation
• Front panel: aluminum in V2A design
• Material thickness: 4 mm
• Dimensions (H x W): 90 x 90 mm
21-3112
Microphone module, 1 button
• Microphone with a call button and labeling field (middle)
• Incl. anti-twist protection for correct Module installation
• Front panel: aluminum in V2A design
• Material thickness: 4 mm
• Dimensions (H x W): 90 x 90 mm
21-2001
Module touch selection block
• Touch selection block with 16 buttons (unlit)
• Free dialing possible
• 99 speed dial destinations
• Code lock function (Door opener function)
• 1 additional direct call button
• Incl. anti-twist protection for correct module installation
• Front panel: aluminum in V2A design
• Material thickness: 4 mm
• Dimensions (H x W): 90 x 90 mm
20-4908
Additional counterplate, size 1
• Counterplate size 1 as a U-shape to add a module installation location to the electronics housing
• Material: stainless steel
Questions & answers
What is the delivery time of Telecom Behnke BT 21-621-IP Speakerphone ?
The article Telecom Behnke BT 21-621-IP Speakerphone is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Telecom Behnke BT 21-621-IP to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Telecom Behnke BT 21-621-IP Speakerphone always at the best possible price. We can give you a discount of 2% on Telecom Behnke BT 21-621-IP Speakerphone if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 2 pieces of Telecom Behnke BT 21-621-IP Speakerphone we can offer you a price of 2.109,99 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
Fitting accessory for Telecom Behnke BT 21-621-IP Speakerphone
 |
Telecom Behnke 20-9110A Call button
• Call button, illuminated (green) • Diameter: 19 mm • Material: Stainless steel • As spare parts for complete equipment series 20,30 and 40 • As a direct call at producing its own front panel Lieske Part No.: 158812 Mfg Part No: 20-9110A |
39,46 EUR
 plus delivery charges
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
|
 |
Telecom Behnke 20-9596 PoE injector
• to supply an IP station or IP Camera • Output Power: 30W (High Power PoE) IEEE802.3at • Input voltage: 240V AC • Output Power: 30W • Dimensions (L x W x H): 164 x 65 x 36 mm • Operating ... Lieske Part No.: 158897 Mfg Part No: 20-9596 |
63,53 EUR
plus delivery charges
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
|
 |
Telecom Behnke 20-5211 Behnke UP housing size 4
UP-housing size 4 (Size 4 vertically for phones, horizontal). Galvanized sheet steel. External dimensions (H x W x D): 388 x 118 x 85 mm. Dimensions (H x W x D): 360 x 104 x 84 mm. Lieske Part No.: 964172 Mfg Part No: 20-5211 |
51,01 EUR
plus delivery charges
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
|
