Tekbox TBWA2/40dB
/ 40dB broadband amplifier up to 6GHz
|
-5% 265,07 EUR 279,02 EUR |
|
|
( 315,43 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: 2 pieces | |
| Lieske Part No.: | 1178459 |
|---|---|
| Mfg Part No: | TBWA2/40dB |
| Weight: | 0.2 kg |
Product information for Tekbox TBWA2/40dB:
Broadband amplifiers with 40dB gain for connecting near-field probes
TBWA2 broadband RF amplifiers
TBWA2 broadband RF amplifiers are versatile devices that can be easily integrated into laboratory setups. With a bandwidth of 2MHz to 6GHz, they are ideal for amplifying the signals picked up by our EMC near-field probes. The TBWA2 broadband amplifiers are available with 20dB or 40dB gain.
TBWA2/40dB

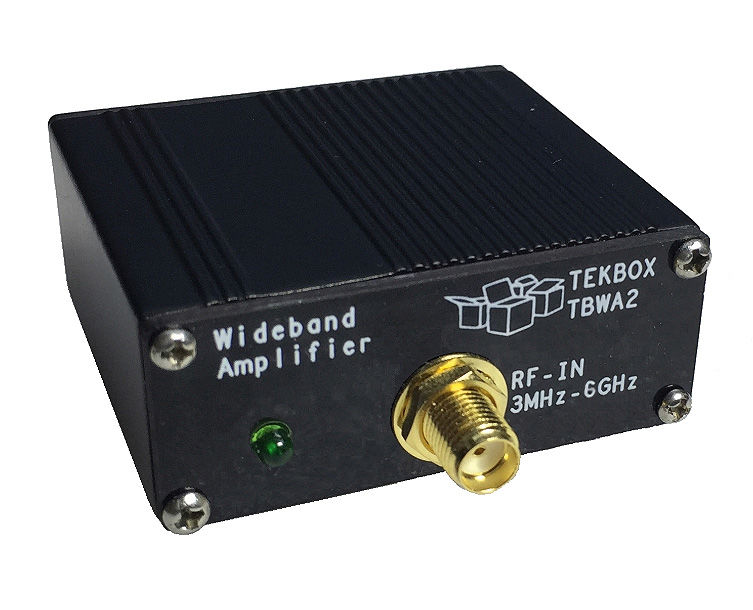

Input: 50 Ohm, SMA

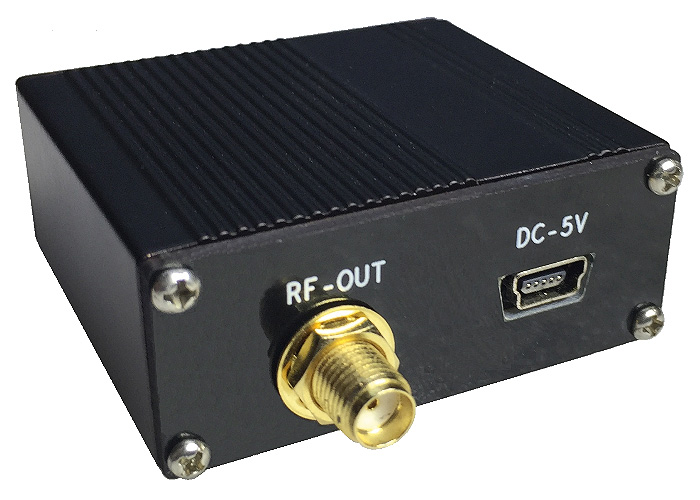

Output: 50 Ohm, SMA
Nominal supply voltage: 4.5 - 5V, typ. 210mA, Mini-USB-B connection
Maximum supply voltage: 5.5V
Maximum input power: -10dBm
1dB Output compression point @ 2GHz: + 20dbm
backwards insulation S12, 0.1 ... 6GHz: 40dB
noise number at 2GHz: 5 dB
reinforcement 1 MHz 10 MHz 100 MHz 500 MHz 1 GHz 2 GHz 4.5 GHz 6 GHz 30 db 40.2 dB 40 db 39.5 dB 37.6 dB 36.4dB 34.6dB 34.7dB
TBWA2 broadband RF amplifiers
TBWA2 broadband RF amplifiers are versatile devices that can be easily integrated into laboratory setups. With a bandwidth of 2MHz to 6GHz, they are ideal for amplifying the signals picked up by our EMC near-field probes. The TBWA2 broadband amplifiers are available with 20dB or 40dB gain.
TBWA2/40dB
Input: 50 Ohm, SMA
Output: 50 Ohm, SMA
Nominal supply voltage: 4.5 - 5V, typ. 210mA, Mini-USB-B connection
Maximum supply voltage: 5.5V
Maximum input power: -10dBm
1dB Output compression point @ 2GHz: + 20dbm
backwards insulation S12, 0.1 ... 6GHz: 40dB
noise number at 2GHz: 5 dB
reinforcement 1 MHz 10 MHz 100 MHz 500 MHz 1 GHz 2 GHz 4.5 GHz 6 GHz 30 db 40.2 dB 40 db 39.5 dB 37.6 dB 36.4dB 34.6dB 34.7dB
Questions & answers
What is the delivery time of Tekbox TBWA2/40dB / 40dB broadband amplifier up to 6GHz?
The article Tekbox TBWA2/40dB / 40dB broadband amplifier up to 6GHz is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Tekbox TBWA2/40dB to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Tekbox TBWA2/40dB / 40dB broadband amplifier up to 6GHz always at the best possible price. We can give you a discount of 2% on Tekbox TBWA2/40dB / 40dB broadband amplifier up to 6GHz if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
