Tekbox TBWA2/20dB
/ 20dB broadband amplifier up to 6GHz
|
-5% 209,61 EUR 220,64 EUR |
|
|
( 249,44 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: 3 pieces | |
| Lieske Part No.: | 1178460 |
|---|---|
| Mfg Part No: | TBWA2/20dB |
| Weight: | 0.2 kg |
Product information for Tekbox TBWA2/20dB:

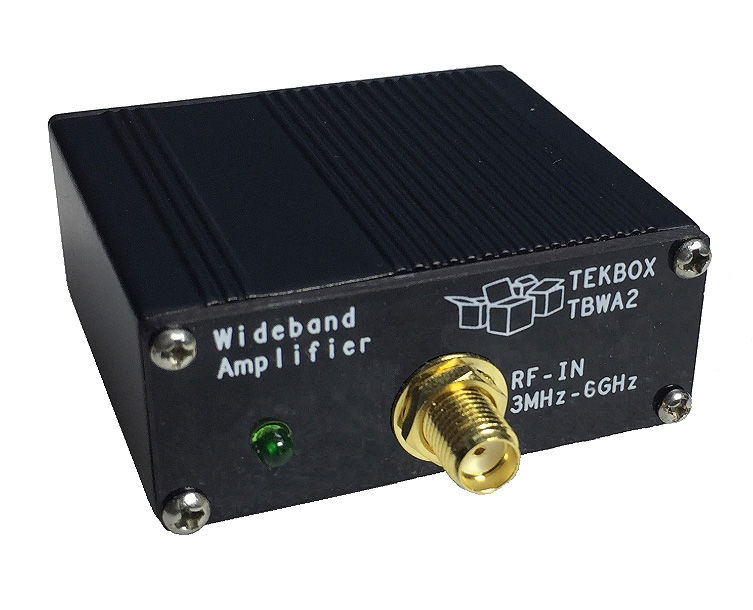

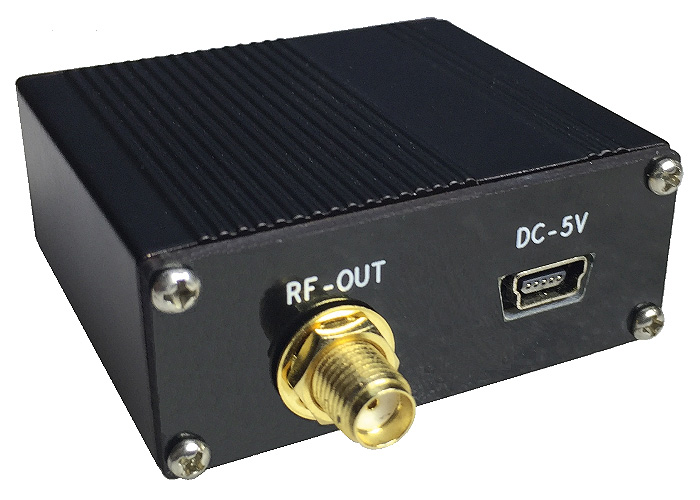

Broadband amplifier with 20dB gain for connecting near-field probes - now up to 6 GHz!
TBWA2 Broadband RF Amplifiers
TBWA2 broadband RF amplifiers are versatile devices that can be easily integrated into laboratory setups. With a bandwidth of 2MHz to 6GHz, they are ideal for amplifying the signals picked up by our EMC near-field probes. The TBWA2 broadband amplifiers are available with 20dB or 40dB gain.
TBWA2/20dB
Input: 50 Ohm, SMA
Output: 50 Ohm, SMA
Nominal supply voltage: 4.5 - 5V, typ. 110mA, Mini-USB-B connection
Maximum supply voltage: 5.5V
Maximum input power: +10dBm
1dB output compression point @ 2GHz: +20dBm
output intersection 3rd order @ 2GHz, pin = 0dBm/ton, ?f = 10MHz: +35dBm
reverse isolation S12, 0.1 ...6GHz: 23dB
noise figure @ 2GHz: 4.5 ... 5 dB
gain 1 MHz 10 MHz 100 MHz 500 MHz 1 GHz 2 GHz 3 GHz 4.5 GHz 6 GHz 14.8 dB 20.2 dB 20.2 dB 20 dB 19.8 dB 19 dB 17.6 dB 17.4 dB 15.4 dB
TBWA2 Broadband RF Amplifiers
TBWA2 broadband RF amplifiers are versatile devices that can be easily integrated into laboratory setups. With a bandwidth of 2MHz to 6GHz, they are ideal for amplifying the signals picked up by our EMC near-field probes. The TBWA2 broadband amplifiers are available with 20dB or 40dB gain.
TBWA2/20dB
Input: 50 Ohm, SMA
Output: 50 Ohm, SMA
Nominal supply voltage: 4.5 - 5V, typ. 110mA, Mini-USB-B connection
Maximum supply voltage: 5.5V
Maximum input power: +10dBm
1dB output compression point @ 2GHz: +20dBm
output intersection 3rd order @ 2GHz, pin = 0dBm/ton, ?f = 10MHz: +35dBm
reverse isolation S12, 0.1 ...6GHz: 23dB
noise figure @ 2GHz: 4.5 ... 5 dB
gain 1 MHz 10 MHz 100 MHz 500 MHz 1 GHz 2 GHz 3 GHz 4.5 GHz 6 GHz 14.8 dB 20.2 dB 20.2 dB 20 dB 19.8 dB 19 dB 17.6 dB 17.4 dB 15.4 dB
Questions & answers
What is the delivery time of Tekbox TBWA2/20dB / 20dB broadband amplifier up to 6GHz?
The article Tekbox TBWA2/20dB / 20dB broadband amplifier up to 6GHz is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Tekbox TBWA2/20dB to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Tekbox TBWA2/20dB / 20dB broadband amplifier up to 6GHz always at the best possible price. We can give you a discount of 2% on Tekbox TBWA2/20dB / 20dB broadband amplifier up to 6GHz if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
