Tekbox TBST-120/60/60/2 EMC shielding tent

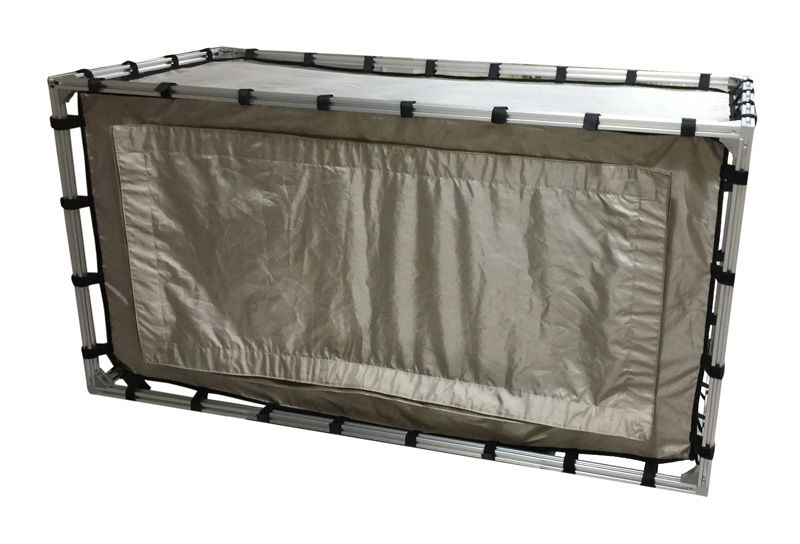

Tekbox TBST shielding tents are designed to isolate your EMC measurement setup from ambient noise that could affect the measurement. The TBST tents consist of a rigid aluminum frame with a double layer of conductive shielding and an opening on the longest side for the placement of equipment.
The tents are available in three sizes: 200cm, 124cm and 86cm, with the 86cm variant offering space for most Tekbox TEM cells such as the TBCT0/1/2 TEM cell and all Tekbox LISNs. The 200cm and 124cm variants are suitable for all Tekbox EMC devices thanks to their larger dimensions.
On the side of the tent there is a mains filter (optional for the 86cm variant), two AC/DC filters and four coaxial connectors. The opening of the tent is closed with a conductive velcro fastener.
Looking for a more affordable solution that doesn't require a rigid frame? Check out the Tekbox Shielded Bags.
Model OverviewModel TBST86/49/45/1-B TBST86/49/45/2-B TBST120/60/2-B TBST200/100 External Dimensions 86 x 48 x 48 cm 86 x 48 x 48 cm 120 x 60 x 60 cm 204 x 104 x 100 cm Aperture Dimensions 40 x 22 cm 40 x 22 cm 85 x 35 cm 130 x 46 cm Attenuation 50 - 70 dB (DC up to 6 GHz) 50 - 70 dB (DC up to 6 GHz) 50 - 70 dB (DC up to 6 GHz) ~50 dB (10 MHz to 6 GHz) Line Filter No Yes Yes Yes Weight 6.7 kg 8.7 kg 10.8 kg 17.0 kg Specifications Shielding 2 layers of conductive fabric Gasket Conductive velcro Frame Yes Connectors 3x N-female, 1x BNC-female
