TBL5032-3 50uH Line Impedance Stabilization Network LISN - CISPR 16

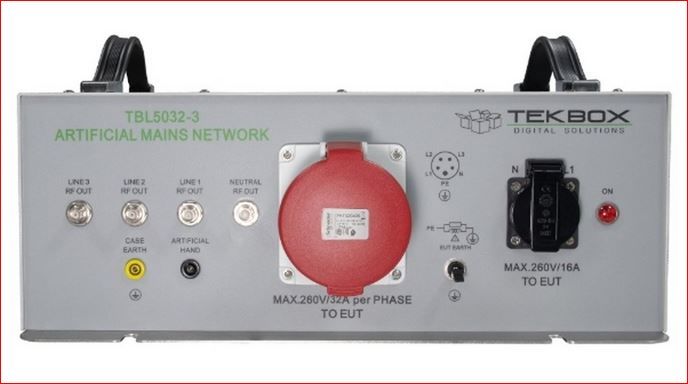

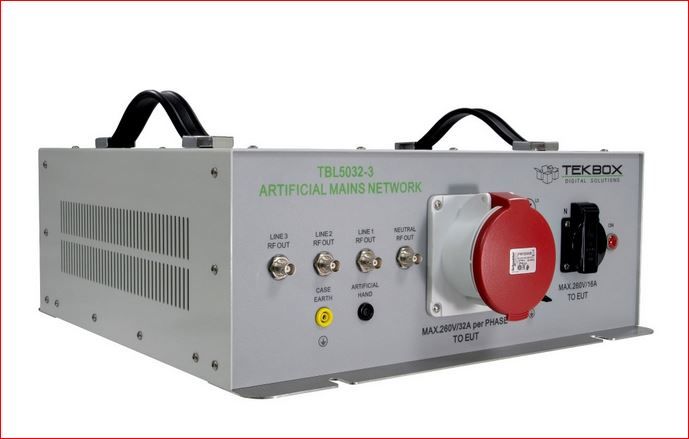

The TBL5032-3 is a Line Impedance Stabilization Network for measuring conducted interference in the range from 9 kHz to 30 MHz according to the CISPR 16-1-2 standard. The device is designed for testing 3-phase and single-phase AC-operated equipment with supply voltages up to a maximum of 450V/ 260V and 32A. Line noise can be measured on each phase and neutral. The TBL5032-3 has separate RF outputs for each phase and neutral and can therefore be coupled with the TBLM1 to split the emissions into its common mode and differential mode components. The TBL5032-3 does not have an integrated high-pass filter on the RF outputs, but comes with an external 9 kHz coaxial high-pass filter.
The single-phase test socket is available in country-specific variants.
SPECIFICATIONS Frequency range: 9 kHz to 30 MHz Impedance: 50 O (50 µH + 5 O) Artificial hand: 220 pF + 511 O Switchable PE: 50 O 50 µH 250µH Pre-filter Separate RF outputs for each line and neutral Air core inductors Mains voltage: max. 540V/260V / 50 - 60 Hz, CAT Max. current per line and neutral: 32A each @ 23°C 3-phase DUT socket: CEE/ IEC60309, 3L + N + PE, 32A, female Single-phase DUT socket: country specific Power connector: CEE/ IEC60309, 3L + N + PE, 32A, male Measuring connectors: 50 O BNC External 9 kHz High pass filter, N-male / N-female Operating temperature range: +5°C ... + 40°C 5% to 80% relative humidity
