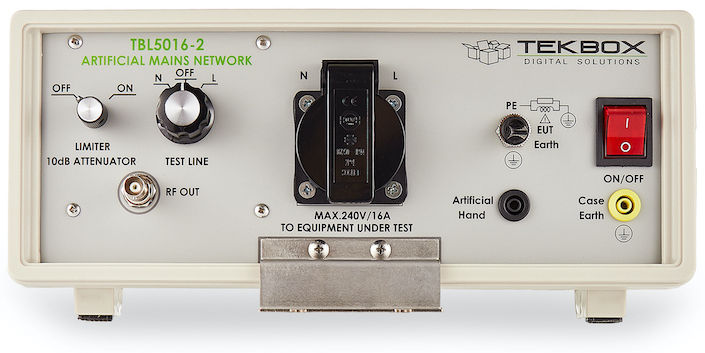

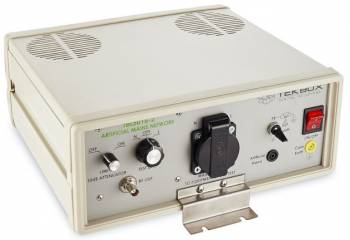

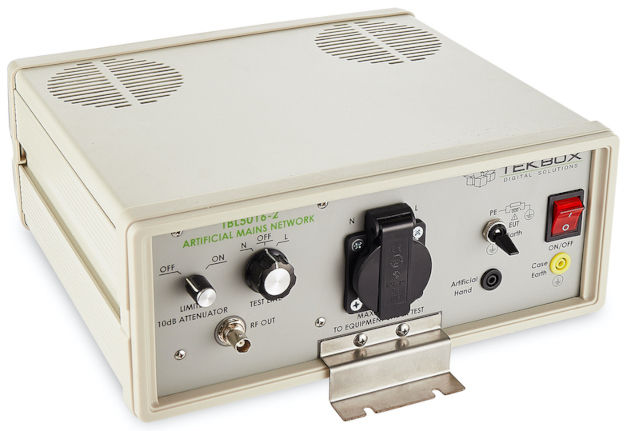

TekBox TBL5016-3-EU LISN three-phase and single-phase 450V/260V, 16A

AC Li-Ion Network (LISN) according to CISPR 16 up to 240V and 16A The TBL5016-2 is a Li-Ion Network for measuring conducted interference in the range from 9kHz to 30MHz according to the CISPR 16-1-2 standard.
The device is designed for testing single-phase, AC-operated devices with supply voltages up to a maximum of 240V and 16A.
Conducted interference can be measured on the phase and on the neutral conductor. The TBL5016-2 is equipped with a switchable limiter/attenuator and an artificial hand connection.
The device is supplied with an A-protection socket as standard. Country-specific DUT connections are available on request.
Specifications: Frequency range: 9kHz to 30 MHz Impedance: 50 Ohm, (50 µH + 5 Ohm) Artificial hand: 220 pF + 511 Ohm Switchable PE: 50 Ohm, 50 µH Limiter / attenuator: 150kHz to 30MHz 10dB air core inductances Line voltage: max. 240V / 50 -60 Hz, CAT II Max. current: 16A @ 23°C DUT connection socket: Schuko socket Measuring tap: 50 Ohm BNC connection Power supply: IEC 60320 C19 (cold appliance plug) Operating temperature range: +5°C ... + 40°C 5% to 80% humidity Safety: Safety class I, IEC 1010-01
