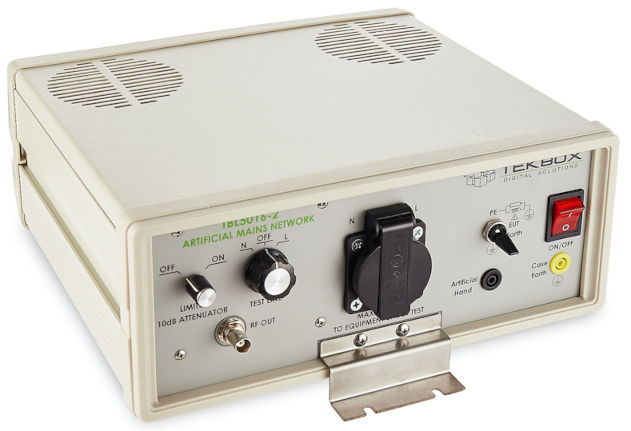

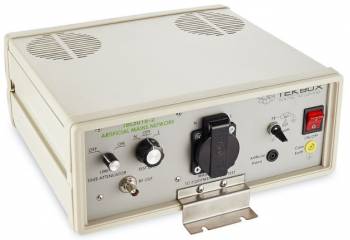

Tekbox TBL5016-2 / 50µH 16A AC-LISN
|
1.001,36 EUR |
|
|
( 1.191,62 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: 2 pieces | |
| Lieske Part No.: | 2037489 |
|---|---|
| Mfg Part No: | TBL5016-2 |
| Weight: | 10 kg |
Product information for Tekbox TBL5016-2:
AC network simulation (LISN) according to CISPR 16 up to 240V and 16A The TBL5016-2 is a network simulation for the measurement of conducted interference in the range from 9kHz to 30MHz according to the CISPR 16-1-2 standard.
The device is designed for testing single-phase, AC-operated devices with supply voltages up to a maximum of 240V and 16A.

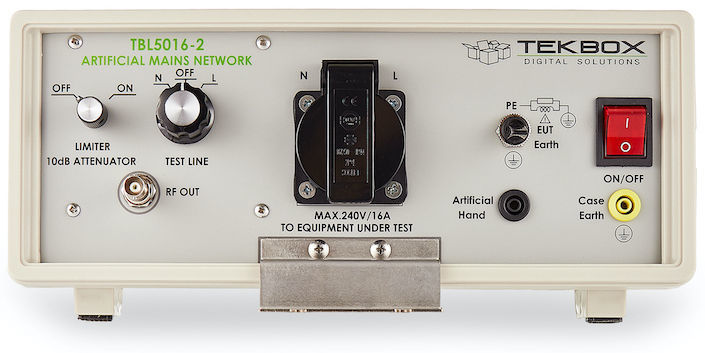

Conducted disturbances can be measured on the phase and on the neutral conductor. The TBL5016-2 is equipped with a switchable limiter/damper and an artificial hand connection.
The device is delivered as standard with a protective contact socket. Country-specific DUT connectors are available upon request.

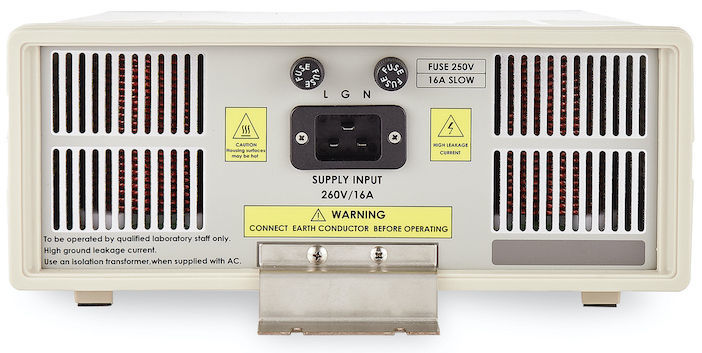

Specifications:Frequency range: 9kHz to 30 MHz Impedance: 50 Ohm, (50 µH + 5 Ohm) Artificial hand: 220 pF + 511 Ohm Switchable PE: 50Ohm, 50 µH Limiter / Attenuator: 150kHz to 30MHz 10dB Air core inductors Line voltage: max. 240V / 50 -60 Hz, CAT II Max. current: 16A @ 23°C DUT connection socket: Schuko socket Measuring tap: 50 Ohm BNC connection Power supply: IEC 60320 C19 (cold appliance plug) Operating temperature range: +5°C ... + 40°C 5% to 80% humidity Safety: Safety class I, IEC 1010-01
The device is designed for testing single-phase, AC-operated devices with supply voltages up to a maximum of 240V and 16A.
Conducted disturbances can be measured on the phase and on the neutral conductor. The TBL5016-2 is equipped with a switchable limiter/damper and an artificial hand connection.
The device is delivered as standard with a protective contact socket. Country-specific DUT connectors are available upon request.
Specifications:Frequency range: 9kHz to 30 MHz Impedance: 50 Ohm, (50 µH + 5 Ohm) Artificial hand: 220 pF + 511 Ohm Switchable PE: 50Ohm, 50 µH Limiter / Attenuator: 150kHz to 30MHz 10dB Air core inductors Line voltage: max. 240V / 50 -60 Hz, CAT II Max. current: 16A @ 23°C DUT connection socket: Schuko socket Measuring tap: 50 Ohm BNC connection Power supply: IEC 60320 C19 (cold appliance plug) Operating temperature range: +5°C ... + 40°C 5% to 80% humidity Safety: Safety class I, IEC 1010-01
