Tekbox TBDA1/14dB
/ 14 dB broadband power amplifier
|
-5% 187,44 EUR 197,30 EUR |
|
|
( 223,05 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: 3 pieces | |
| Lieske Part No.: | 1184636 |
|---|---|
| Mfg Part No: | TBDA1/14dB |
| Weight: | 1 kg |
Product information for Tekbox TBDA1/14dB:
TBDA1 broadband driver amplifiers

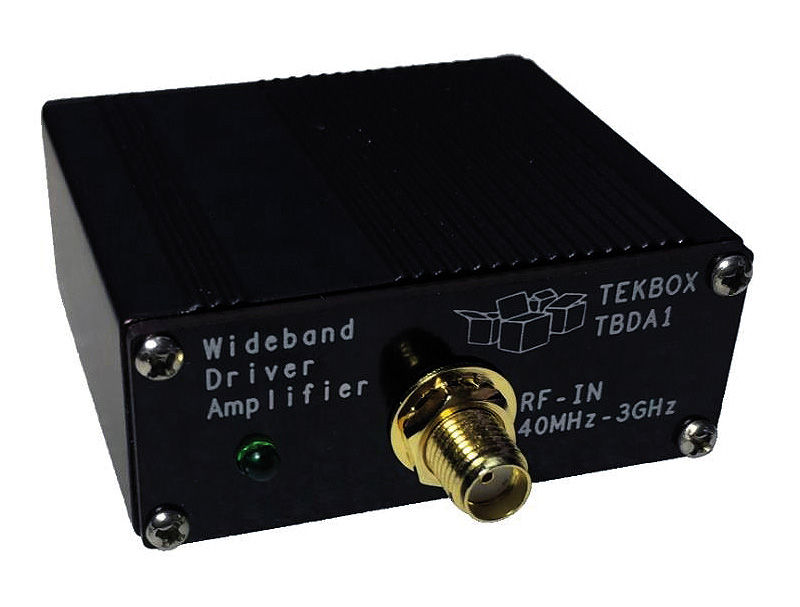

The TBDA1 broadband driver amplifiers are versatile components that can be easily integrated into laboratory setups. With a frequency range of 40MHz to 3GHz and an output power of +22dBm at 1dB compression, they are ideal for amplifying the amplitude of low power RF sources or for driving power amplifier stages. The TBDA1 wideband amplifiers are available with 14dB or 28dB gain.
SPECIFICATIONS
TBDA1/14dB
Input: 50 Ohm, SMA socket
Output: 50 Ohm, SMA socket
Nominal supply voltage: 5V, typ. 115mA, Mini-USB-B connection
Maximum supply voltage: 5.5V
Maximum input power: +20dBm
1dB output compression point @ 40MHz : +21.5dBm
1dB output compression point @ 2 GHz: +22.5dBm
3rd order output intercept point at 40 MHz: +40dBm
3rd order output intercept point at 2 GHz: +43dBm
Reverse isolation S12: -20dB
Noise figure: 3 ... 4 dB
Gain: 25 MHz 50 MHz 100 MHz 500 MHz 1 GHz 1.5 GHz 2 GHz 2.5 GHz 3 GHz 12 dB 13.8 dB 14.2 dB 14.2 dB 14.1 dB 14.2 dB 13.6 dB 13.8 dB 14 dB APPLICATION
General purpose amplification block
RF Driver amplifier
The TBDA1 broadband driver amplifiers are versatile components that can be easily integrated into laboratory setups. With a frequency range of 40MHz to 3GHz and an output power of +22dBm at 1dB compression, they are ideal for amplifying the amplitude of low power RF sources or for driving power amplifier stages. The TBDA1 wideband amplifiers are available with 14dB or 28dB gain.
SPECIFICATIONS
TBDA1/14dB
Input: 50 Ohm, SMA socket
Output: 50 Ohm, SMA socket
Nominal supply voltage: 5V, typ. 115mA, Mini-USB-B connection
Maximum supply voltage: 5.5V
Maximum input power: +20dBm
1dB output compression point @ 40MHz : +21.5dBm
1dB output compression point @ 2 GHz: +22.5dBm
3rd order output intercept point at 40 MHz: +40dBm
3rd order output intercept point at 2 GHz: +43dBm
Reverse isolation S12: -20dB
Noise figure: 3 ... 4 dB
Gain: 25 MHz 50 MHz 100 MHz 500 MHz 1 GHz 1.5 GHz 2 GHz 2.5 GHz 3 GHz 12 dB 13.8 dB 14.2 dB 14.2 dB 14.1 dB 14.2 dB 13.6 dB 13.8 dB 14 dB APPLICATION
General purpose amplification block
RF Driver amplifier
