Tekbox TBCP2-750
/ Foldable RF current transformer up to 750MHz

This image may differ from the desired article.

-7% 794,34 EUR 851,08 EUR
( 945,26 EUR incl. VAT ) plus delivery charges

2025-10-13Delivery time from supplier's stock (ca.) 6 workdays
In Stock: 1 pieces
1x Tekbox TBCP2-750 / Foldable RF current transformer up to 750MHz 945,26 €
Printing view Bookmark Wholesale Inquiry
Lieske Part No.:	2122698
Mfg Part No:	TBCP2-750
Weight:	1 kg

All products of Tekbox

Product information for Tekbox TBCP2-750:

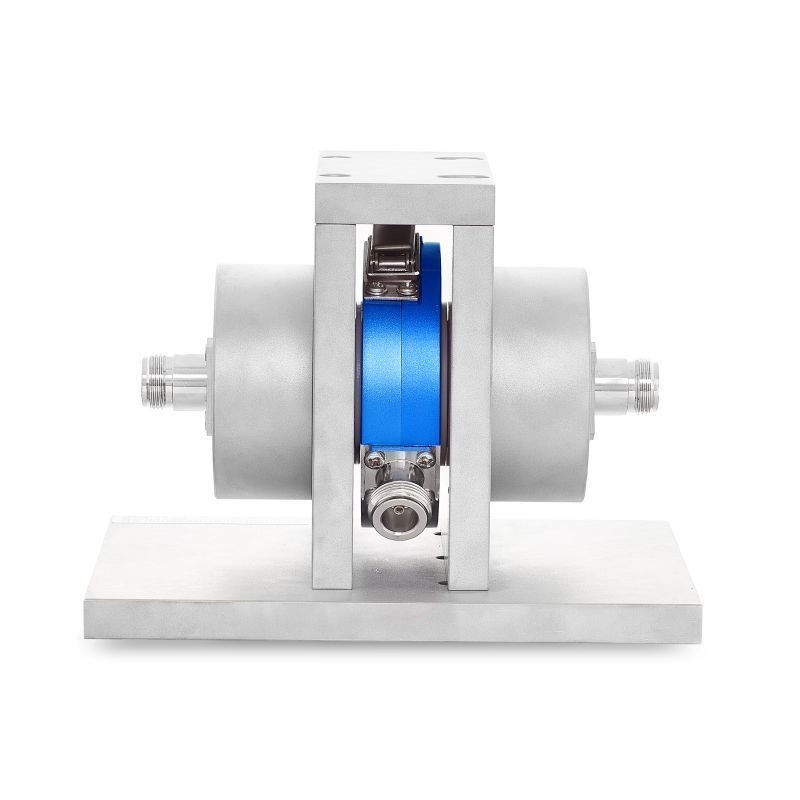

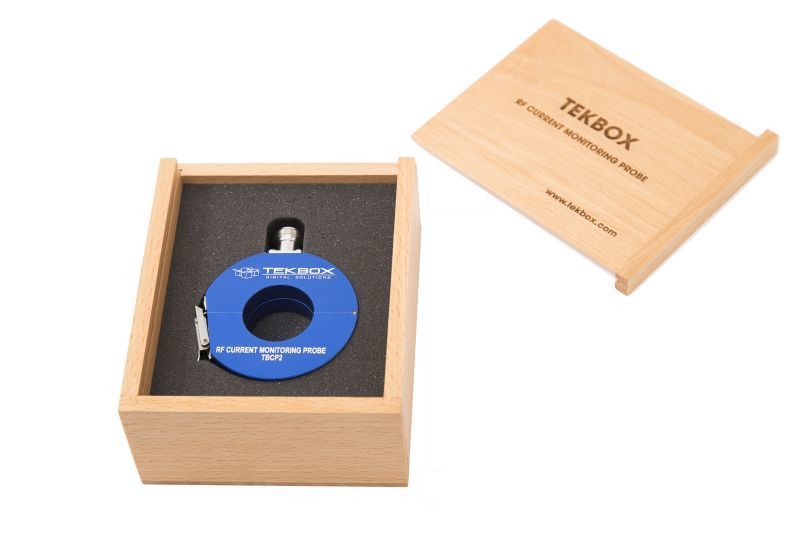

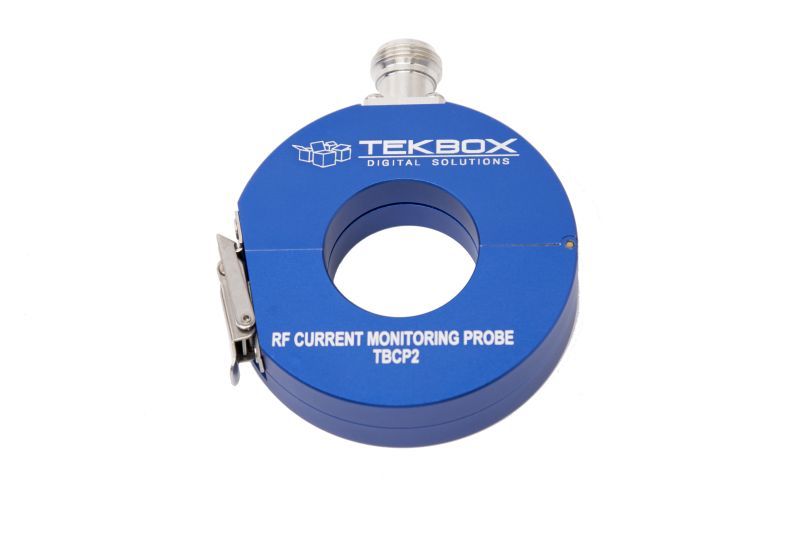

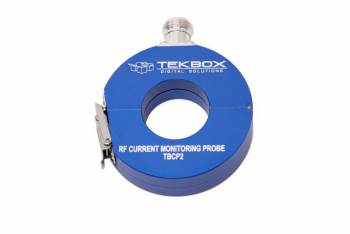

TBCP2-750 snap-on RF current sensor The TBCP2-750 is a snap-on RF current monitoring sensor. The probe has a very flat response with a 3dB bandwidth of 750 MHz and is characterized over the frequency range from 30kHz to 800 MHz. If desired, the test protocol can be extended to frequencies down to 1 kHz. The aperture of the RF current monitoring probe is 32 mm. Its transmission impedance is > 15 dB Ohm in the range from 1 MHz to 750 MHz. Tekbox supplies a calibration device that corresponds to the TBCP2 series of snap-on probes.SPECIFICATIONS Characteristic frequency range: 30 kHz to 800 MHz Diameter of aperture: 32 mm Diameter outside: 73 mm Height: approx. 20 mm Connection type: N female Transmission impedance: 0 to 20 dBO between 150 kHz and 750 MHz Primary current (DC - 400 Hz): 80 A Maximum primary current (RF): 3 A Max. core temperature: 125 °C

Questions & answers

What is the delivery time of Tekbox TBCP2-750 / Foldable RF current transformer up to 750MHz?

The article Tekbox TBCP2-750 / Foldable RF current transformer up to 750MHz is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Tekbox TBCP2-750 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Tekbox TBCP2-750 / Foldable RF current transformer up to 750MHz always at the best possible price. We can give you a discount of 2% on Tekbox TBCP2-750 / Foldable RF current transformer up to 750MHz if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
