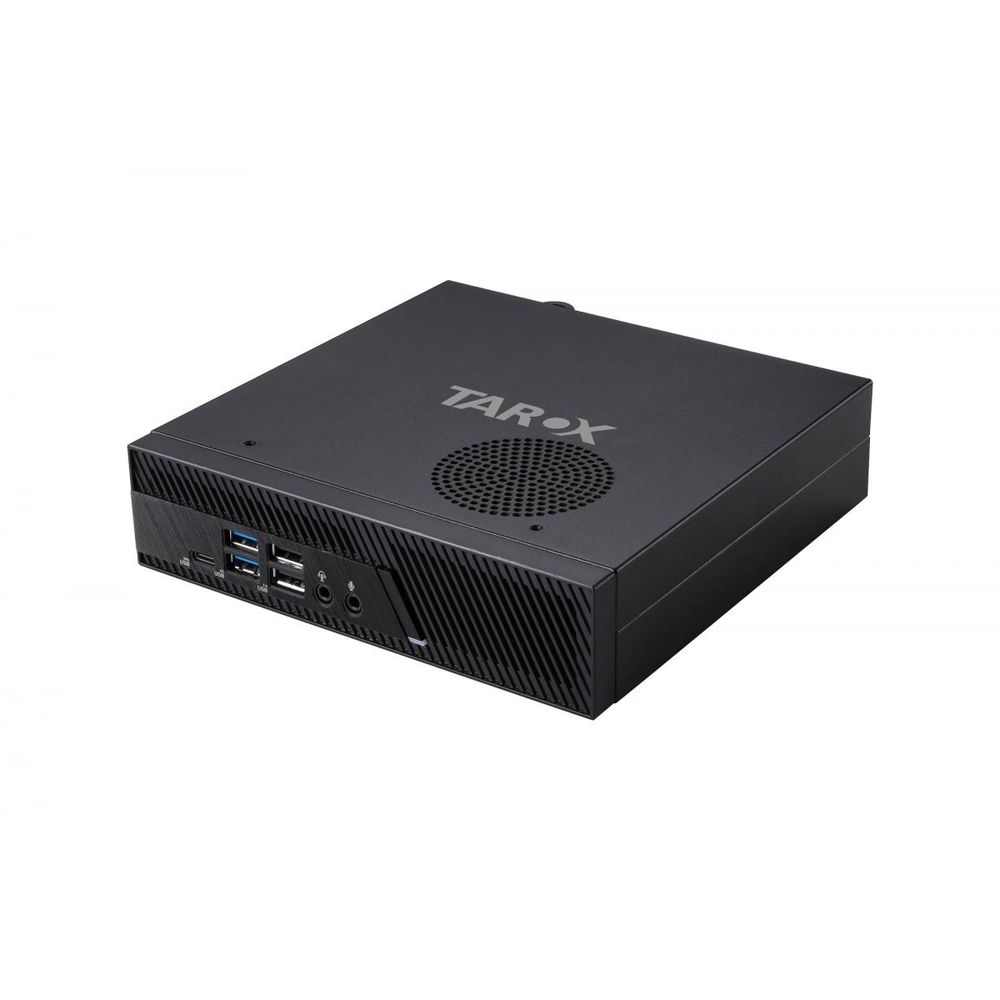

TAROX 2403740 MINI-PC 540-I i7-12700 16GB 500GB W11P content_copy

The TAROX ECO 540-I is a powerful and energy-efficient mini-PC designed for office environments and home offices. Equipped with the 12th Gen Intel® Core™ i7-12700 processor, 16 GB DDR5 RAM, and a 500 GB SSD, it delivers excellent performance in a compact form factor.

The Intel® Core™ i7-12700 processor features 12 cores (8 P-Cores and 4 E-Cores) and a maximum turbo frequency of up to 4.80 GHz on the performance cores. With Hyper-Threading and virtualization technology, this PC is well-suited for demanding tasks such as multitasking and virtualization. The integrated Intel® UHD Graphics 730 supports a maximum screen resolution of 4096 x 2304 pixels at 60 Hz, enabling multi-monitor setups.

The compact chassis measures only 17.5 cm in width and depth, making it perfect for space-constrained workplaces. The mini-PC offers a variety of connectivity options, including HDMI, DisplayPort, USB 3.2 Gen2, and USB Type-C. Additionally, the TAROX ECO 540-I supports modern wireless connectivity with Wi-Fi 6.

Manufactured in Germany to meet ISO 9001 quality standards, the TAROX ECO 540-I comes with a comprehensive 36-month warranty and on-site service for added peace of mind.

Technical Specifications:

Operating System:

• Windows 11 Pro
• Languages: German (DE), French (FR), English (EN)

Chassis:

• Model: TAROX ECO 540-I
• Dimensions (W x H x D): 17.5 cm x 4.42 cm x 17.5 cm
• Power Supply: External, 150 W
• Kensington Lock: Yes

Motherboard:

• Model: TAROX ECO 540-I

Processor:

• Model: Intel® Core™ i7-12700
• P-Core Base Clock: 2.10 GHz
• P-Core Turbo Frequency: 4.80 GHz
• E-Core Base Clock: 1.60 GHz
• E-Core Turbo Frequency: 3.60 GHz
• Cores: 8 P-Cores / 4 E-Cores
• Cache: 25 MB
• Hyper-Threading: Yes
• Virtualization Technology: Yes
• Power: 65 W
• Socket: 1700

Graphics:

• Integrated Intel® UHD Graphics 730
• Max Resolution: 4096 x 2304 @ 60 Hz
• Supported Technologies: DirectX 12.1, OpenGL 4.5

RAM:

• Capacity: 16 GB SO-DDR5
• Number of Modules: 1 (expandable up to 128 GB)

Storage:

• Capacity: 500 GB
• Type: SSD
• Interface: SATA-II

Front Ports:

• 1x USB Type-C
• 2x USB 3.2 Gen1
• 2x USB 2.0
• Headphone: 1x
• Microphone: 1x

Rear Ports:

• 1x USB 2.0
• 2x USB 3.2 Gen2
• 1x HDMI
• 2x DisplayPort
• 1x RJ-45 (Gigabit Ethernet)

Wireless Connectivity:

• Wi-Fi 6

Certificates:

• CE Marking: Yes
• Manufactured in Germany according to ISO 9001: Yes
• WEEE Registration No.: DE 99267951

Operating Conditions:

• Temperature: 5°C to 40°C
• Relative Humidity: 10% to 75% (non-condensing)

Input Devices:

• Keyboard: Optional
• Mouse: Optional

Service:

• Warranty: 36 Months
• On-Site Service: 36 Months

EAN Number:

• 4250154120000

Graphics
Graphics card	Integrated Intel® UHD Graphics 730
Hard drive
SSD/HDD capacity	500
Interface	SATA-II
Hard drive	500GB SSD
Solid State Disk (SSD)
Housing
Housing	TAROX Mini-PC 540-I
Input devices
Keyboard	Optional
Mouse	Optional
Mainboard
Mainboard	TAROX Mini-PC 540-I
Wireless LAN	Intel WiFi 6E + Bluetooth 5.3
Operating conditions
Operating ambient temperature	5°C - 40°C
Relative humidity during operation	10% - 75% (non-condensing)
Operating system
Operating system	Windows 11 Pro
Power supply
Power	150
Power adaptor	150W power supply, external
external (passive)
Processor(s)
Processor(s)	Intel® Core™ i7-12700
Service
Warranty	36 months warranty (Mini-PC)
Service	36 months warranty (Mini-PC)
EAN number	4250154120000
Test marks / certificates
CE marking
Manufactured in Germany according to ISO 9001
WEEE Reg. No. DE 99267951
Working memory
Main memory	16
Memory type	SO-DDR5
Number of modules	1

---
