Patch Panel 6xTP, CAT6A, incl. Keystone Slim-line 20mm, surface-mounted ABS, white, Synergy 21 content_copy

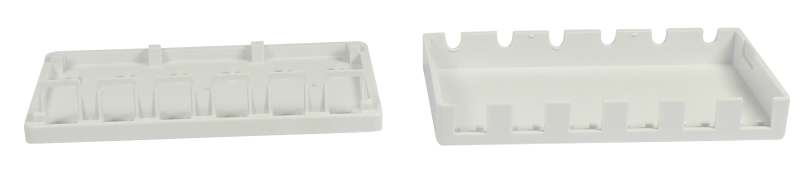

The product from Synergy 21 is a module carrier for network applications, equipped with six integrated Keystone modules. It serves as a patch panel for connecting network cables in structured cabling systems and is designed for surface mounting. The housing is made of ABS plastic in white and provides space for six Keystone modules in slim-line format with a width of 20 mm. The modules are designed for RJ45 connectors and support Category 6A (Class EA) according to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09, and TIA/EIA-568-C.2 (2009-08), enabling a bandwidth of up to 500 MHz. Cabling is performed according to the T568A/B standard, with the modules marked accordingly.

Applications
This patch panel is suitable for use in offices, server rooms, IT infrastructures, and other environments requiring structured and flexible network cabling. Surface mounting allows for easy installation on walls or in distribution boxes without requiring a cutout in the wall. The use of Keystone modules enables individual modules to be replaced or exchanged as needed, without modifying the entire patch panel.

Functions and Equipment in Detail

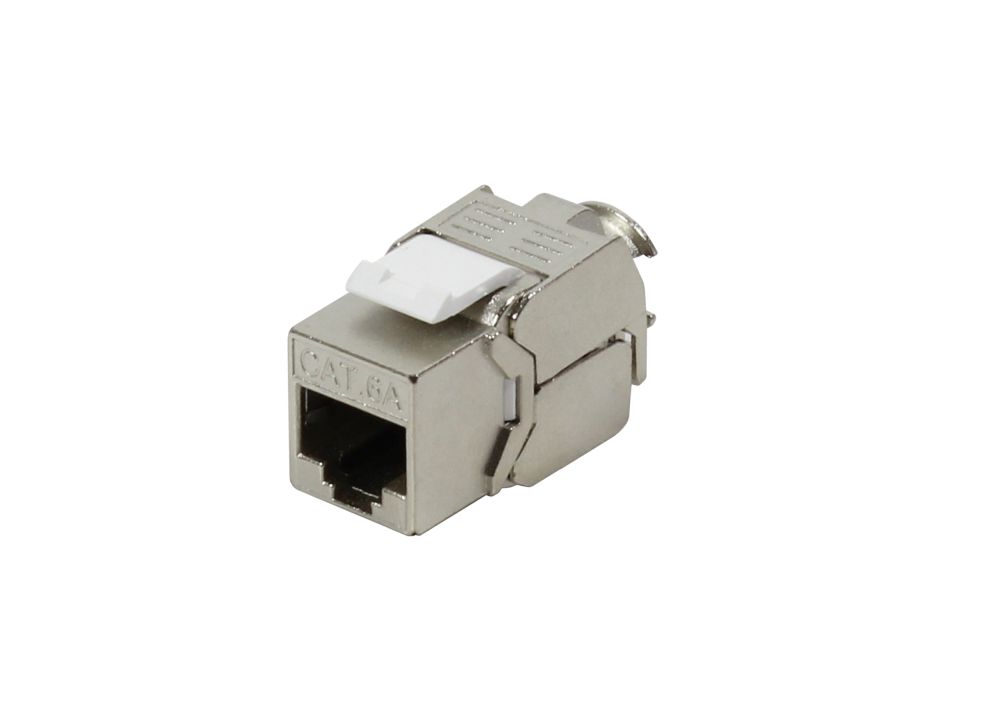

The Keystone modules feature a 360° shielded connection, ensuring effective shielding against electromagnetic interference. The contacts are made of phosphor bronze with tin plating, providing high mechanical stability and good electrical conductivity. The connectors (RJ45) are coated with gold plating to ensure reliable and durable contact. The modules are designed for use with shielded (STP) cables and support PoE according to IEEE 802.3af, IEEE 802.3at (PoE+), and IEEE 802.3bt (PoE++), enabling power delivery over the network cable. The maximum cable diameter for connection is 8.5 mm, supporting cable cross-sections from 22 to 26 AWG (equivalent to 0.65 mm to 0.40 mm).

Technology Explained Simply
Category 6A offers high data transfer rates and is suitable for applications requiring high bandwidth, such as Gigabit Ethernet or 10 Gigabit Ethernet. The shielding (360° shielded connection) ensures that signals are not affected by external interference, which is particularly important in environments with high electromagnetic noise. PoE support allows end devices such as IP cameras, access points, or telephone systems to be powered directly via the network cable, eliminating the need for additional power supplies. T568A/B cabling is the standard for wire mapping in network cables and ensures a uniform and error-free connection.

Compatibility and Accessories

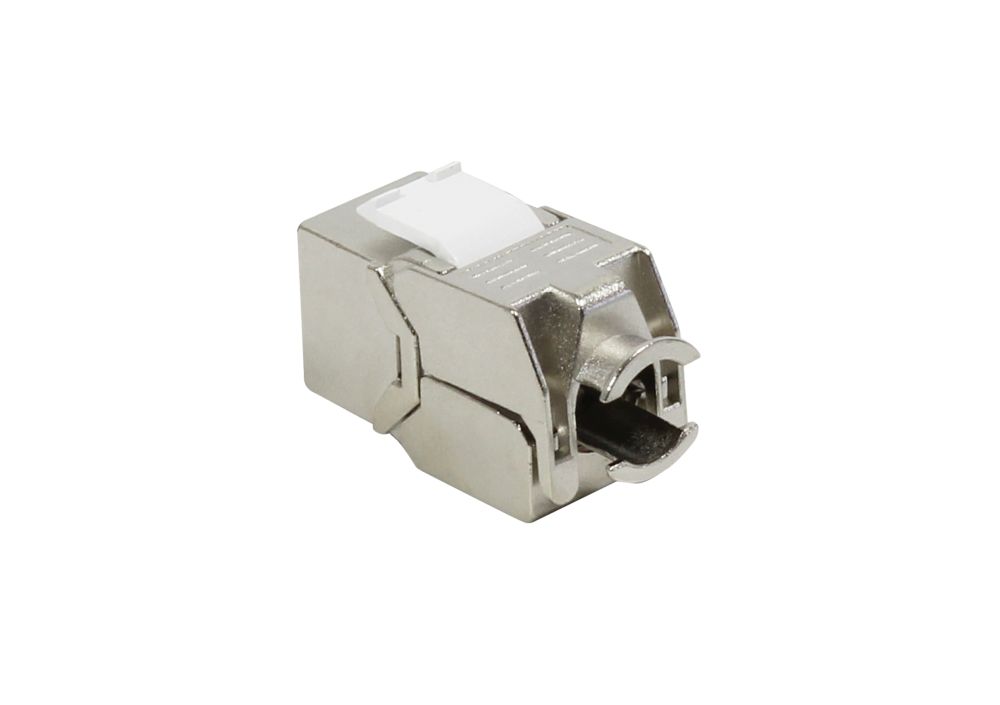

The Keystone modules are designed for use with slim-line modules in 20 mm format. The modules are designed for STP cables (shielded twisted-pair cables) and support the mentioned PoE standards. Cabling is done via IDC contacts (Insulation Displacement Connectors), enabling quick and reliable connections without soldering. The modules are equipped with a module cover made of PC material, which protects the connection and provides an aesthetic finish. The delivery includes cable ties (75 x 1.9 mm) and copper foil as accessories, used for securing and shielding cables.

Installation and Mounting
The patch panel is mounted on a wall or in a distribution box. Mounting is done using the included screws (ST4 x 20 mm). Installation requires no special tools, as cabling is done via IDC contacts that work with a pressure connection. Cables are simply inserted into the IDC contacts, creating a secure electrical connection. The maximum cable diameter is 8.5 mm, supporting cable cross-sections from 22 to 26 AWG. Installation is simple and quick, as the modules are directly placed in the module carrier.

Operational Advantages
The use of Keystone modules enables a flexible and modular network structure. Individual modules can be replaced as needed without changing the entire patch panel. Shielding ensures high signal quality, even in environments prone to interference. PoE support reduces the number of required power supplies and simplifies installation. Surface mounting allows for quick and easy installation without additional construction work. The use of ABS plastic ensures a robust and long-lasting construction.

The operating temperature range is between -10 °C and +60 °C, and the storage temperature range is between -40 °C and +70 °C. The modules comply with RoHS 3.0 and REACH. Electrical characteristics include a maximum contact resistance of 20 MΩ, a minimum insulation resistance of 500 MΩ at 500 V DC, and a test voltage of 1000 V DC / 700 V AC RMS at 60 Hz for 1 minute. The mechanical lifespan of the RJ45 connector is at least 750 insertions and extractions. The insertion force is less than 30 N. The modules are designed for use with solid cables, with inner cable diameters ranging from 1.05 mm to 1.5 mm.

Fluke testing is performed according to Permanent Link ISO 11801 (PL2) Class Ea. The modules are designed for use in structured cabling systems and comply with the mentioned standards and norms. Delivery is in individual packaging (1 piece per PE bag with label), with a sub-packaging of 25 pieces per carton and label.

General
Number of Keystone modules	6
Module format	Slim-line 20 mm
Cable type	STP
Category	6A
Bandwidth	500 MHz
Wiring standard	T568A/B
Shield bonding	360°
PoE support	IEEE 802.3af, 802.3at, 802.3bt
Cable diameter	5.0 to 8.5 mm
Cable cross-section	22-26 AWG
Plug connection	RJ45, 8P8C
Contact plating	Gold
Insertion force	<30 N
Mechanical life	750 Mal
Operation temperature	-10 to +60 °C
Storage temperature	-40 to +70 °C
Contact resistance	20 MΩ
Insulation resistance	500 MΩ
Test voltage	1000 V DC / 700 V AC RMS
Fluke test	Permanent Link ISO 11801 (PL2) Class Ea
Housing material	ABS
Mounting method	Surface mounted (plaster)
Compliance with standards	ISO/IEC 11801, DIN EN 50173-1, TIA/EIA-568-C.2, IEC 60603-7
Environmental compliance	RoHS 3.0, REACH

---
