Synergy 21 LED light panel 620*620 cold white 35W V3 PRO white
|
-27% 39,04 EUR 53,26 EUR |
|
|
( 46,46 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Lieske Part No.: | 1479186 |
|---|---|
| Mfg Part No: | S21-LED-J00253 |
| UPC/EAN: | 4038816071095 |
| Weight: | 3.75 kg |
Product information for Synergy 21 S21-LED-J00253:

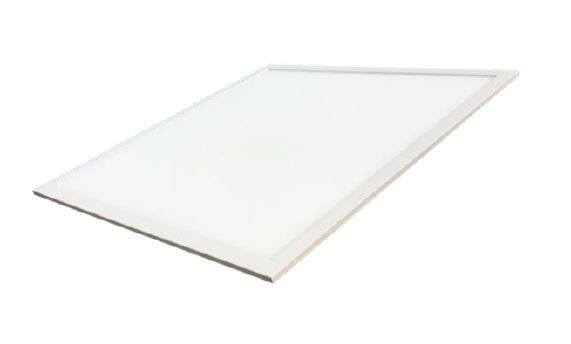

Ultra Slim LED Panel Light, version PRO
Intended use: Installation in the Odenwald ceiling
with optional accessories, other types of installation are also possible
(surface-mounted, flush-mounted, suspended, wall-mounted and wall-mounted, etc.)
Frame color: white
Power consumption: 35 watts
Lumen number: 4200Lm, Lm/W =120

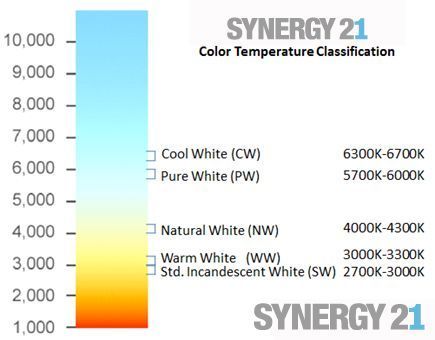

Light color: cold white 5700
MacAdam/SDCM 83
Beam angle: 120°
Protection class: IP40 / IK05
Rated Lifetime (L80): 50,000h
Working temperature: -10° to +45° (Amb.)
Power supply: 700mA < 42±2V/DC ( constant current / constant current)
Attention: the panel is delivered as standard WITHOUT power supplies.
Power supply: see accessories
Size (external dimensions): 622mm x 622mm x 12mm
Size (hole dimensions): 605mm x 605mm
Guarantee: 5 years
Energy efficiency class: A+
kWh/1000h: 38.5
IES files download: http://www.synergy21.de/ service-support/downloads/light-calculation-ies/
Intended use: Installation in the Odenwald ceiling
with optional accessories, other types of installation are also possible
(surface-mounted, flush-mounted, suspended, wall-mounted and wall-mounted, etc.)
Frame color: white
Power consumption: 35 watts
Lumen number: 4200Lm, Lm/W =120
Light color: cold white 5700
MacAdam/SDCM 83
Beam angle: 120°
Protection class: IP40 / IK05
Rated Lifetime (L80): 50,000h
Working temperature: -10° to +45° (Amb.)
Power supply: 700mA < 42±2V/DC ( constant current / constant current)
Attention: the panel is delivered as standard WITHOUT power supplies.
Power supply: see accessories
Size (external dimensions): 622mm x 622mm x 12mm
Size (hole dimensions): 605mm x 605mm
Guarantee: 5 years
Energy efficiency class: A+
kWh/1000h: 38.5
IES files download: http://www.synergy21.de/ service-support/downloads/light-calculation-ies/
Questions & answers
What is the delivery time of Synergy 21 LED light panel 620*620 cold white 35W V3 PRO white?
The article Synergy 21 LED light panel 620*620 cold white 35W V3 PRO white is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Synergy 21 S21-LED-J00253 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Synergy 21 LED light panel 620*620 cold white 35W V3 PRO white always at the best possible price. We can give you a discount of 2% on Synergy 21 LED light panel 620*620 cold white 35W V3 PRO white if you choose payment in advance on ordering.
You can also send us a price proposal for your desired quantity of Synergy 21 LED light panel 620*620 cold white 35W V3 PRO white via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
