Startech.com VID2HDCON2 S-Video or Composite to HDMI converter with audio 720p NTSC & PAL analog to HDMI upscaler Mac & Windows content_copy

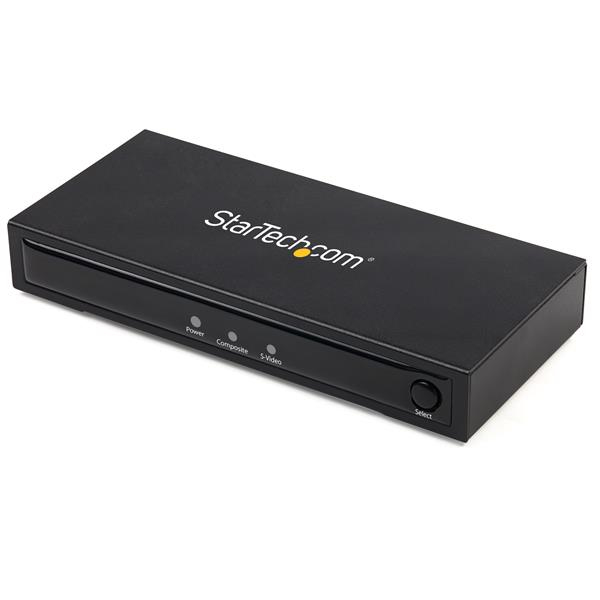

The Startech.com video converter VID2HDCON2 is an active converter for converting analog video and audio signals into a digital HDMI format. It enables the connection of older devices such as DVD players, video cameras, VCRs or surveillance cameras to modern HDMI displays, televisions or projectors. The device features a composite video input as well as an S-video input and integrated RCA L/R audio inputs, combining audio and video signals into a single HDMI output. This eliminates the need for a separate audio cable to connect to the target device.

Applications

The converter is designed for applications where analog sources need to be connected to digital display devices. This includes playing old videos on HD displays, using medical imaging devices with older outputs on modern monitors, integrating surveillance cameras into HDMI-based surveillance systems, or use in conference rooms where old video devices need to be connected to new projectors. Support for NTSC 3.58 and PAL signal formats makes it universally applicable for various regions and devices.

Functions and Equipment in Detail

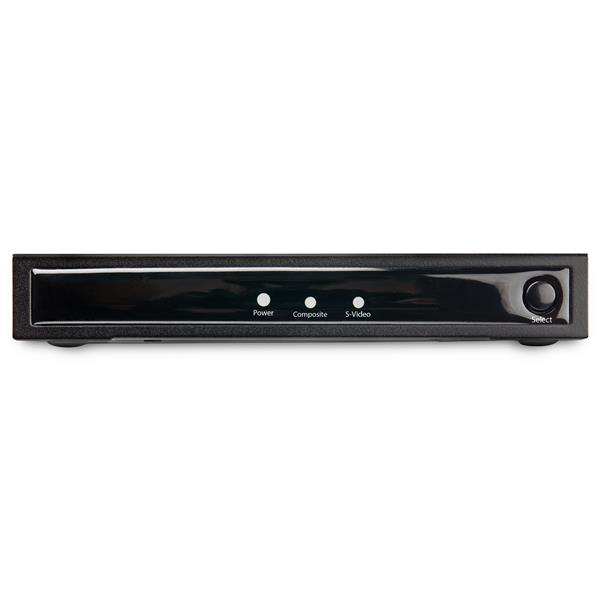

The device offers a maximum video resolution of 1280 x 720 pixels (720p) at a refresh rate of 60 Hz, which is sufficient for smooth playback on HD displays. The conversion is performed by a hardware-based upscaler, meaning no software installation or drivers are required. Settings can be adjusted via a screen display menu and a physical input selector switch (Composite or S-Video). Status indication is provided by LEDs showing operating status, input source, and power supply.

Technology Explained Simply

The converter operates with an external power supply accepting an input voltage of 100 to 240 V and delivering an operating voltage of 5 V. Power consumption in standard operation is 2.5 W. Power supply is via a Type-M connector. The housing is made of plastic and is black, with dimensions of 71 mm (width) × 155 mm (depth) × 23 mm (height). The device is compact and suitable for use in spaces with limited room. Operating temperature ranges from 0 to 45 °C, and relative humidity during operation is 10 to 85 %.

Compatibility and Accessories

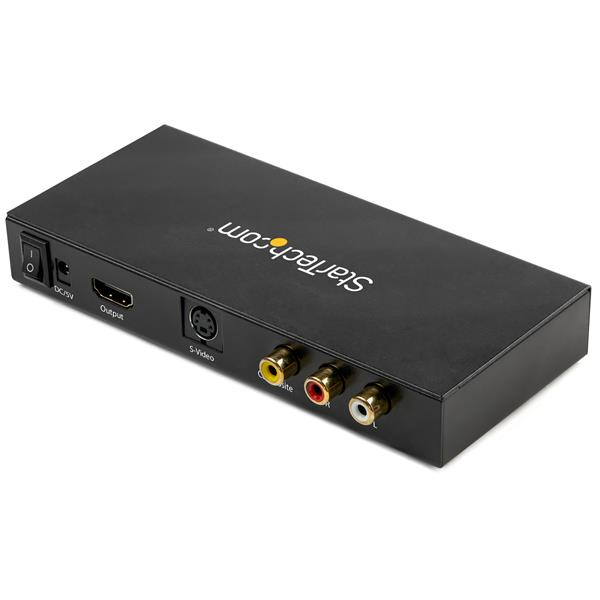

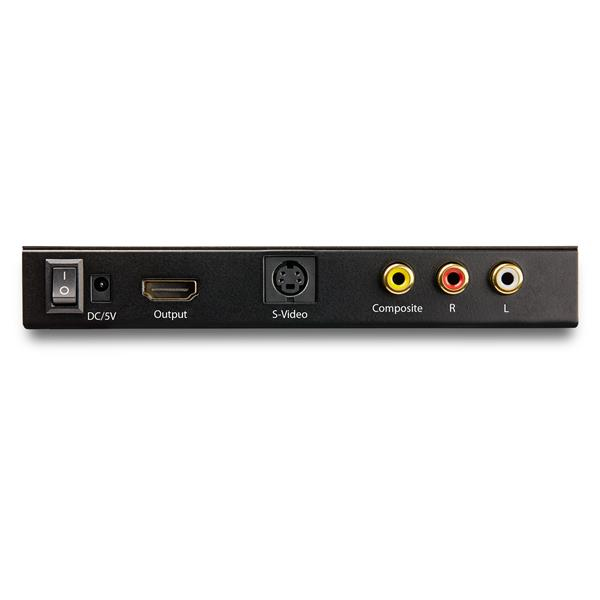

The converter is compatible with Windows and Mac operating systems. Output is via an HDMI output (19-pin), which can be connected to any HDMI-capable monitor, television, or projector. Inputs consist of a composite video input (RCA), an S-video input (4-pin, Mini-DIN), and two RCA audio inputs (L/R). Conversion occurs without additional software, enabling plug-and-play installation.

Mounting and Installation

Installation involves connecting the analog source (Composite or S-Video) to the corresponding inputs on the converter, connecting audio inputs via RCA cables, and linking the HDMI output to the target device using an HDMI cable. The device is powered via the included universal power supply. The input source can be selected using the physical switch, with LED indicators showing the status. Setup is therefore simple and does not require special expertise.

Advantages in Operation

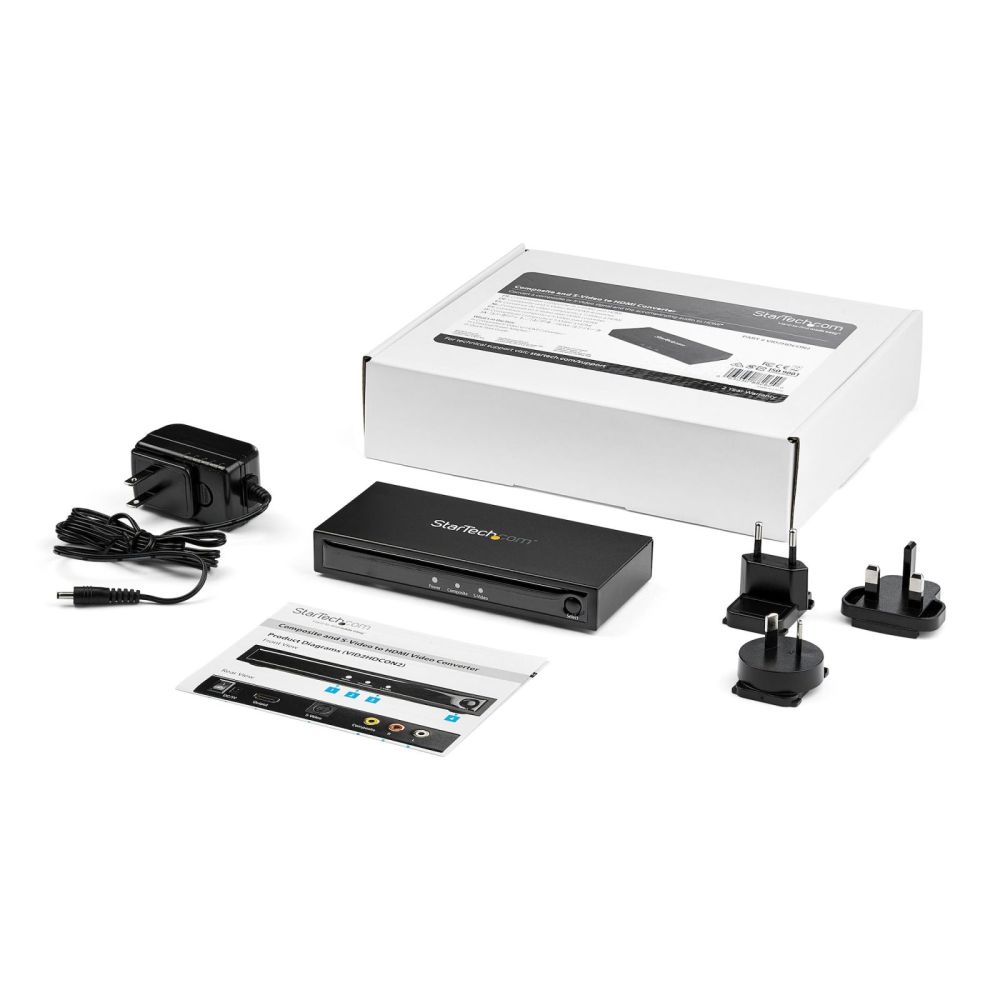

The converter allows existing analog devices to be used with modern HDMI displays, saving costs associated with equipment upgrades. Integrated audio and video conversion in a single device reduces the number of required cables. Support for NTSC and PAL, along with plug-and-play functionality, increases flexibility and user-friendliness. Certifications CE, FCC, REACH and RoHS ensure compliance with European and North American safety and environmental standards. The device is supplied with an AC power adapter and a quick installation guide.

Features
Converter type	Active video converter
Product colour	Black
Housing material	Plastic
Certification	CE, FCC, REACH
LED indicators
Windows operating systems supported
Mac operating systems supported
Logistics data
Harmonized System (HS) code	85176990
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-10 - 80 °C
Operating relative humidity (H-H)	10 - 85%
Packaging data
Package width	200 mm
Package depth	255 mm
Package height	60 mm
Package weight	578 g
AC adapter included
Quick installation guide
Ports & interfaces
Video in	Composite
Video out	HDMI/S-Video/2 x RCA
Power
Input voltage	100 - 240 V
Operating voltage	5 V
Power consumption (typical)	2.5 W
Input current	1 A
Power plug type	Type M
External power adapter
Technical details
Compliance certificates	RoHS
Video
Maximum video resolution	1280 x 720 pixels
Supported video modes	720p
Analog signal format system	NTSC 3.58, PAL
Maximum refresh rate	60 Hz
Weight & dimensions
Width	71 mm
Depth	155 mm
Height	23 mm
Weight	251 g

---
