Startech.com PEXUSB3S25 2 Port PCI Express (PCIe) SuperSpeed USB 3.0 Card Adapter with UASP LP4 Power

Your rating:
Average rating
product review for Startech.com PEXUSB3S25 2 Port PCI Express (PCIe) SuperSpeed USB 3.0 Card Adapter with UASP LP4 Power
( 0 / 5 ) 0 ratings
Startech.com PEXUSB3S25
This image may differ from the desired article.
Startech.com PEXUSB3S25Startech.com PEXUSB3S25Startech.com PEXUSB3S25Startech.com PEXUSB3S25Startech.com PEXUSB3S25
-13% 30,48 EUR 35,14 EUR
( 36,27 EUR incl. VAT )
≈ £25.51  |  ≈ $33.50
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
In Stock: >5 pieces
1x Startech.com PEXUSB3S25 2 Port PCI Express (PCIe) SuperSpeed USB 3.0 Card Adapter with UASP LP4 Power
Datasheet:file_download Download
Lieske Part No.:241220
Mfg Part No: PEXUSB3S25
UPC/EAN: 0065030854603
Weight:0.19 kg
Type:CTLR

Product information for Startech.com PEXUSB3S25:

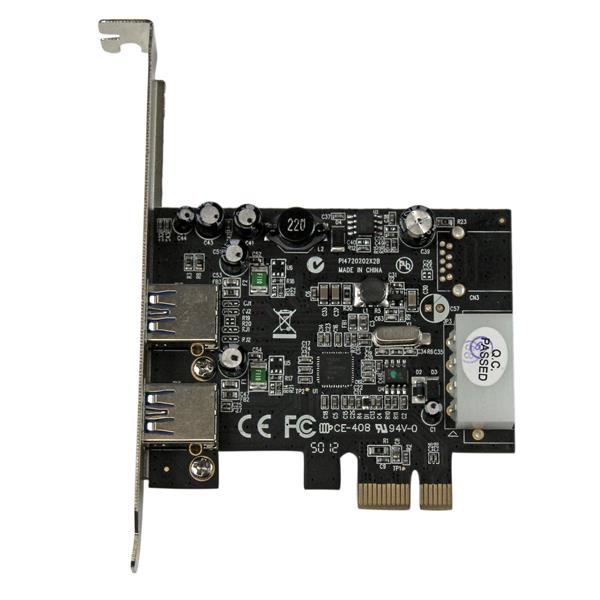

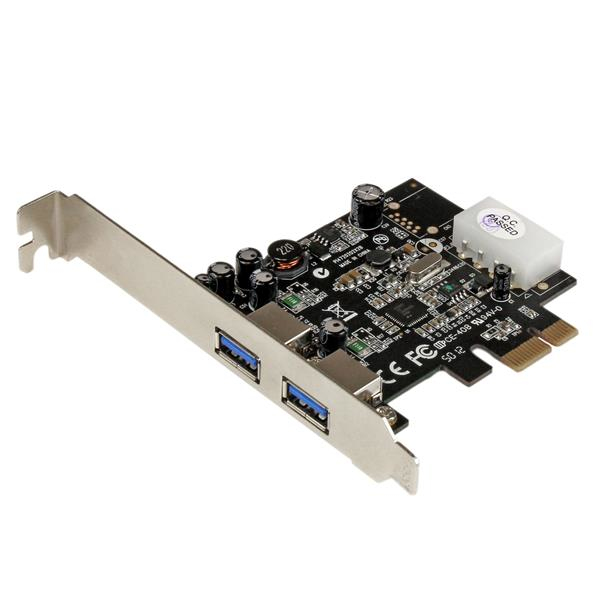

The Startech.com PEXUSB3S25 is a PCIe-USB-3.2-Gen-1 controller card with two external USB ports, designed to be integrated into a PCI Express-compatible system to increase the number of available USB connections. The card is based on the Renesas/NEC µPD720202 chipset and supports the USB 3.2 Gen 1 (3.1 Gen 1) specification with a maximum data transfer rate of 5 Gbit/s. It is designed for use in computers featuring an available PCIe slot and enables the connection of external devices such as hard drives, printers, scanners, webcams, or digital cameras. The card is backward compatible with USB 2.0 and USB 1.0/1.1 devices, allowing older peripheral devices to continue functioning.

Applications
This card is suitable for expanding USB functionality in desktop PCs, workstations, or servers, especially when the existing USB ports are insufficient. It is particularly useful for upgrading older systems from USB 2.0 to USB 3.2 Gen 1. Support for UASP (USB Attached SCSI Protocol) enables more efficient data transfer, especially when connected to UASP-compatible storage devices, potentially increasing read speeds by up to 70% and write speeds by up to 40% compared to conventional USB 3.2 Gen 1 transfers. This also reduces CPU load by up to 80% under peak performance, improving overall system performance.

Features and Specifications in Detail

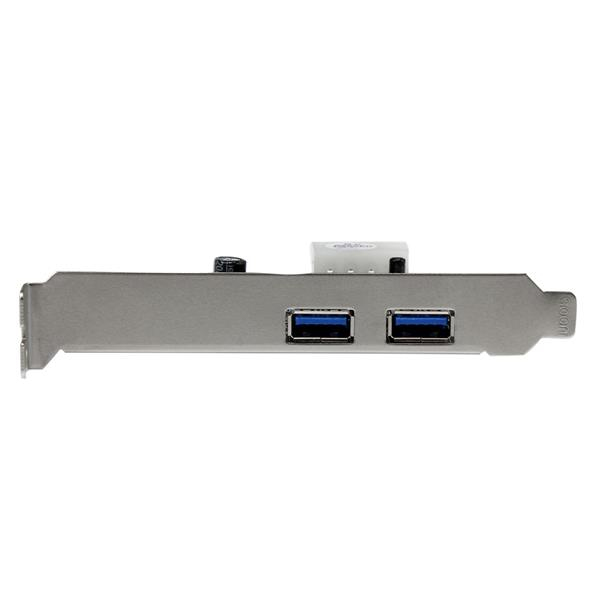

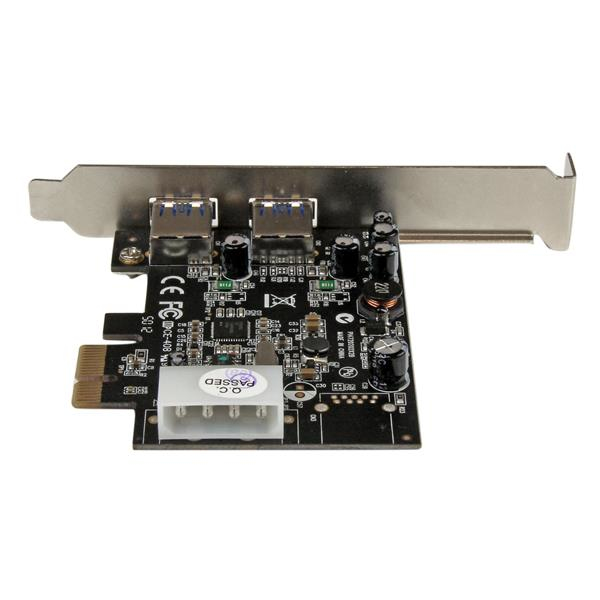

The card features two USB Type-A ports (9-pin) on the front panel and includes an optional LP4 power connector (4-pin, Molex) that provides up to 900 mA per port. This enables power delivery to USB 3.2 Gen 1-powered devices, with USB 2.0 devices receiving up to 500 mA. The card comes with a standard-height bracket and also includes a low-profile/half-height bracket, allowing installation even in compact computers. The maximum cable length for connected devices is 3 m.

Technical Explanation
The card operates according to the PCI Express 2.0 specification, making it suitable for systems supporting at least this version. The UASP technology optimizes data transfer by processing multiple commands simultaneously, unlike the traditional USB BOT (Bulk-Only Transport). This results in reduced wait times and higher transfer rates, especially with large data volumes. The card complies with the standards USB 3.0 Rev. 1.0, Intel xHCI Rev. 1.0, PCI Express Base Spec Rev. 2.0, and the USB Battery Charging Specification Rev. 1.2. Power is supplied via the LP4 connector, which connects to the system power supply.

Compatibility and Accessories

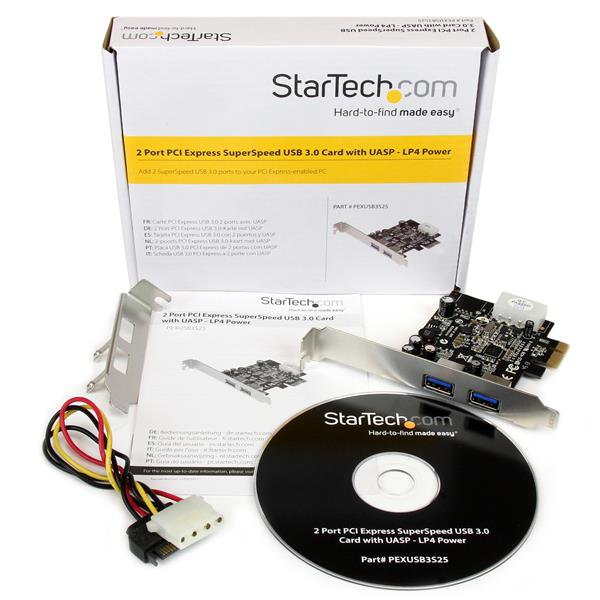

The card is compatible with a wide range of operating systems, including Windows 7, 8, 8.1, 10 (all variants, including x64 and IOT Core), as well as Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016, 2019. Linux systems from kernel 2.6.31 (LTS versions only) are also supported. The UASP feature is available under Windows 8, Server 2012, and Linux kernels 2.6.37 or higher. The card is supplied with drivers and an operating manual to assist with installation and configuration.

Installation and Mounting
Installation involves inserting the card into a free PCIe x1 slot in the computer. The appropriate bracket (standard-height or low-profile) is selected based on the case size. The LP4 connector must be connected to the system’s power supply to ensure sufficient power for the USB ports. The card is designed for operation within a temperature range of 0 to 50 °C and relative humidity of 5 to 85 %. For storage, temperatures from -20 to 60 °C are permissible.

Operational Advantages
The card provides a reliable and high-performance extension of USB functionality. UASP support leads to significantly faster data transfers, especially with external storage devices. Backward compatibility ensures continued use of existing USB devices. The inclusion of two bracket variants increases installation flexibility in different computer cases. The card is certified to CE and FCC standards and complies with the RoHS directive, ensuring environmental compatibility and safety.

Design
Maximum cable length3 m
CertificationCE, FCC
InternalYes
Features
ChipsetRenesas / NEC - µPD720202
Data transfer rate (max)5 Gbit/s
UASP supportYes
Logistics data
Harmonized System (HS) code84733020
Products per master (outer) case40 pc(s)
Master (outer) case width452 mm
Master (outer) case length383 mm
Master (outer) case height325 mm
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)5 - 85%
Packaging data
Cables includedSATA
Package width217 mm
Package depth148 mm
Package height37 mm
Package weight154 g
Drivers includedYes
ManualYes
Ports & interfaces
Host interfacePCIe
Output interfaceUSB 3.2 Gen 1 (3.1 Gen 1)
Expansion card form factorFull-height / Low-profile
Expansion card standardPCIe 2.0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
System requirements
Windows operating systems supportedWindows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate
Server operating systems supportedWindows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Linux operating systems supportedYes
Technical details
Compliance certificatesRoHS
Weight & dimensions
Width18 mm
Depth82 mm
Height120 mm
Weight51 g


Product data sheet
Datasheet for Startech.com PEXUSB3S25, EAN: 0065030854603
