Startech.com PEXESAT322I 2 Port PCI Express SATA 6 Gbps eSATA Controller Card - Dual Port PCIe SATA III Card - 2 Int/2 Ext

Your rating:
Average rating
product review for Startech.com PEXESAT322I 2 Port PCI Express SATA 6 Gbps eSATA Controller Card - Dual Port PCIe SATA III Card - 2 Int/2 Ext
( 4.5 / 5 ) 2 ratings
Startech.com PEXESAT322I
This image may differ from the desired article.
Startech.com PEXESAT322IStartech.com PEXESAT322IStartech.com PEXESAT322IStartech.com PEXESAT322IStartech.com PEXESAT322I
-18% 36,69 EUR 44,64 EUR
( 43,66 EUR incl. VAT )
≈ £30.71  |  ≈ $40.32
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >10 pieces
1x Startech.com PEXESAT322I 2 Port PCI Express SATA 6 Gbps eSATA Controller Card - Dual Port PCIe SATA III Card - 2 Int/2 Ext
Datasheet:file_download Download
Lieske Part No.:627132
Mfg Part No: PEXESAT322I
UPC/EAN: 0065030848428
Weight:0.175 kg
Type:ACCS

Product information for Startech.com PEXESAT322I:

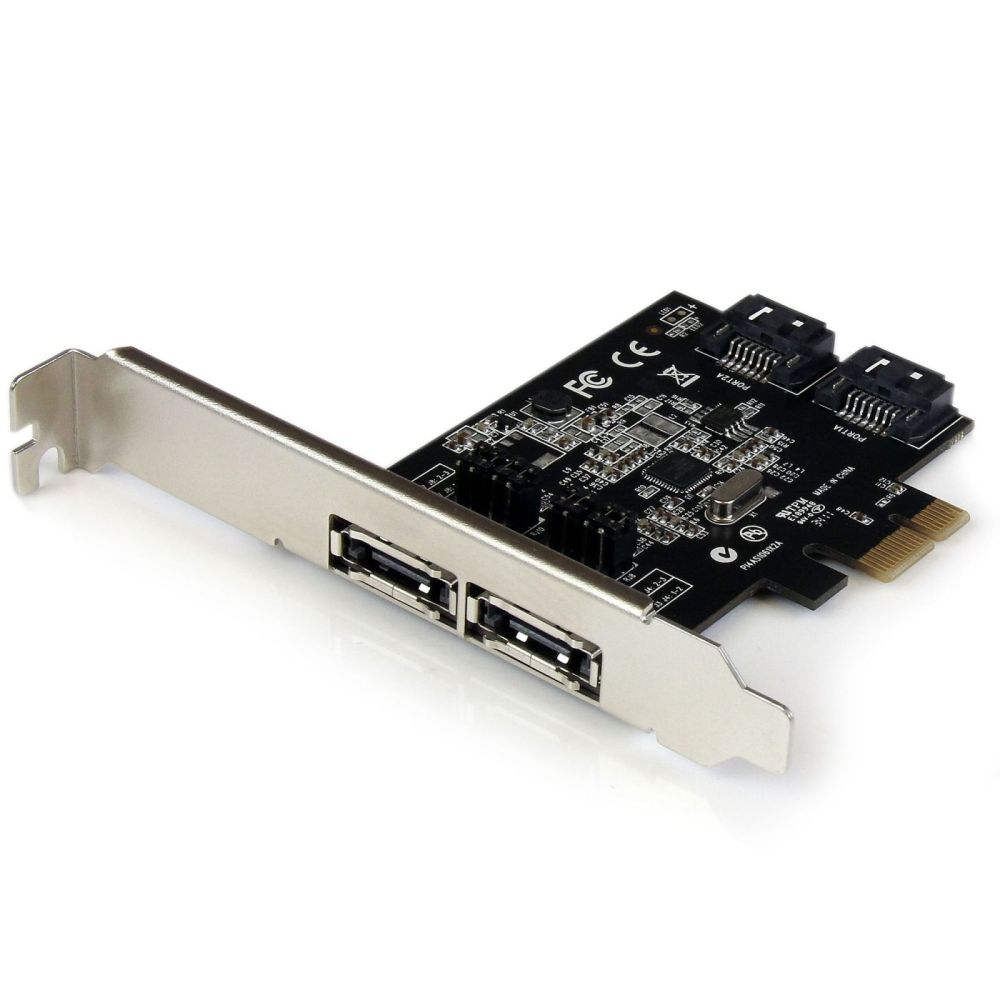

The Startech.com PEXESAT322I is a PCI Express SATA III controller card with two ports, integrated into a computer via a single PCIe x1 slot. It enables system expansion by adding two SATA ports, which can be configured as either internal or external connections. The card is based on the ASMedia ASM1061 chipset and supports the SATA Revision 3.0 specification, enabling a maximum data transfer rate of 6 Gbit/s. This bandwidth is suitable for use with high-performance hard drives, Solid State Drives (SSD), as well as SATA-based optical drives such as CD-ROM, DVD-ROM, or Blu-Ray.

Applications

The card is designed for systems requiring additional SATA connections without an integrated SATA controller on the motherboard. It is particularly suitable for workstations, server environments, or home PCs where external or internal drives need to be connected via a PCIe slot. The port multiplier function allows multiple drives to be connected to a single port via one cable, increasing the number of possible SATA connections and reducing cable clutter.

Features and Specifications in Detail

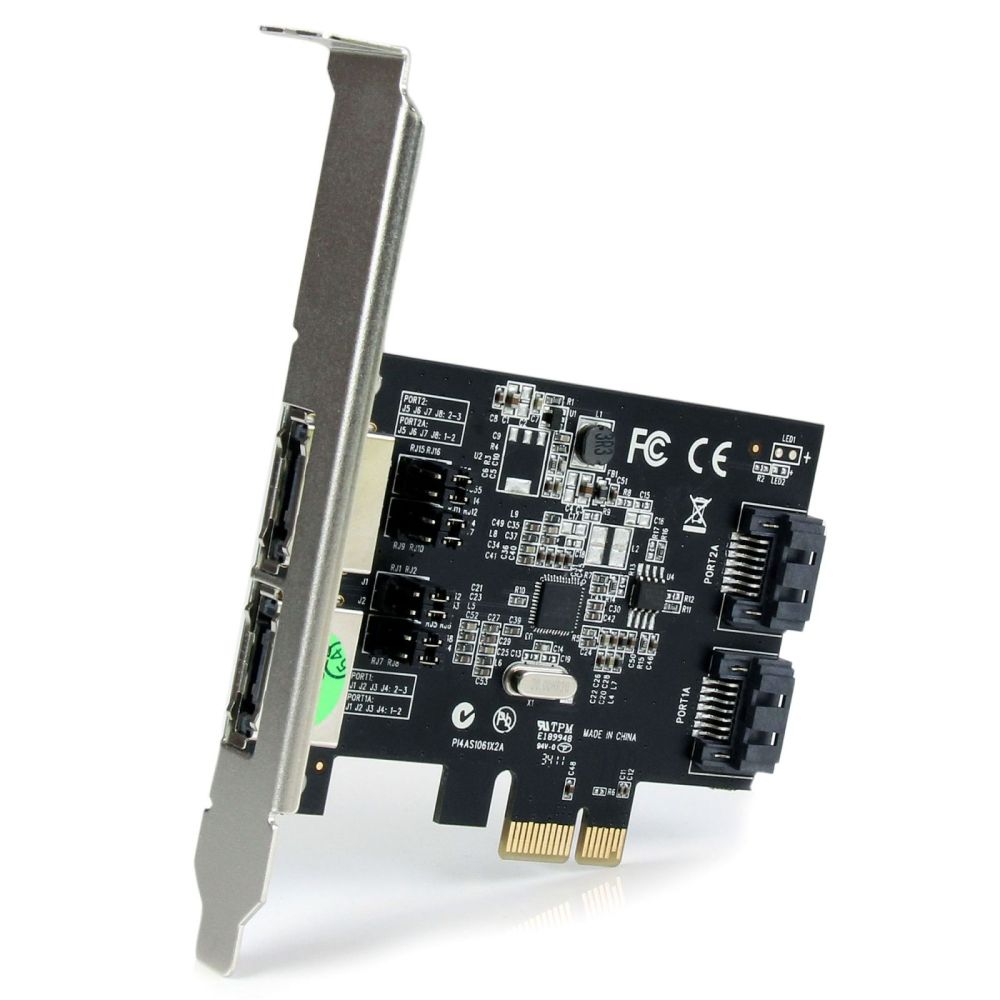

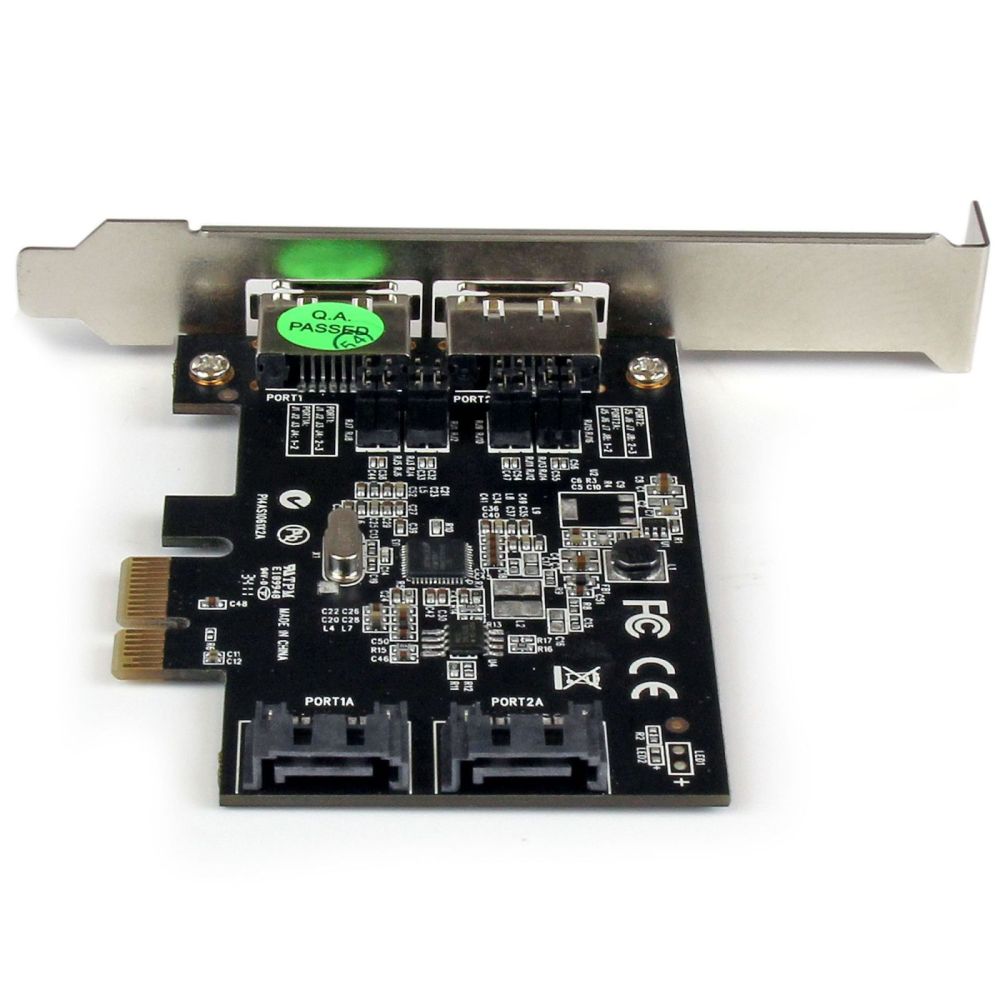

The card includes an on-board jumper control, allowing flexible configuration of the two SATA ports: either as two internal, two external, or one internal and one external port. Logical Block Addressing (LBA) is supported with 48 bits, enabling management of hard drives larger than 2 TB. Support for Native Command Queuing (NCQ) optimizes performance during multiple simultaneous read and write operations, especially with SSDs and high data loads.

Technical Explanation

The PCIe host interface ensures a stable and fast connection to the motherboard. The SATA ports operate with the SATA 3.0 revision, offering a maximum speed of 6 Gbit/s. The card is designed for use in industrial environments, with an operating temperature range of 0 to 50 °C. Relative humidity during operation is 5 to 85 %, ensuring reliable performance in typical office and server rooms. Certifications CE, FCC, and REACH confirm compliance with European and American standards for electromagnetic compatibility and environmental safety.

Compatibility and Accessories

The card is compatible with a wide range of Windows operating systems, including Windows 7, 8, 10 in various editions (Home, Pro, Enterprise, Education, Ultimate, Starter) as well as x64 versions. It also supports server operating systems such as Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016, and 2019. The package includes SATA cables, mounting brackets, drivers, and an operating manual to facilitate installation and configuration.

Installation and Mounting

Installation involves inserting the card into an available PCIe x1 slot on the motherboard. The jumper settings are adjusted directly on the board to select the desired configuration (internal/external). After physical installation, driver installation is required, with drivers included in the package. The card is designed for internal operation and is not intended for external use.

Operational Advantages

The card provides flexible expansion for SATA connections without requiring a full SATA controller adapter. The port multiplier function reduces the number of required cables, making cabling inside the PC case more organized. Support for 48-bit LBA and NCQ ensures efficient use of modern storage media. The certifications and specified operating conditions guarantee reliable performance in professional environments.

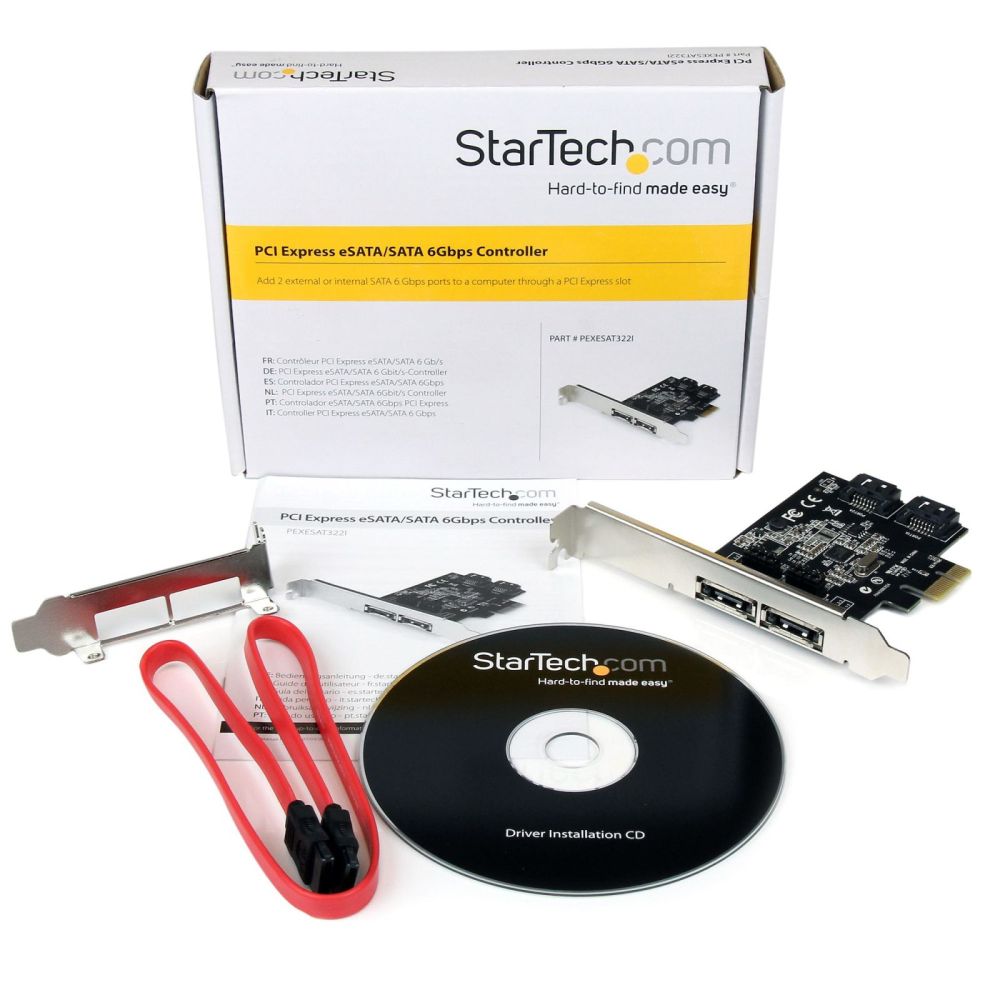

The card is compact, with a weight of 48 g and dimensions of 92 mm (width) × 121 mm (depth) × 20 mm (height), fitting easily into standard PC cases. The packaging includes all necessary components for installation, including mounting brackets, SATA cables, driver CD, and operating manual.

Design
CertificationCE, FCC, REACH
InternalYes
Features
ChipsetASMedia - ASM1061
Logical block addressing (LBA) support48 bit
Native Command Queuing (NCQ)Yes
Logistics data
Harmonized System (HS) code84733020
Products per master (outer) case40 pc(s)
Master (outer) case width451 mm
Master (outer) case length379 mm
Master (outer) case height325 mm
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)5 - 85%
Packaging data
Quantity1
Cables includedSATA
Package width216 mm
Package depth148 mm
Package height36 mm
Package weight152 g
Mounting brackets includedYes
Drivers includedYes
ManualYes
Ports & interfaces
Host interfacePCIe
Output interfaceSATA
SATA revision3.0

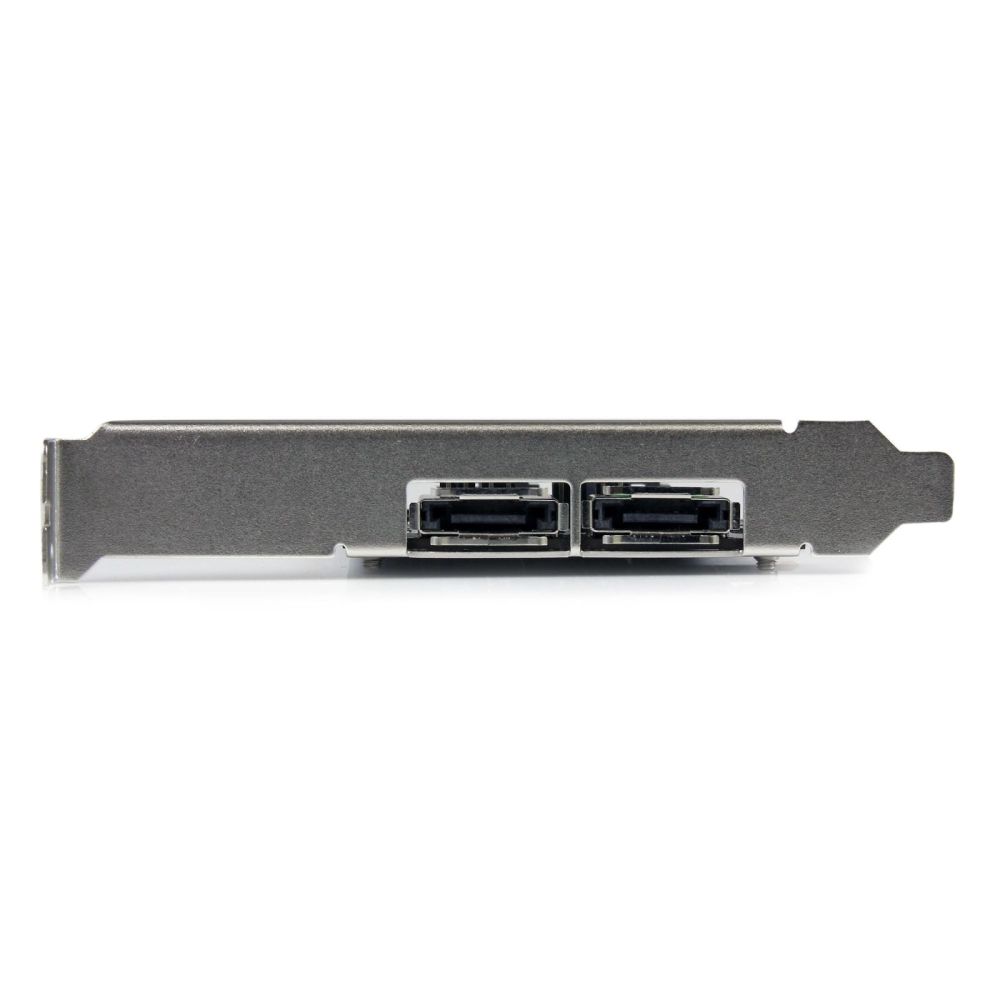

eSATA ports quantity2
Internal SATA ports quantity2
Port multiplierYes
System requirements
Windows operating systems supportedWindows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8
Server operating systems supportedWindows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Technical details
Compliance certificatesRoHS
Weight & dimensions
Width92 mm
Depth121 mm
Height20 mm
Weight48 g


Product data sheet
Datasheet for Startech.com PEXESAT322I, EAN: 0065030848428
