Startech.com ICUSB2324I 4-Port USB to Serial RS232 Adapter Hub Industrial DIN Rail Wall-mountable USB to Serial DB9 Converter
|
114,25 EUR |
|
|
( 135,96 EUR incl. VAT ) ≈ £95.63 | ≈ $127.85 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| End-Of-Life: | 07. Sep 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 640989 |
| Mfg Part No: | ICUSB2324I |
| UPC/EAN: | 0065030848343 |
| Weight: | 0.523 kg |
| Type: | EXT |
Product information for Startech.com ICUSB2324I:

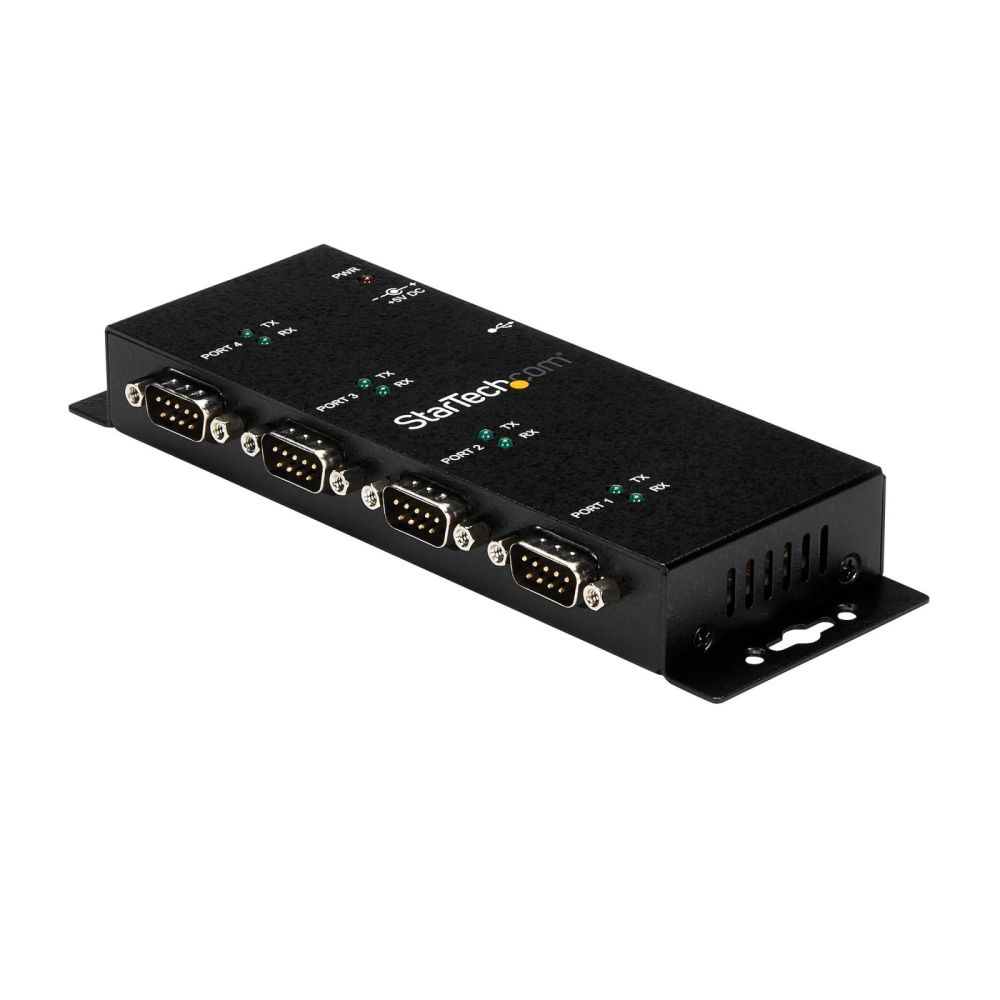

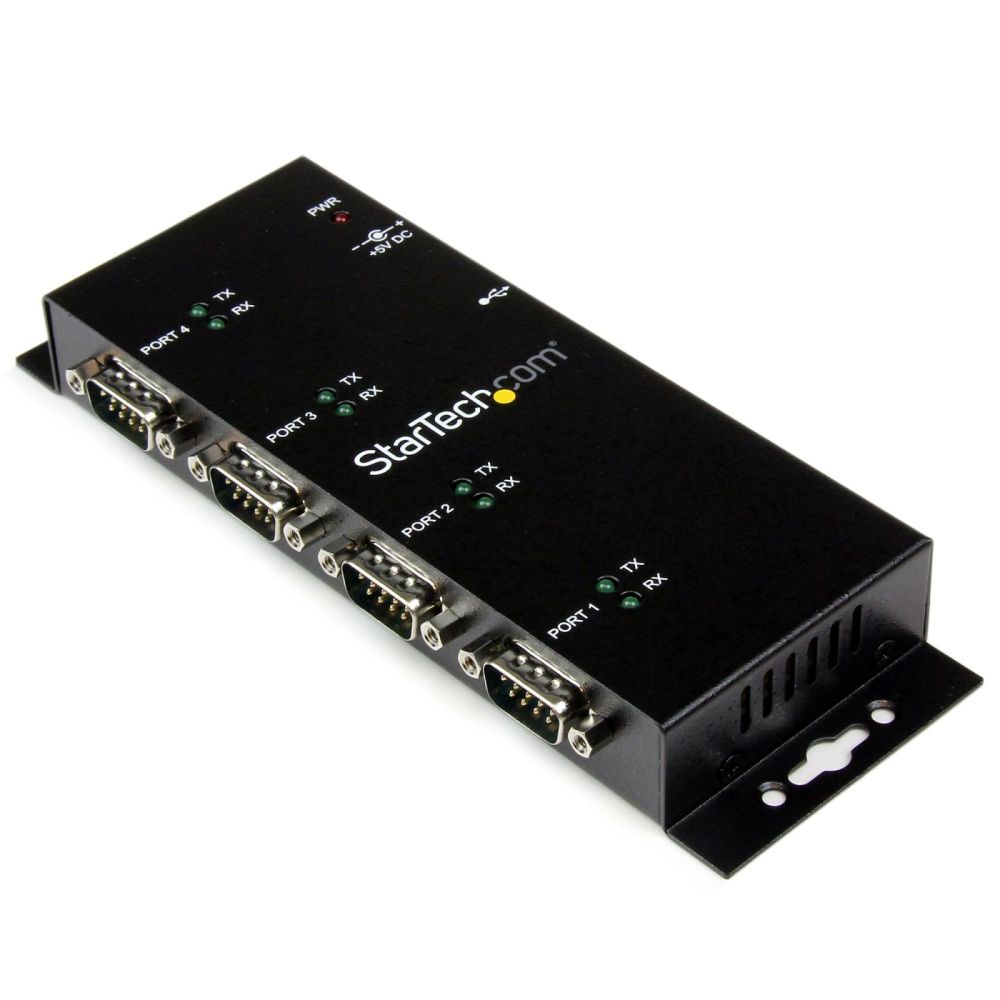

Add 4 DIN Rail-mountable RS232 Serial ports to any system through USB. The ICUSB2324I 4-Port Industrial USB to Serial Hub with DIN Rail Clips converts a single USB port into four RS232 serial ports, enabling you to connect to, monitor and control your serial devices. Featuring rugged metal construction, with sturdy wall-mounting brackets and top-hat DIN Rail clips (included), this USB to Serial Hub provides versatile mounting options and a robust solution for both harsh industrial environments and simple desktop installations. This USB powered adapter also retains assigned serial COM port values once connected, allowing the same values to be automatically reassigned to the ports provided by the adapter.
| Features | |
| Product colour | Black |
| Housing material | Steel |
| LED indicators | Activity |
| Logistics data | |
| Master (outer) case width | 430 mm |
| Master (outer) case length | 510 mm |
| Master (outer) case height | 270 mm |
| Products per master (outer) case | 25 pc(s) |
| Harmonized System (HS) code | 84719000 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Other features | |
| Chipset | FTDI - FT4232HL |
| Packaging content | |
| Cables included | USB |
| Manual | |
| DIN rail kit included | |
| Drivers included | |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 150 mm |
| Package depth | 215 mm |
| Package height | 50 mm |
| Package weight | 518 g |
| Performance | |
| Data bits | 7, 8 |
| Stop bits | 1, 2 |
| Parity bit | Even, Mark, No, Odd, Space |
| FIFO (First In, First Out) | 256 B |
| Baud rate | 921.6 Kbit/s |
| Mean time between failures (MTBF) | 282713.5 h |
| Ports & interfaces | |
| Host interface | USB 2.0 Type-B |
| Hub interfaces | Serial |
| Ports quantity | 4 |
| RS-232 ports | 4 |
| Card reader integrated | |
| DC-in jack | |
| Power | |
| Power source type | USB |
| Power plug type | Type M |
| Sustainability | |
| Sustainability compliance | |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Window |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Other operating systems supported | Windows XP Embedded |
| Linux operating systems supported | |
| Technical details | |
| Compliance certificates | CE, RoHS |
| Weight & dimensions | |
| Width | 59 mm |
| Depth | 1788 mm |
| Height | 23 mm |
| Weight | 300 g |
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
Questions & answers
What is the delivery time of Startech.com ICUSB2324I 4-Port USB to Serial RS232 Adapter Hub Industrial DIN Rail Wall-mountable USB to Serial DB9 Converter?
The article Startech.com ICUSB2324I 4-Port USB to Serial RS232 Adapter Hub Industrial DIN Rail Wall-mountable USB to Serial DB9 Converter is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Startech.com ICUSB2324I to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Startech.com ICUSB2324I 4-Port USB to Serial RS232 Adapter Hub Industrial DIN Rail Wall-mountable USB to Serial DB9 Converter always at the best possible price. We can give you a discount of 2% on Startech.com ICUSB2324I 4-Port USB to Serial RS232 Adapter Hub Industrial DIN Rail Wall-mountable USB to Serial DB9 Converter if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
