Startech.com ICUSB2322I 2 Port USB to Serial RS232 Adapter USB/DB9 Hub 2x DB9 plug 1x USB-B socket wall-mountable
|
-5% 68,61 EUR 72,43 EUR |
|
|
( 81,65 EUR incl. VAT ) ≈ £57.43 | ≈ $76.77 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| End-Of-Life: | 07. Sep 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 269162 |
| Mfg Part No: | ICUSB2322I |
| UPC/EAN: | 0065030846943 |
| Weight: | 0.4 kg |
| Type: | ACCS |
Product information for Startech.com ICUSB2322I:

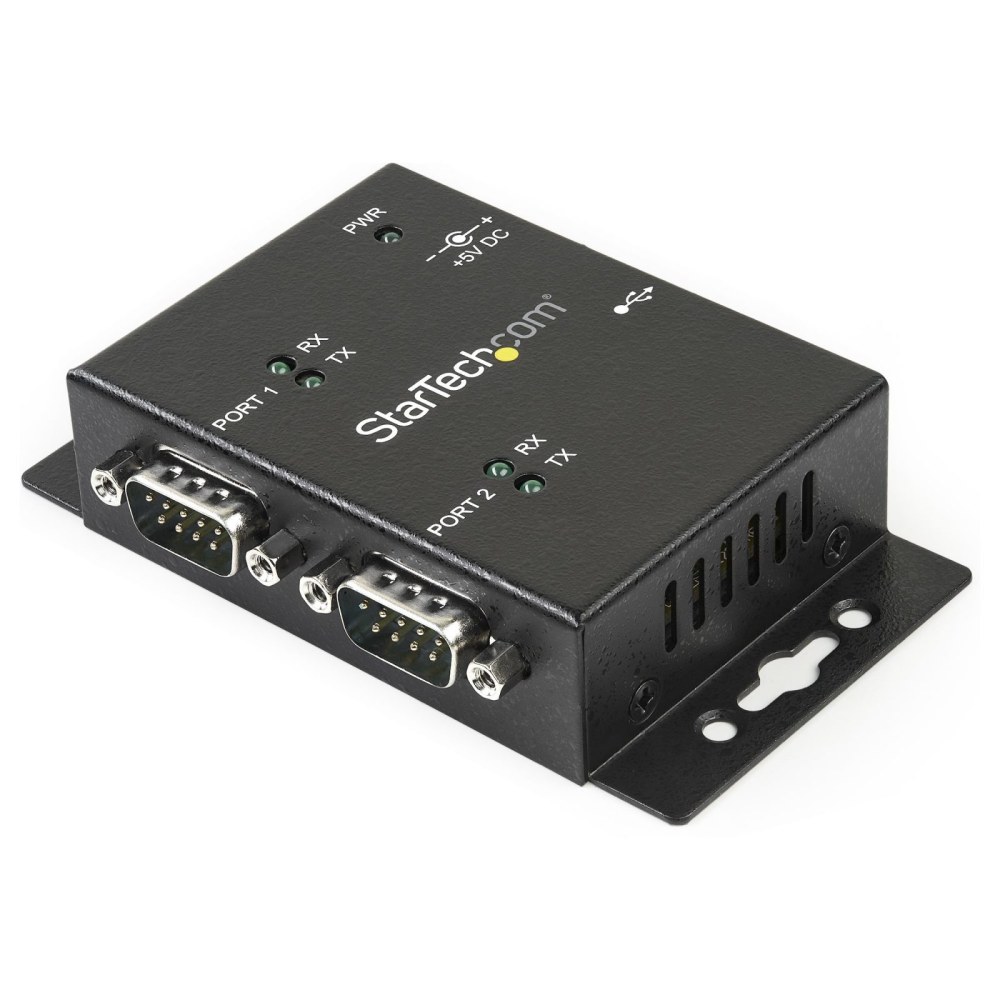

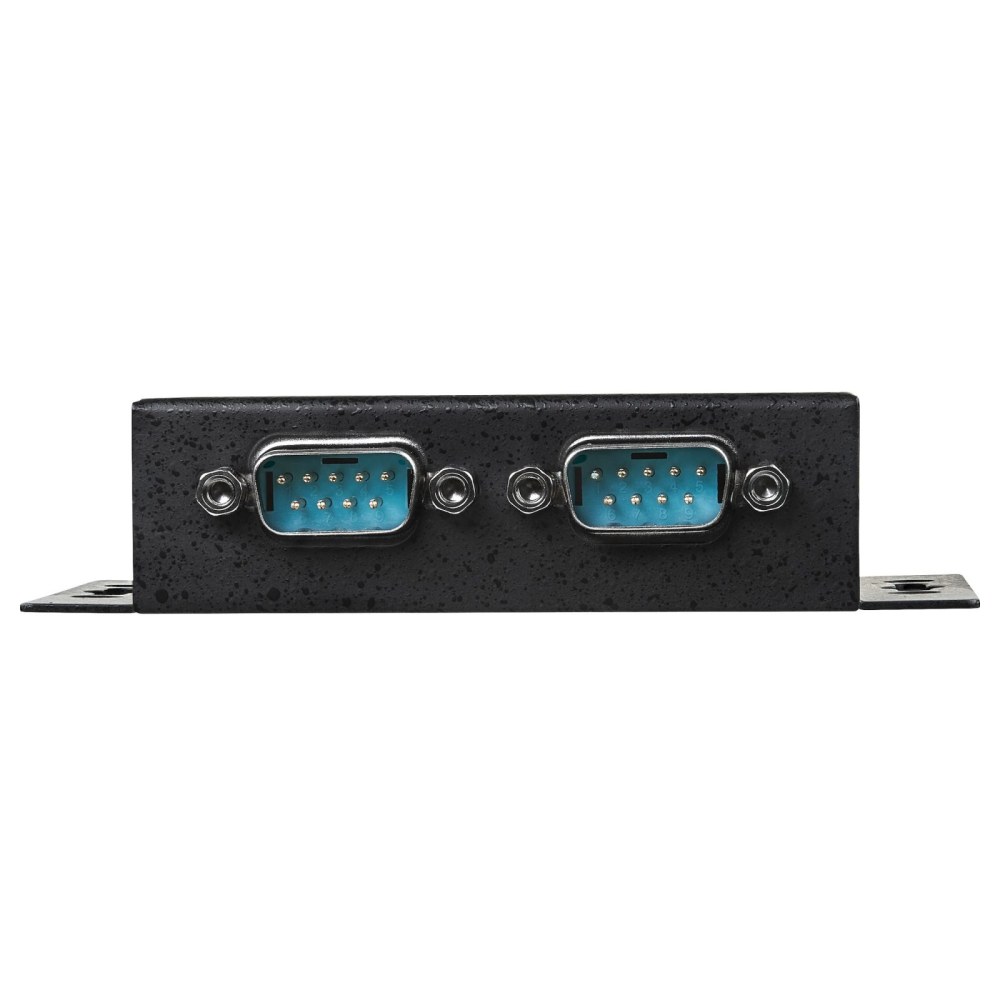

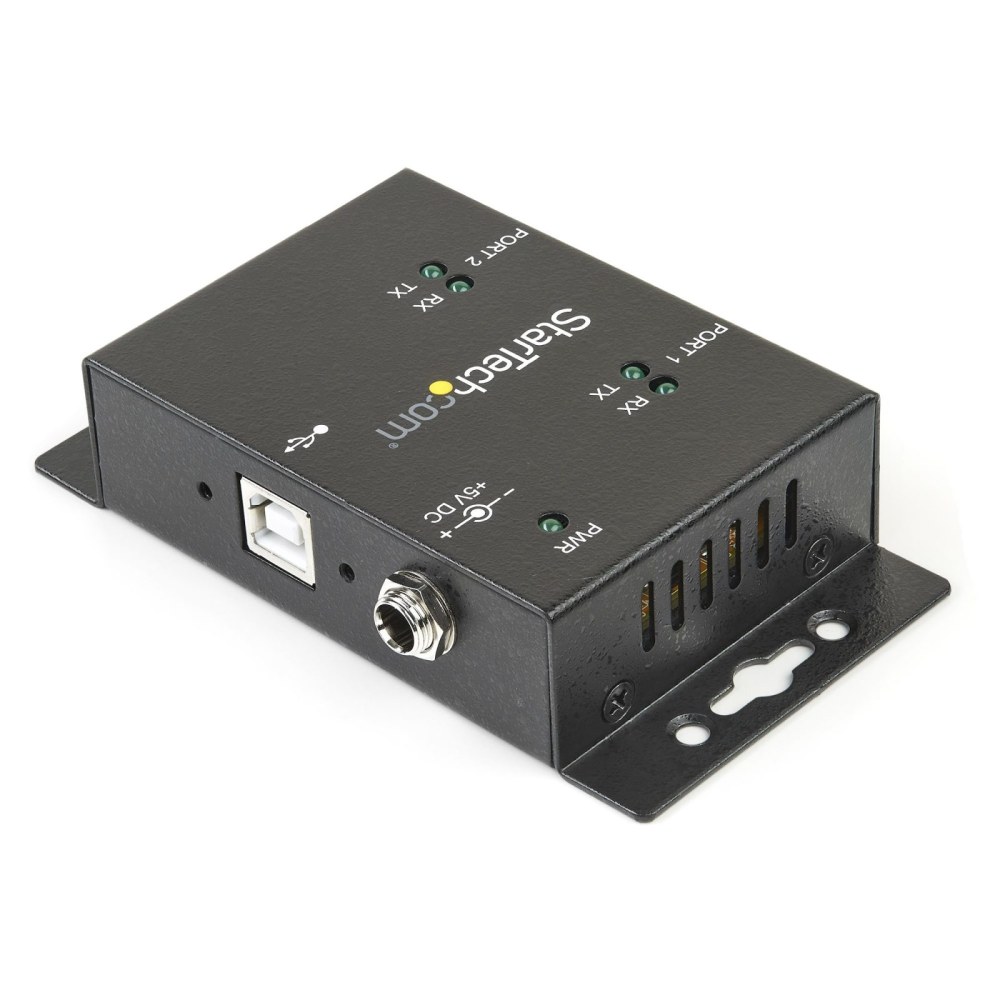

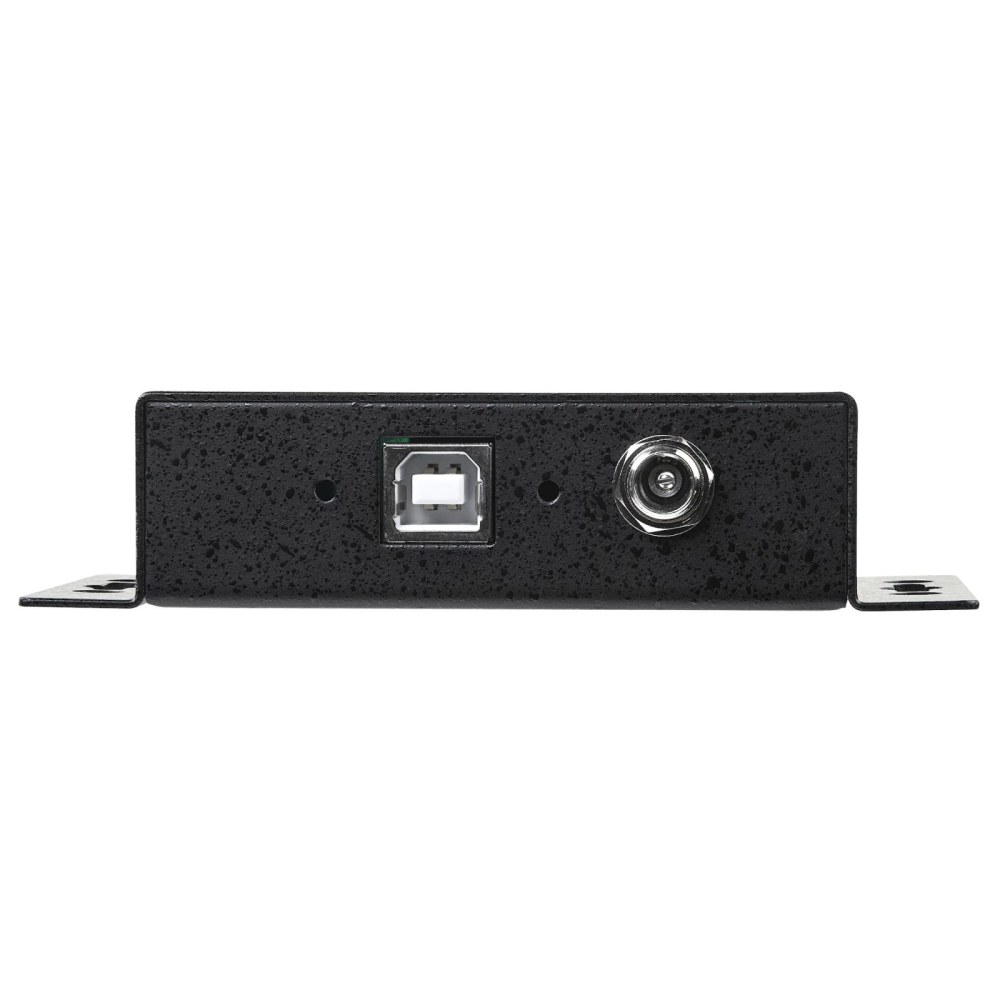

The ICUSB2322I 2-Port Industrial USB to Serial Hub with DIN Rail Clips converts a single USB port into two RS232 serial ports, enabling you to connect to, monitor and control your serial devices.
Featuring rugged metal construction, with sturdy wall-mounting brackets and top-hat DIN Rail clips (included), this USB to Serial Hub provides versatile mounting options and a robust solution for both harsh industrial environments and simple desktop installations.
This USB powered adapter also retains assigned serial COM port values once connected, allowing the same values to be automatically reassigned to the ports provided by the adapter.
Featuring rugged metal construction, with sturdy wall-mounting brackets and top-hat DIN Rail clips (included), this USB to Serial Hub provides versatile mounting options and a robust solution for both harsh industrial environments and simple desktop installations.
This USB powered adapter also retains assigned serial COM port values once connected, allowing the same values to be automatically reassigned to the ports provided by the adapter.
| Features | |
| Product colour | Black |
| Housing material | Steel |
| LED indicators | Activity |
| Logistics data | |
| Master (outer) case width | 545 mm |
| Master (outer) case length | 452 mm |
| Master (outer) case height | 336 mm |
| Products per master (outer) case | 50 pc(s) |
| Harmonized System (HS) code | 84719000 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Other features | |
| Chipset | FTDI - FT232RL |

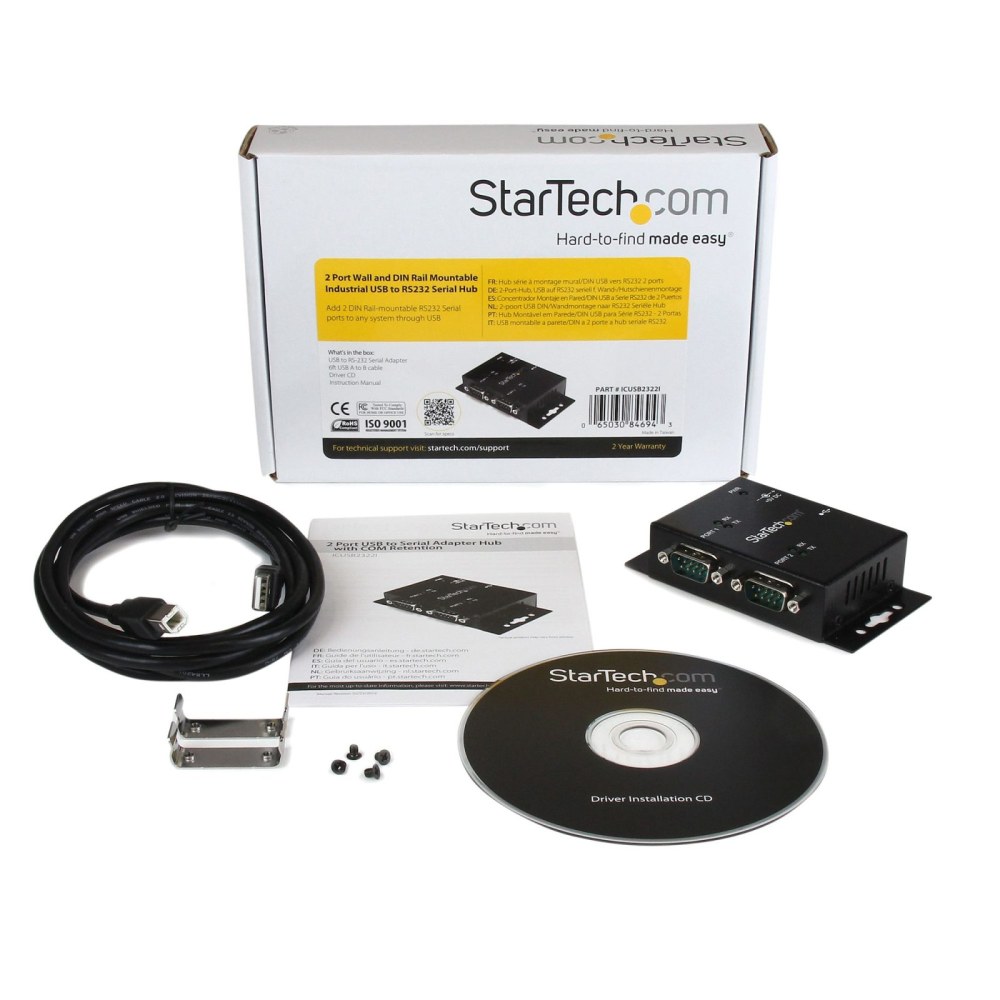

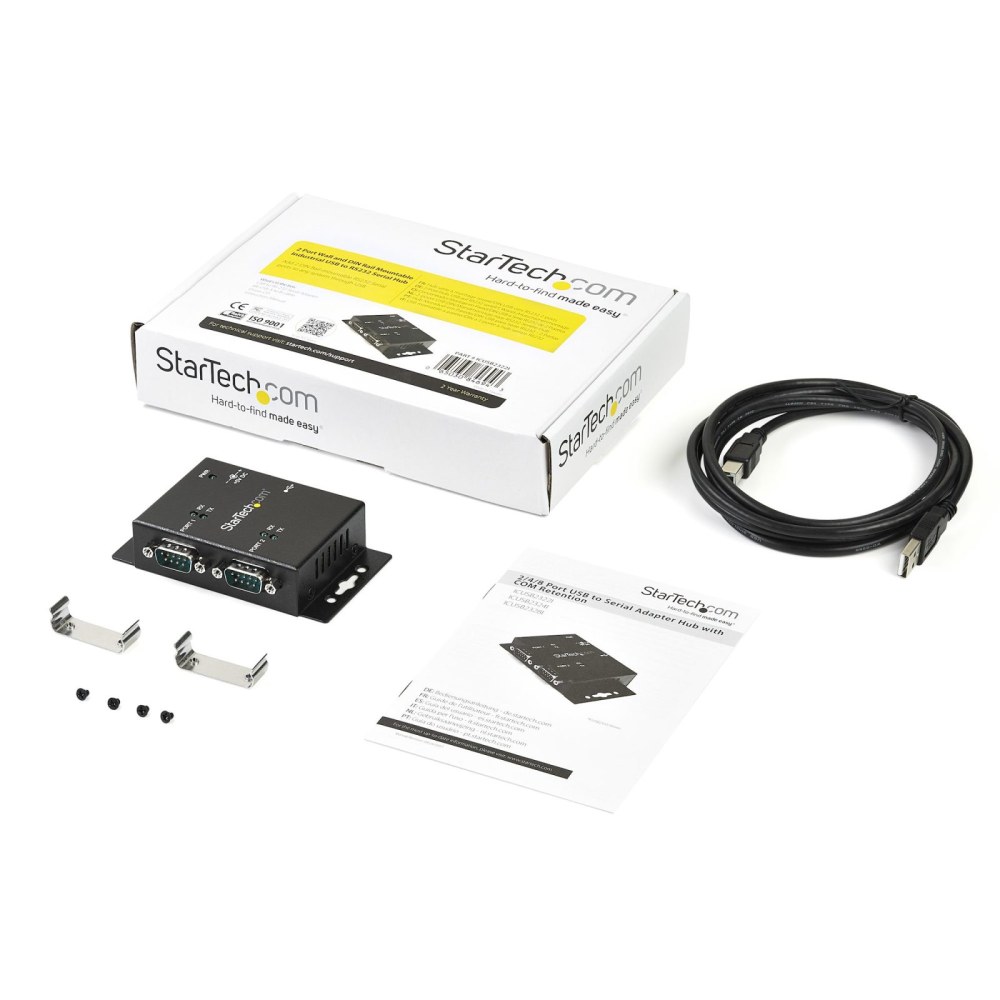

| Packaging content | |
| Cables included | USB |
| Manual | |
| DIN rail kit included | |
| Drivers included | |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 145 mm |
| Package depth | 208 mm |
| Package height | 43 mm |
| Package weight | 400 g |
| Performance | |
| Data bits | 7, 8 |
| Stop bits | 1, 2 |
| Parity bit | Even, Mark, No, Odd, Space |
| FIFO (First In, First Out) | 256 B |
| Baud rate | 921.6 Kbit/s |
| Ports & interfaces | |
| Host interface | USB 2.0 Type-B |
| Hub interfaces | Serial |
| Ports quantity | 2 |
| RS-232 ports | 2 |
| Card reader integrated | |
| DC-in jack | |
| Sustainability | |
| Sustainability compliance | |
| System requirements | |
| Windows operating systems supported | Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Wi |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura |
| Other operating systems supported | Windows XP Embedded |
| Compatible operating systems | Windows 7 (32/64bit), Vista(32/64), XP(32/64), 2000, CE, Windows Server 2008 R2, 2003(32/64), 2000, Mac OS 10.x, Linux 2.4.x/ 2.6.x |
| Linux operating systems supported | |
| Technical details | |
| Compliance certificates | CE, RoHS |
| Weight & dimensions | |
| Width | 66 mm |
| Depth | 104 mm |
| Height | 24 mm |
| Weight | 162 g |
