Startech.com HD2VID2 HDMI to RCA adapter with audio, RCA composite video adapter, NTSC/PAL, 1080p, content_copy

The Startech.com HD2VID2 is an active video converter that converts digital HDMI signals into analog Composite-Video and Audio signals. It is used to connect HDMI-capable source devices to older displays equipped with RCA-Composite inputs, such as televisions, projectors, or monitors operating in NTSC or PAL systems. The converter box enables the use of modern devices with existing analog display systems without requiring hardware upgrades.

Applications
This converter is suitable for applications where a digital HDMI source must be connected to an analog display. Examples include presentations using older projection systems that lack HDMI inputs, or playing home videos on older televisions. It is designed for home and office applications where compatibility between new source devices and existing display devices is required.

Features and Specifications in Detail

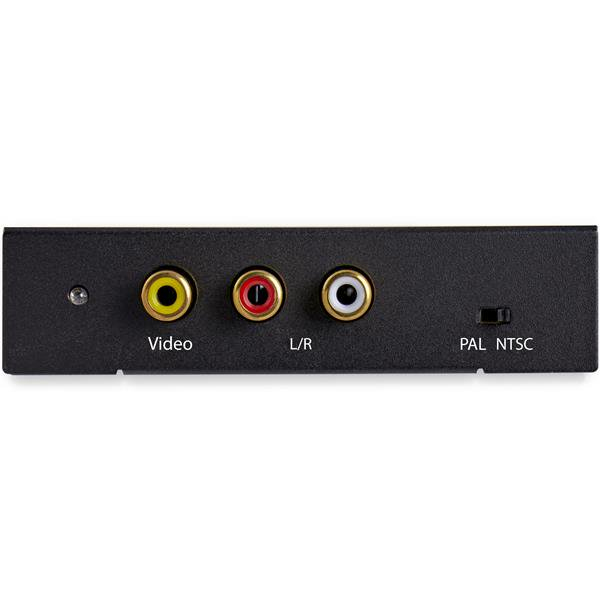

The HD2VID2 converts HDMI signals into Composite-Video (yellow RCA connector) and Stereo-Audio (red and white RCA connectors). The converter supports input resolutions up to 1080p, including 480p, 576p, 720p, and 1080p, as well as PC modes such as 1920x1080, 1280x800, 800x600, and 640x480. Output is provided in 480i or 576i mode, depending on the selected system (NTSC or PAL). An integrated PAL/NTSC switch allows manual selection of the video system. The converter features noise reduction, frame rate conversion, and adaptive contrast optimization to maintain image quality. Installation is plug-and-play, requiring no additional software or drivers.

Technical Explanation

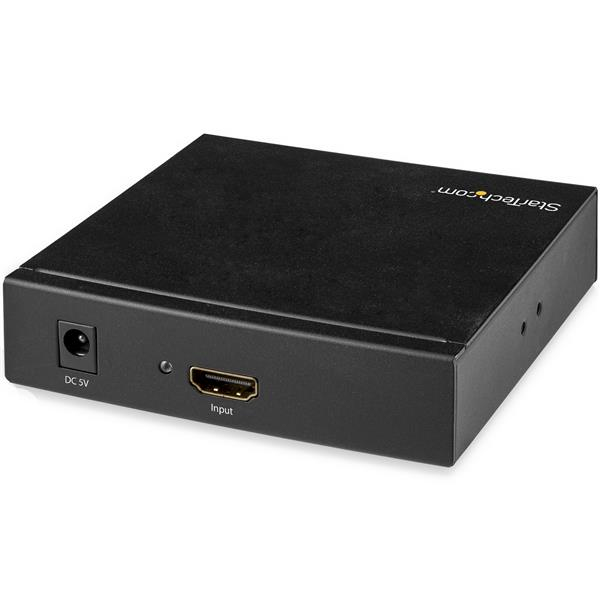

The converter operates actively, meaning it electronically converts the digital HDMI signal into an analog Composite signal. The input side connects to the source via an HDMI connector (19-pin), while the output side uses RCA connectors for video and audio. Power is supplied via an external power adapter with an input voltage of 100 to 240 V and an output voltage of 5 V at 2 A. Power is delivered through a Type-M connector. The operating temperature range is 0 to 40 °C, with relative humidity during operation ranging from 20 to 90 %. The converter box is compact, measuring 103 mm (width) × 104 mm (depth) × 25 mm (height), and weighs 225 g.

Compatibility and Accessories
The converter is compatible with almost all HDMI-capable source devices, such as Blu-ray players, set-top boxes, computers, or streaming devices. The output is designed for standard-definition displays that receive Composite-Video and Stereo-Audio via RCA connectors. The package includes a universal power adapter with plug types for ANZ, EU, JP, NA, and UK, two mounting brackets, four screws, and an operating manual. The converter is designed for use in both NTSC and PAL systems.

Installation and Mounting

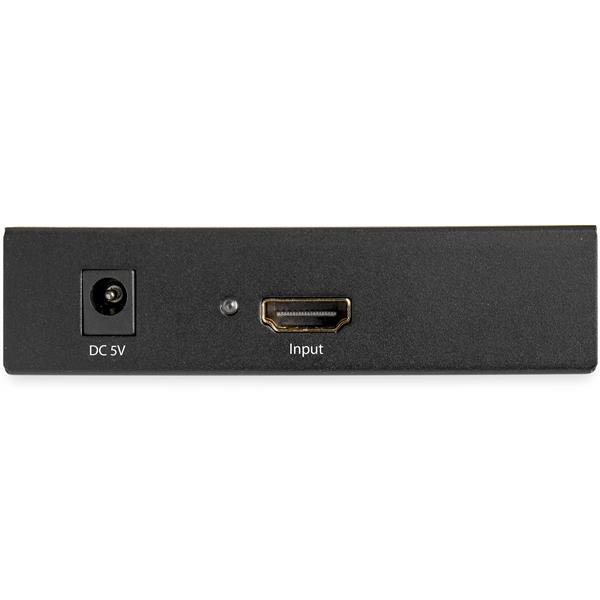

Power is supplied via the DC/5V connector on the converter. LED indicators signal operation and connection status. The PAL/NTSC mode is set using the switch on the converter box.

Operational Advantages
The converter offers simple, maintenance-free operation without software installation. The plug-and-play function enables quick setup. Support for multiple resolutions and video systems (NTSC/PAL) increases flexibility. Integrated image quality features ensure a clear output image. The compact design and low weight make the converter portable and suitable for mobile applications. The converter box is certified to REACH, FCC, and RoHS standards.

Certifications and Standards
The converter complies with REACH, FCC, and RoHS standards. FCC certification ensures compliance with regulations for digital devices in Class B, guaranteeing limited electromagnetic interference in home environments. RoHS certification confirms the use of environmentally compatible materials without hazardous substances.

Product Color and Design

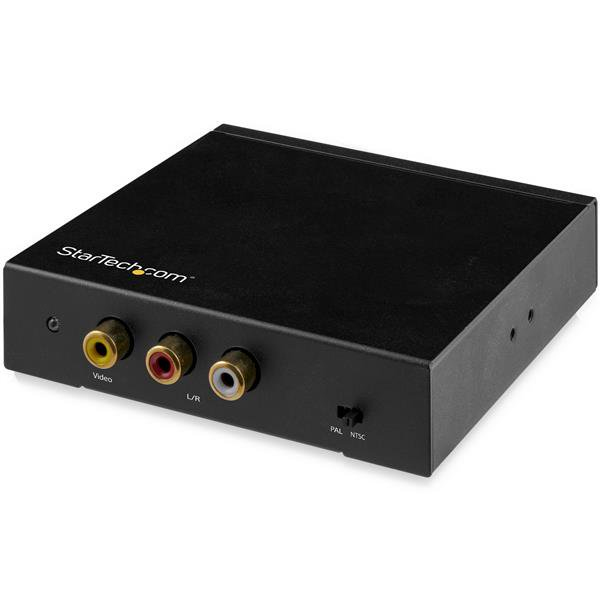

The converter box is black and features a robust, compact design. The surface is smooth, and the connectors are clearly labeled. LED indicators for input and power supply facilitate operation.

Operating Conditions
The converter can be operated at temperatures from 0 to 40 °C. Relative humidity during operation is 20 to 90 %. For storage, temperatures from -20 to 60 °C are permissible.

Package Contents
The package includes: 1 HDMI-to-Composite converter, 1 universal power adapter with plug types for ANZ, EU, JP, NA, and UK, 2 mounting brackets, 4 screws, and 1 user manual.

Certifications
The converter box is certified to REACH, FCC, and RoHS standards. FCC certification ensures compliance with regulations for digital devices in Class B. RoHS certification confirms the use of environmentally compatible materials without hazardous substances.

Compatibility
The converter is compatible with HDMI-capable source devices and analog displays with Composite-Video and Stereo-Audio inputs. Support for NTSC and PAL enables use in various regions.

Accessories
A Phillips screwdriver is required for mounting the mounting brackets.

Warranty and Support
The converter comes with a 2-year hardware warranty and free technical support for the entire product lifetime.

Audio
Audio output channels	2.0 channels
Audio sampling rate	48 kHz
Features
Converter type	Active video converter
Product colour	Black
Certification	REACH, FCC
Logistics data
Harmonized System (HS) code	85176990
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 90%
Packaging data
Included power plug types	ANZ, EU, JP, NA, UK
Package width	150 mm
Package depth	210.5 mm
Package height	52 mm
Package weight	545 g
AC adapter included
Mounting bracket(s) included
Manual
Ports & interfaces
Host interface	HDMI
Power
Input voltage	100 - 240 V
Operating voltage	5 V
Operating current	2 A
Input current	0.4 A
Power plug type	Type M
External power adapter
Technical details
Compliance certificates	RoHS
Video
Maximum video resolution	1920 x 1080 pixels
Video resolutions	640 x 480,800 x 600,1920 x 1080
Supported video modes	480p, 576p, 720p, 1080p
Weight & dimensions
Width	103 mm
Depth	104 mm
Height	25 mm
Weight	225 g

---
