Softing IT Networks WX-500-PLUS,228144 Softing WireXpert 500-PLUS LAN copper cable and fiber optic certifier up to 500 MHz Class D, E, EA and CAT 5, 6, 6A, 228144

Your rating:
Average rating
product review for Softing IT Networks WX-500-PLUS,228144 Softing WireXpert 500-PLUS LAN copper cable and fiber optic certifier up to 500 MHz Class D, E, EA and CAT 5, 6, 6A, 228144
( 4.6 / 5 ) 15 ratings
Softing IT Networks WX-500-PLUS,228144
This image may differ from the desired article.
Softing IT Networks WX-500-PLUS,228144Softing IT Networks WX-500-PLUS,228144
-6% 7.528,95 EUR 8.027,50 EUR
( 8.959,45 EUR incl. VAT )
≈ £6,271.62  |  ≈ $8,259.26
plus delivery charges: 100,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Softing IT Networks WX-500-PLUS,228144 Softing WireXpert 500-PLUS LAN copper cable and fiber optic certifier up to 500 MHz Class D, E, EA and CAT 5, 6, 6A, 228144
Lieske Part No.:1495994
Mfg Part No: WX-500-PLUS,228144
Weight:6.2 kg

Product information for Softing IT Networks WX-500-PLUS,228144:

The Softing WireXpert 500-PLUS is a professional network tester for the certification of copper cables and fibre optic lines. It is used for testing network cables according to standards Class D, E, EA as well as CAT 5, 6 and 6A and supports frequencies up to 500 MHz. The device is designed for use in the field of network infrastructure, particularly for the installation and maintenance of structured cabling in companies, buildings and data centres. It enables precise analysis of cable parameters and documentation of results for certified installations.

Applications

The WireXpert 500-PLUS is primarily used in the field of network infrastructure, where reliable and standard-compliant certification of cable connections is required. It is suitable for testing copper cables in categories CAT 5, 6 and 6A as well as fibre optic lines. The application includes installation, maintenance and fault diagnosis of LAN cabling, particularly in environments with high requirements for signal integrity and transmission quality, such as office buildings, industrial facilities or data centres.

Functions and Equipment in Detail

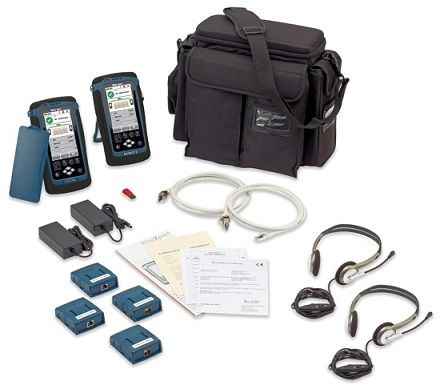

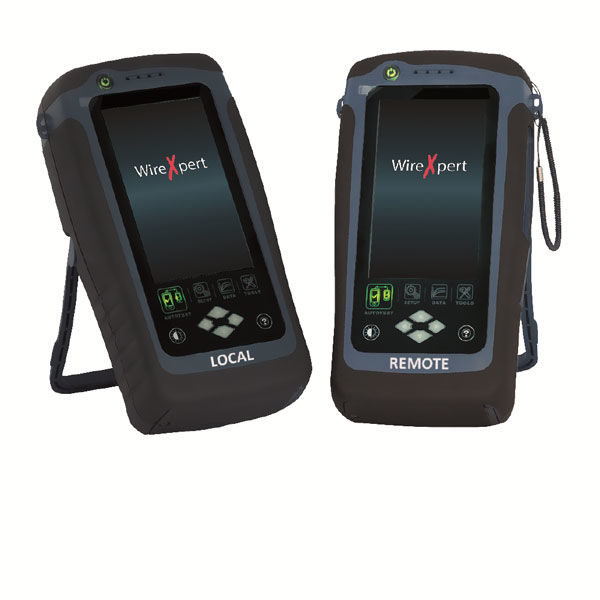

The device consists of two identical handheld units connected via a Dual Control System (DCSTM). This system enables bidirectional communication between the two units, allowing precise measurement of cable parameters such as impedance, attenuation, NEXT and Return Loss. The units are equipped with a Li-ion battery, enabling mobile use. The delivery includes a power supply, a carrying case, a calibration certificate, the evaluation software eXport, a Class EA Channel Adapter (1 pair), a Class EA Permanent Link Adapter Set (1 pair), a headset (1 pair), a USB stick and a quick start guide. The evaluation software eXport is used for documentation and analysis of measurement results.

Technology Explained Simply

Certification is performed by measuring various electrical and optical parameters that describe the quality of the connection. The devices measure attenuation, which quantifies signal losses along the cable, as well as NEXT values, which indicate crosstalk between conductors. Impedance measurement ensures the cable has the required resistance values to minimise signal reflections. Measurements are carried out up to a frequency of 500 MHz, enabling testing of modern high-speed connections. The devices are designed for testing cables according to standards Class D, E and EA as well as CAT 5, 6 and 6A.

Compatibility and Accessories

In addition to the adapters and headset included in the delivery, optional LWL adapters are available, enabling testing of fibre optic lines. The device can also be combined with the CP15 probe, which can be used for locating cables in complex cabling systems. The combination with this probe extends the functionality of the device for fault diagnosis in existing networks.

Installation and Mounting

Installation is performed by connecting the two handheld units via the Dual Control System. The units are connected to the ends of the cable to be tested, with adapters selected according to the cable category. The measurement is started via the user interface, and the results are displayed directly on the screen. Documentation is performed using the evaluation software eXport, which is delivered on the USB stick. The carrying case facilitates transport and protects the units during mobile use.

Advantages in Operation

The WireXpert 500-PLUS offers high measurement accuracy and reliability, which are required for the certification of network cables. The integrated evaluation software eXport enables fast and structured documentation of results. Mobile use, enabled by the Li-ion battery and carrying case, makes the device suitable for use outside the office. Certification according to international standards ensures compatibility with modern network standards and facilitates compliance with quality requirements for customers and contractors.

General
TechnologyDual Control System - DCSTM
Operating voltageLi-ion battery
CertificationClass D, E, EA, CAT 5, 6, 6A
Frequency rangeup to 500 MHz
Scope of deliverytwo identical handheld devices, Li-ion battery, power supply, carrying case, calibration certificate, evaluation software eXport, Class EA-Channel Adapter (1 pair), Class EA Permanent Link Adapter Set (1 pair), headset (1 pair), USB stick, quick start guide
AccessoriesOptional LWL adapters, Softing Cable Tracker Probe (only Prober! CP15)


Questions & answers

What is the delivery time of Softing IT Networks WX-500-PLUS,228144 Softing WireXpert 500-PLUS LAN copper cable and fiber optic certifier up to 500 MHz Class D, E, EA and CAT 5, 6, 6A, 228144?

The article Softing IT Networks WX-500-PLUS,228144 Softing WireXpert 500-PLUS LAN copper cable and fiber optic certifier up to 500 MHz Class D, E, EA and CAT 5, 6, 6A, 228144 is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Softing IT Networks WX-500-PLUS,228144 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Softing IT Networks WX-500-PLUS,228144 Softing WireXpert 500-PLUS LAN copper cable and fiber optic certifier up to 500 MHz Class D, E, EA and CAT 5, 6, 6A, 228144 always at the best possible price. We can give you a discount of 2% on Softing IT Networks WX-500-PLUS,228144 Softing WireXpert 500-PLUS LAN copper cable and fiber optic certifier up to 500 MHz Class D, E, EA and CAT 5, 6, 6A, 228144 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
