Softing IT Networks PD_CMVFL,226114 Softing CableMaster VFL red light source

Your rating:
Average rating
product review for Softing IT Networks PD_CMVFL,226114 Softing CableMaster VFL red light source
( 4.5 / 5 ) 2 ratings

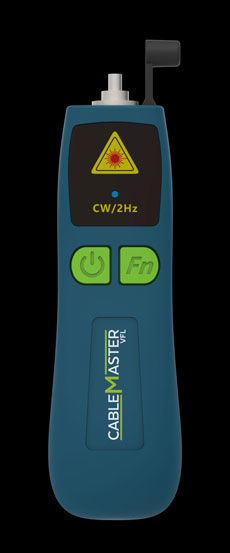

Softing IT Networks PD_CMVFL,226114
This image may differ from the desired article.
88,44 EUR
( 105,24 EUR incl. VAT )
≈ £73.94  |  ≈ $97.20
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Softing IT Networks PD_CMVFL,226114 Softing CableMaster VFL red light source
Lieske Part No.:1157826
Mfg Part No: PD CMVFL,226114
UPC/EAN: 0046382255034
Weight:0.3 kg

Product information for Softing IT Networks PD_CMVFL,226114:

The CableMaster VFL from Softing IT Networks is a red light source for optical inspection of fiber optic cables. The device is used for visual localization of breaks, faulty connections, or incorrect cabling in singlemode and multimode fiber optic lines. It is employed in the field of network infrastructure and telecommunications, where quick and reliable testing of cable integrity is required. The red light source generates visible red light, which is transmitted through the fiber optic cable and becomes visible at points of defects or poor connections.

Applications

The red light source is designed for testing fiber optic cables in various networks, particularly in the installation and maintenance of data communication systems. It is frequently used for troubleshooting cable connections to quickly identify physical damage or incorrect connections. The device is suitable for cables with 1.25 mm and 2.5 mm ferrules, making it universally applicable. The maximum range is approximately 10 km, with the visibility of the light depending on fiber quality and environmental conditions.

Functions and Equipment in Detail

The device features an integrated red light source, controlled via simple operation. It is powered by two AAA Ni-MH batteries with a voltage of 1.2 V, which are included in the delivery scope. The operating time depends on usage, although no specific runtime is specified. Also included in the delivery scope are an instruction card, an adapter 226111 (2.5 mm to 1.25 mm ferrule), and an FC adapter 226113. These adapters allow adaptation to different connector types and ferrule sizes, increasing compatibility with various cable types.

Technology Explained Simply

The red light source works by emitting visible red light that is coupled into the fiber optic cable. At a break or poor contact, the light exits at the fault location and becomes visible. This enables quick visual diagnosis without complex measuring instruments. The batteries used are rechargeable, increasing the reusability and cost-effectiveness of the device. The light source is designed for practical use, with simple and intuitive operation.

Compatibility and Accessories

The device is compatible with fiber optic cables using 1.25 mm or 2.5 mm ferrules. The included adapters (226111 and 226113) allow adaptation to different connector types, particularly FC connectors. As suitable accessories, an LWL Fiber Checker/Tester with laser light (VFL) for SM/MM is offered, which can also be used up to a range of approximately 10 km.

Mounting and Installation

Installation is performed by simply connecting the device to the fiber optic cable via the appropriate adapter. Operation is controlled via buttons on the device. No additional mounting or installation is required, as the device is designed as a handheld unit. Use occurs directly on the cable, with the light source coupled into the cable.

Advantages in Operation

The red light source provides a quick and simple method for visual inspection of fiber optic cables. The integrated adapters increase flexibility when working with different cable types. The rechargeable batteries reduce operational effort and costs in long-term use. The device is compact and easy to handle, making it suitable for mobile applications. The instruction card included in the delivery scope supports quick setup and use.

General
Device typeRed light source
Operating voltage1,2 V
Battery typeAAA Ni-MH
Number of batteries2
Adapter included226111 (2.5 mm to 1.25 mm ferrule), 226113 (FC adapter)
Transmission rangeca. 10 km
CompatibilityFibre optic cable with 1.25 mm and 2.5 mm ferrules
Scope of delivery1 x main unit, 2 x AAA Ni-MH 1.2V, 1 x manual card, 1 x 226111 adapter 2.5 to 1.25mm ferrule, 1 x 226113 FC adapter


Questions & answers

What is the delivery time of Softing IT Networks PD_CMVFL,226114 Softing CableMaster VFL red light source?

The article Softing IT Networks PD_CMVFL,226114 Softing CableMaster VFL red light source is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Softing IT Networks PD_CMVFL,226114 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Softing IT Networks PD_CMVFL,226114 Softing CableMaster VFL red light source always at the best possible price. We can give you a discount of 2% on Softing IT Networks PD_CMVFL,226114 Softing CableMaster VFL red light source if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.




Fitting accessory for Softing IT Networks PD_CMVFL,226114 Softing CableMaster VFL red light source

Synergy 21 S215491V2 LWL Fiber Checker/Tester, laser light, VFL for SM/MM, for 1.25/2.5 mm ferrules, up to approx. 10 km, tester, Synergy 21 LogoSynergy 21 S215491V2 LWL Fiber Checker/Tester, laser light, VFL for SM/MM, for 1.25/2.5 mm ferrules, up to approx. 10 km, tester, The fibre optic test device from Synergy 21, type S215491V2, is a compact measuring instrument for visual fault location in optical fibre cables (LWL). It serves as an aid for testing and maintenance ...
