Softing, NetXpert XG2 PLUS content_copy

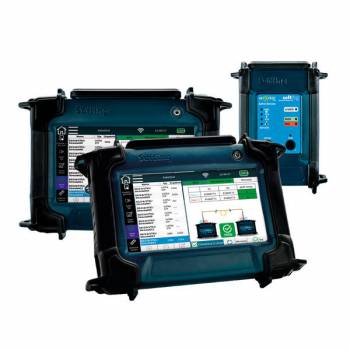

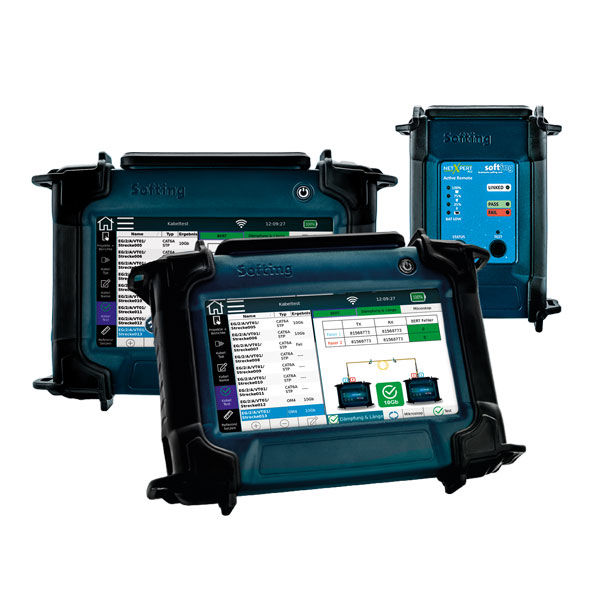

The NetXpert XG2 PLUS from Softing IT Networks is a professional network and cabling qualifier designed for testing copper and fibre optic cabling. The device serves for quality inspection and fault diagnosis in network infrastructures, particularly in environments requiring high transmission rates up to 10 Gbit/s. It enables analysis of wiring plans, measurement of cable lengths, and determination of distance to breaks or short circuits. The devices are designed for use in the installation, maintenance, and servicing of networks, with functions suitable for both copper and fibre optic cabling.

Applications

The NetXpert XG2 PLUS is used in professional network infrastructures, particularly for the installation and maintenance of LAN systems combining copper and fibre optic cables. It is suitable for qualifying cabling in office buildings, data centres, industrial facilities, and other environments where high reliability of data transmission is required. The ability to test both copper and fibre optic cables makes it a universal tool for network technicians working with various cabling types.

Functions and Equipment in Detail

The device performs active network tests, including PoE (Power over Ethernet) detection, link detection, ping tests, and DHCP queries. It can identify network components via LLDP (Link Layer Discovery Protocol), simplifying network analysis and documentation. IEEE compliance testing is carried out using BERT (Bit Error Rate Test), SNR (Signal-to-Noise Ratio), and Delay Skew, thereby verifying cabling quality at high transmission rates up to 10 Gbit/s. Results can be generated directly on the device as a PDF report, facilitating documentation and traceability of tests.

Technology Explained Simply

The technology of the NetXpert XG2 PLUS is based on the combination of cable analysis and active network diagnostics. Cable length and distance to faults are measured using Time Domain Reflectometry (TDR), where signal propagation time is used to determine the position of breaks or short circuits. The BERT function measures bit error rate to evaluate signal quality, while SNR represents noise margin measurement. Delay Skew measures propagation time differences between individual conductors, which is particularly important for high-speed connections to ensure signal integrity. PoE support enables testing of power delivery over the network cable, relevant for installing IP cameras, access points, and other PoE-enabled devices.

Compatibility and Accessories

The device is designed for use with copper cables of Category 6A and fibre optic cables of types OM4 (multimode) and OS2 (singlemode). Compatible modules are Softing part numbers 400982, 400984, 400985, and 400986. These modules are designed for various fibre optic transmission standards such as 10GBASE-LR/LW, 10GBASE-SR/SW, 1000BASE-LX, and 1000BASE-SX. Additionally, various accessory kits are available, including the CableMaster zbh Professional Accessory Kit, Industrial Accessory Kit, NetXpert zbh Installer Accessory Kit, and special SFP modules for multimode and singlemode applications. Combining the device with these accessories extends its functionality for specific use cases.

Mounting and Installation

Installation of the NetXpert XG2 PLUS requires no special mounting. The devices are directly connected to the cables to be tested, with hand units featuring RJ45 and LC connectors. The remote unit is connected at the other end of the cable to enable bidirectional measurements. The devices are equipped with a 6-cell high-power battery, enabling mobile use. Alternatively, power can be supplied via the included power adapters. Operation is performed via the integrated user interface, with results displayed directly on the device and saved as PDF files.

Advantages in Operation

Operation of the NetXpert XG2 PLUS is characterised by the combination of cable analysis and active network diagnostics. The ability to test both copper and fibre optic cables reduces the number of required devices and accelerates the testing process. PDF report generation enables quick documentation and archiving of test results. Support for PoE and LLDP extends functionality in modern networks, while IEEE compliance testing ensures cabling quality. Mobile use via the integrated battery and the option to operate the devices via power adapters offer flexibility for field work.

Scope of Delivery

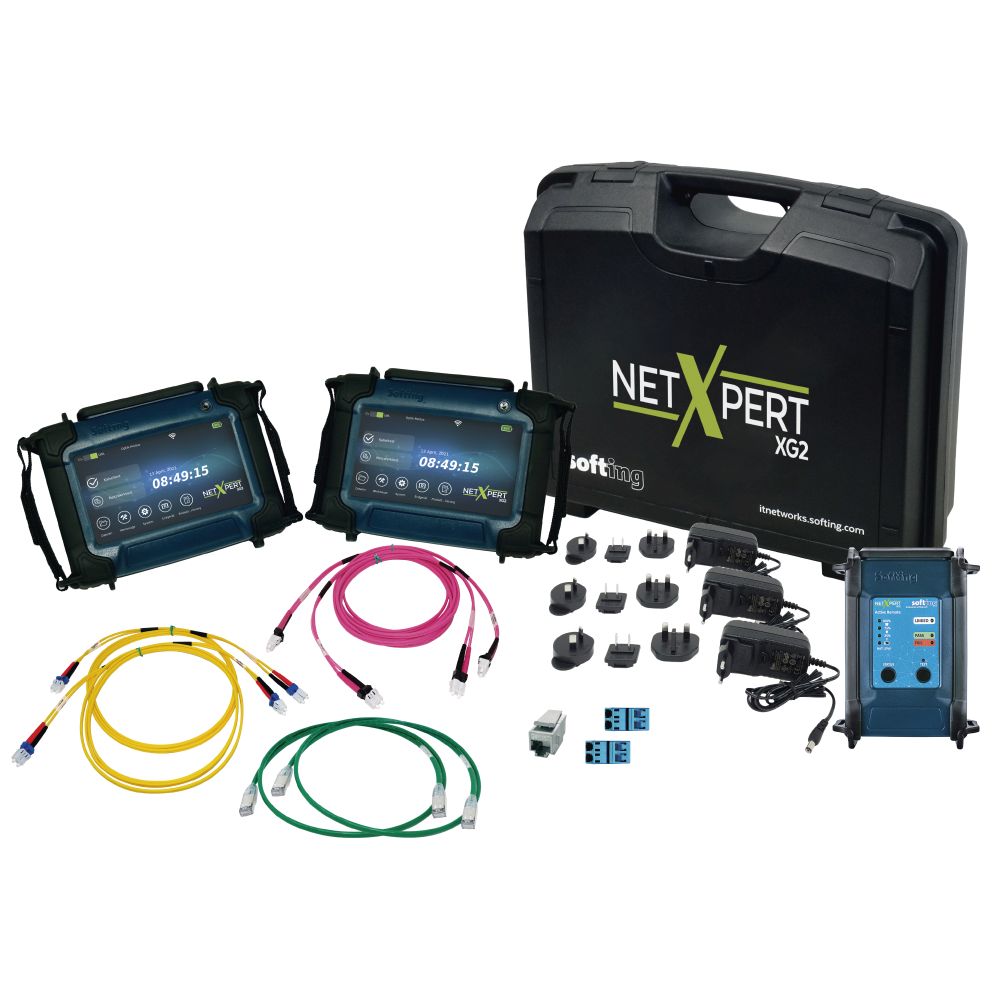

The kit includes 2 x XG hand units for copper and fibre optic, 1 x remote unit (copper only), 2 x RJ45 Cat 6A patch cables, 2 x OM4 LC duplex multimode patch cables, 2 x OS2 LC duplex singlemode patch cables, 3 x power adapters, 1 x USB adapter, copper and fibre optic couplers, 1 x hard-shell case, 4 x upgrade licenses, 1 x 6-cell high-power battery, and a manual.

General
Maximum data transfer rate	10 Gbit/s

---
