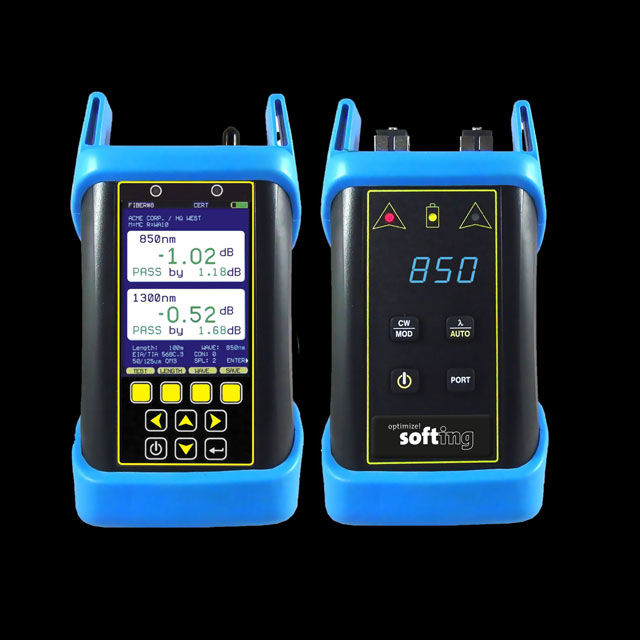

Softing IT Networks FX_700_kit,237114 Softing FiberXpert 700 Loss Test Set

Your rating:
Average rating
product review for Softing IT Networks FX_700_kit,237114 Softing FiberXpert 700 Loss Test Set
( 4.6 / 5 ) 9 ratings
Softing IT Networks FX_700_kit,237114
This image may differ from the desired article.
Softing IT Networks FX_700_kit,237114Softing IT Networks FX_700_kit,237114Softing IT Networks FX_700_kit,237114Softing IT Networks FX_700_kit,237114
1.757,80 EUR
( 2.091,78 EUR incl. VAT )
≈ £1,469.52  |  ≈ $1,931.82
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Softing IT Networks FX_700_kit,237114 Softing FiberXpert 700 Loss Test Set
Datasheet:file_download Download
Lieske Part No.:1890462
Mfg Part No: FX 700 kit,237114
UPC/EAN: 0046382254303
Weight:2 kg

Product information for Softing IT Networks FX_700_kit,237114:

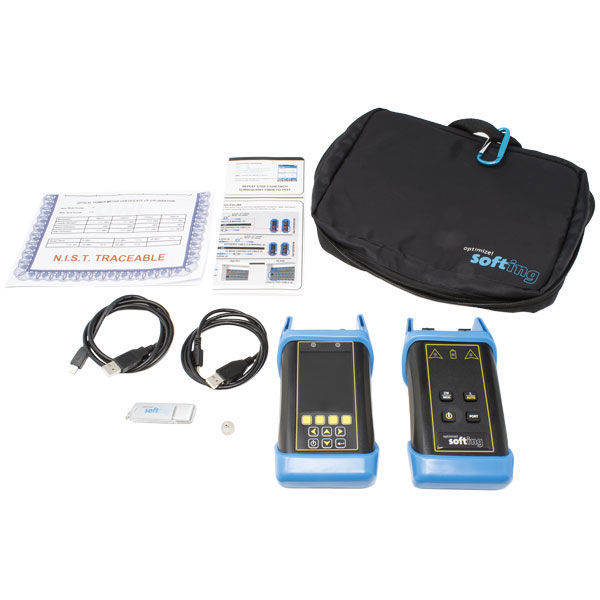

The Softing FiberXpert 700 Loss Test Set Kit is a professional measuring device for determining attenuation in fibre optic links, suitable for both multimode and singlemode systems. It is used for quality control and maintenance of optical transmission links in network and telecommunication infrastructure. The kit includes an attenuation measuring device, a quad light source with wavelengths 850 nm and 1300 nm for multimode, and 1310 nm and 1550 nm for singlemode, a USB cable for data transfer and battery charging, a carrying case, two rubber protective caps, two USB download cables, a USB stick with PC software and product documentation, two connection adapters (1.25 mm ferrule for LC connectors and 2.5 mm ferrule for SC/ST/FC connectors), a NIST calibration certificate, and a quick operating manual.

Applications
This device is used in the installation, commissioning, and maintenance of fibre optic cable networks. It enables precise measurement of optical attenuation in links to verify the performance and integrity of the connection. Applications include telecommunication, data network and IT environments, as well as inspection of fibre optic installations in buildings, data centres, or industrial environments.

Functions and Equipment in Detail

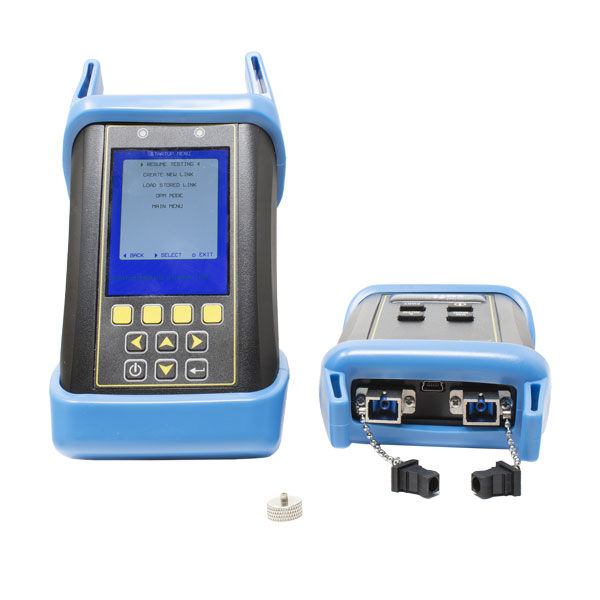

The kit is equipped with an Optical Power Meter that measures received optical power. The quad light source generates light signals at four wavelengths, allowing attenuation to be measured at different frequencies. This is particularly important as attenuation in fibre optic cables is frequency-dependent. The integrated software on the USB stick enables evaluation of measurement results on a PC. The protective caps shield the optical ends of the measuring devices from contamination and damage. The connection adapters ensure compatibility with various connectors, enabling use with different cable types.

Technology Explained Simply
Attenuation measurement is performed by emitting a light signal through the fibre optic link and measuring the received power at the other end. The difference between transmitted and received power yields the attenuation in dB. The quad light source allows measurement at multiple wavelengths, enabling a more comprehensive analysis of the link. Calibration according to NIST standards ensures the accuracy of measurement results. The USB connection serves both for data transfer and charging the integrated battery, allowing mobile use of the device.

Compatibility and Accessories
The device is designed for multimode and singlemode fibre optic cables. The included connection adapters enable connection with LC as well as SC/ST/FC connectors. Suitable accessories include cable kits for multimode SC, multimode LC, singlemode LC, and singlemode SC, as well as a mandrel for testing multimode fibres.

Installation and Mounting
Installation involves connecting the measuring device to the fibre optic link to be tested. The light source is connected at one end of the link, and the attenuation measuring device at the other. Measurement is initiated via the device’s user interface. Results can be transferred to a PC via USB. The carrying case enables mobile use, while the protective caps safeguard the optical ends during transport and installation.

Operational Advantages
The combination of quad light source and Optical Power Meter enables precise and comprehensive attenuation measurement. NIST calibration ensures measurement accuracy. The USB connection simplifies data transfer and battery charging. The included adapters increase compatibility with various cable types. Mobile use, enabled by the integrated battery and carrying case, makes the device suitable for field applications. The software on the USB stick allows structured documentation of measurement results.

General
Attenuation meter1 piece
Quad light source1 piece
Wavelengths850, 1300, 1310, 1550 nm
Optical power meter1 piece
USB cable2 piece
Carry bag1 piece
Protective sleeves2 piece
USB stick1 piece

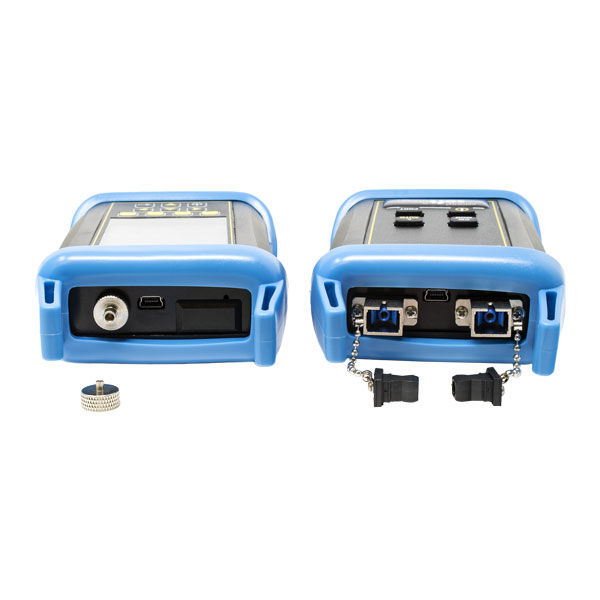

Connector adapter 1.25 mm1 piece
Connector adapter 2.5 mm1 piece
NIST calibration certificate1 piece
Quick start guide1 piece


Product data sheet
Datasheet for Softing IT Networks FX_700_kit,237114, EAN: 0046382254303

Questions & answers

What is the delivery time of Softing IT Networks FX_700_kit,237114 Softing FiberXpert 700 Loss Test Set?

The article Softing IT Networks FX_700_kit,237114 Softing FiberXpert 700 Loss Test Set is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Softing IT Networks FX_700_kit,237114 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Softing IT Networks FX_700_kit,237114 Softing FiberXpert 700 Loss Test Set always at the best possible price. We can give you a discount of 2% on Softing IT Networks FX_700_kit,237114 Softing FiberXpert 700 Loss Test Set if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
