Softing IT Networks FFMINI6S_Kit,228401 Softing, FiberFox Splicer Mini 6+ Kit content_copy

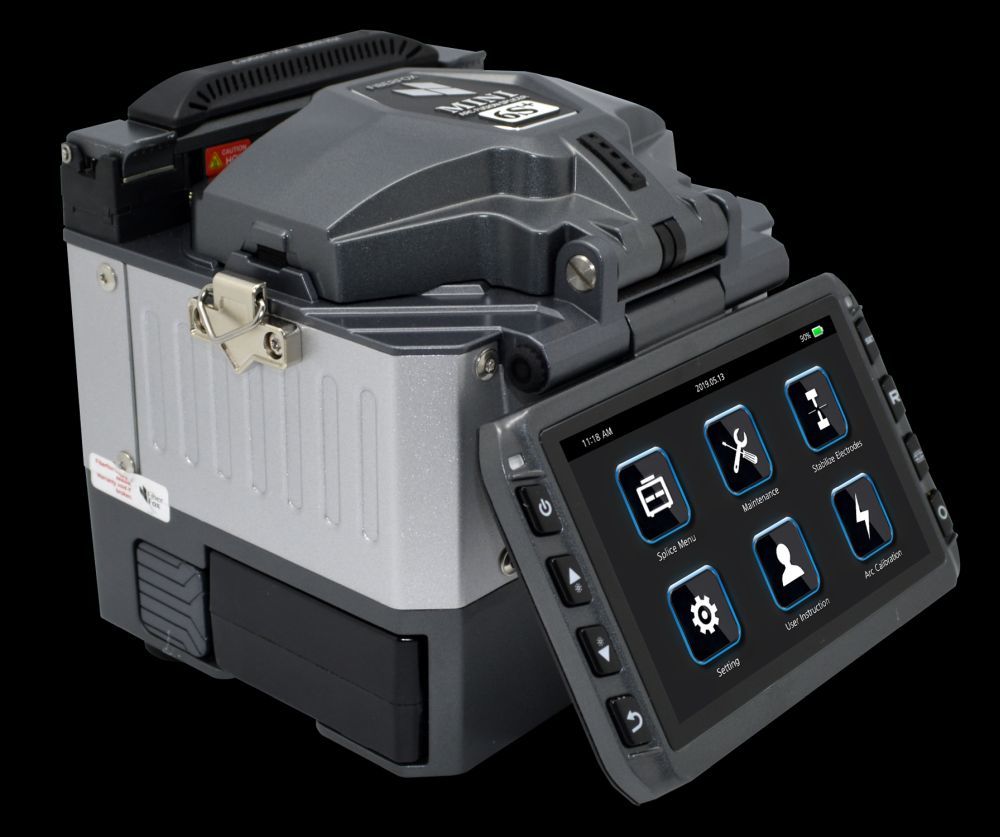

The Softing FiberFox Splice Device Mini 6+ Kit is a compact, professional device for optical fiber connection in fiber optic installations. It is designed for precise and reliable splicing of fiber optic cables and is intended for use cases requiring high accuracy and stability of the connection. The kit includes the Splice Device Mini 6+ as well as all necessary accessories for field use, including a cleaver and cutter device, batteries, chargers, and a hard-shell case for safe transportation.

Applications

The splice device is suitable for all types of fiber optic installations, particularly in telecommunications, building and industrial network cabling, and fiber network infrastructure. The 3-axis core alignment enables precise fiber alignment, which is especially beneficial when dealing with different fiber diameters and challenging conditions such as low lighting or rough environments. The devices are designed for indoor and outdoor use, with robust construction and a hard-shell case providing protection against mechanical stress and environmental influences.

Functions and Equipment in Detail

The kit contains the FiberFox Splice Device Mini 6+, which features 3-axis core alignment to ensure optimal alignment of fiber cores. It includes a cleaver device Mini-60A for precise preparation of fiber ends. The delivery includes two batteries with a capacity of 5200 mAh each, ensuring sufficient operating time. A power supply unit and a cigarette lighter power cable enable power supply from various sources. Additionally, a pair of spare electrodes, interchangeable fiber holders for 250 µm and 900 µm, a splice protection press, a USB cable, and a manual on CD are included. These components ensure complete and independent use of the device on-site.

Technology Explained Simply

The 3-axis core alignment ensures that fibers are precisely aligned in X, Y, and Z directions, resulting in minimal signal loss (Low Loss). The fiber is cut to the correct length using a cleaver device and then positioned in the splice device. The electrical discharge (fusion) permanently connects the fibers. The device's integrated software monitors the splicing process and provides visual feedback on the connection quality. The batteries enable mobile use, while the power supply unit and cigarette lighter power cable offer additional power options.

Compatibility and Accessories

The splice device is designed for standard fiber optic cables and supports common fiber diameters of 250 µm and 900 µm, ensured by the included interchangeable fiber holders. The spare electrodes allow for maintenance and replacement of the splicing unit to maintain performance over time. The splice protection press ensures safe and clean processing of fiber ends. The USB cable enables data transfer and connection to a PC for documentation or software updates.

Installation and Mounting

Installation involves inserting the fiber into the fiber holder, positioning it in the splice device, and executing the splicing process. Preparing the fiber using the cleaver and cutter device is a crucial step to ensure a clean and uniform cut surface. Operation is performed via the device's integrated control interface, with the manual on CD providing additional guidance for handling and maintenance. The device is designed for use by professionals familiar with fiber optic technology.

Operational Advantages

The combination of 3-axis core alignment and mobile power supply enables high precision and flexibility when working in the field. The included batteries and the ability to power the device via cigarette lighter or power supply ensure independent operation. The robust packaging in a hard-shell case protects the device during transport and storage. The comprehensive equipment with spare parts and tools reduces the need for additional purchases and increases on-site efficiency. The devices are designed for professional users who value reliability and quality in fiber connections.
